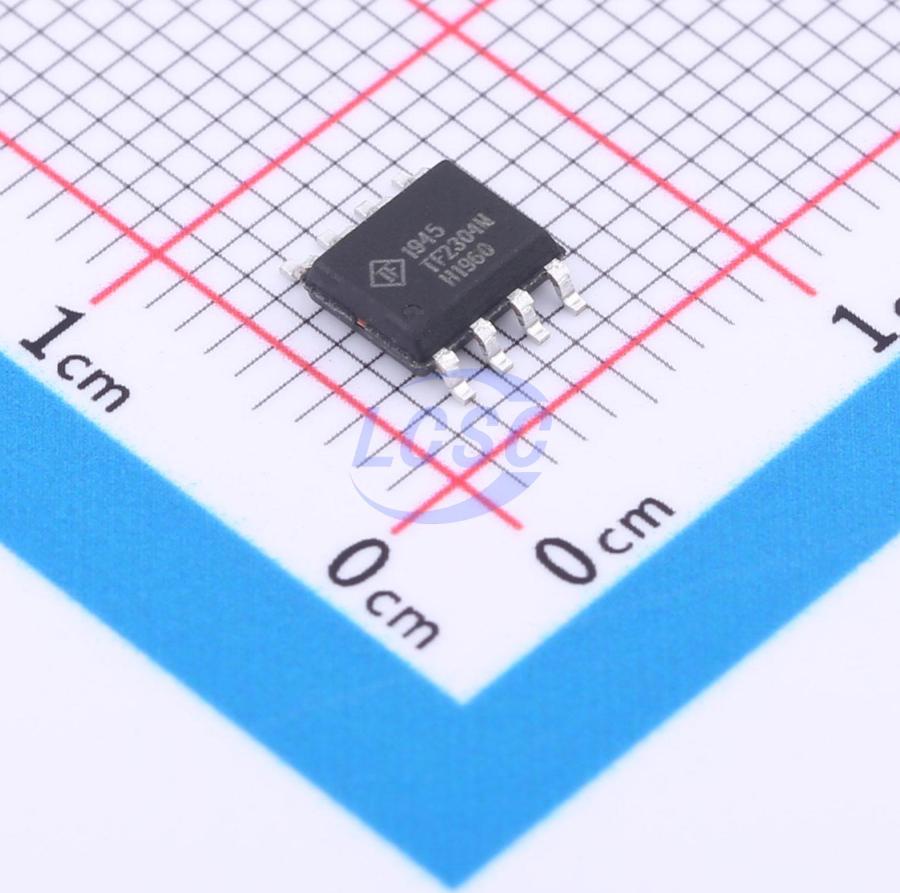

TF2304M-TAH
10V~20V 600mA 290mA SOIC-8 Gate Drivers
Half-Bridge Gate Driver
- Manufacturer
- TFSS
- Manufacturer part #
- TF2304M-TAH
- Store part #
- C2683759
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,624 in stock
#C2683759
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.89 | ₹57.89 |
| 10+ | ₹52.26 | ₹522.60 |
| 30+ | ₹49.32 | ₹1,479.60 |
| 100+ | ₹46.40 | ₹4,640.00 |
| 500+ | ₹40.55 | ₹20,275.00 |
| 1,000+ | ₹39.50 | ₹39,500.00 |
1 × ₹57.89
₹57.89
excl. GST
₹68.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TF2304M-TAH
₹57.89 for 1 + GST
Specifications
- Low Level Delay Time
- 95ns
- High Level Delay Time
- 100ns
- Quiescent Current
- 260uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.456 g
Overview
The TF2304M is a high voltage, high speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half-bridge configuration. High voltage process enables the TF2304M’s high side to switch to 600V in a bootstrap operation. The TF2304M logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices. The driver outputs feature high pulse current buffers designed for minimum driver cross conduction. An internal deadtime of 100ns protects high-voltage MOSFETs from shoot-through. The TF2304M is offered in 8-pin PDIP and SOIC narrow package and operates over an extended -40°C to +125°C temperature range.
Applications
- Motor Controls
- AC-DC Inverters
- DC-DC Converters
- Class D Power Amplifiers
Key features
- Drives two N-channel MOSFETs or IGBTs in a half bridge configuration
- Floating high-side driver in bootstrap operation to 600V
- 290mA source/600mA sink output current capability
- Outputs tolerant to negative transients
- Internal logic and deadtime (100ns) to protect MOSFETs
- Logic input (HIN and LIN) 3.3V capability
- Schmitt triggered logic inputs with internal pull down
- Undervoltage lockout for high and low side drivers
- Extended temperature range: -40°C to +124°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DGD2304S8-13#C460710DIODES · SO-8 | DIODES | SO-8 | 166 | ₹240.23 · 166 in stock | View |
| LF2304NTR#C3655524Littelfuse/IXYS · SOIC-8 | Littelfuse/IXYS | SOIC-8 | 50 | ₹172.03 · 50 in stock | View | |
 | TF2304M-TR#C17701709JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 183 | ₹71.98 · 183 in stock | View |
| SL2003#C20539709Slkor · SOP-8 | Slkor | SOP-8 | 2,369 | ₹41.82 · 2,369 in stock | View | |
 | IRS2304STRPBF-JSM#C17701708JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 3,596 | ₹58.77 · 3,596 in stock | View |
