TIDatasheet (PDF)

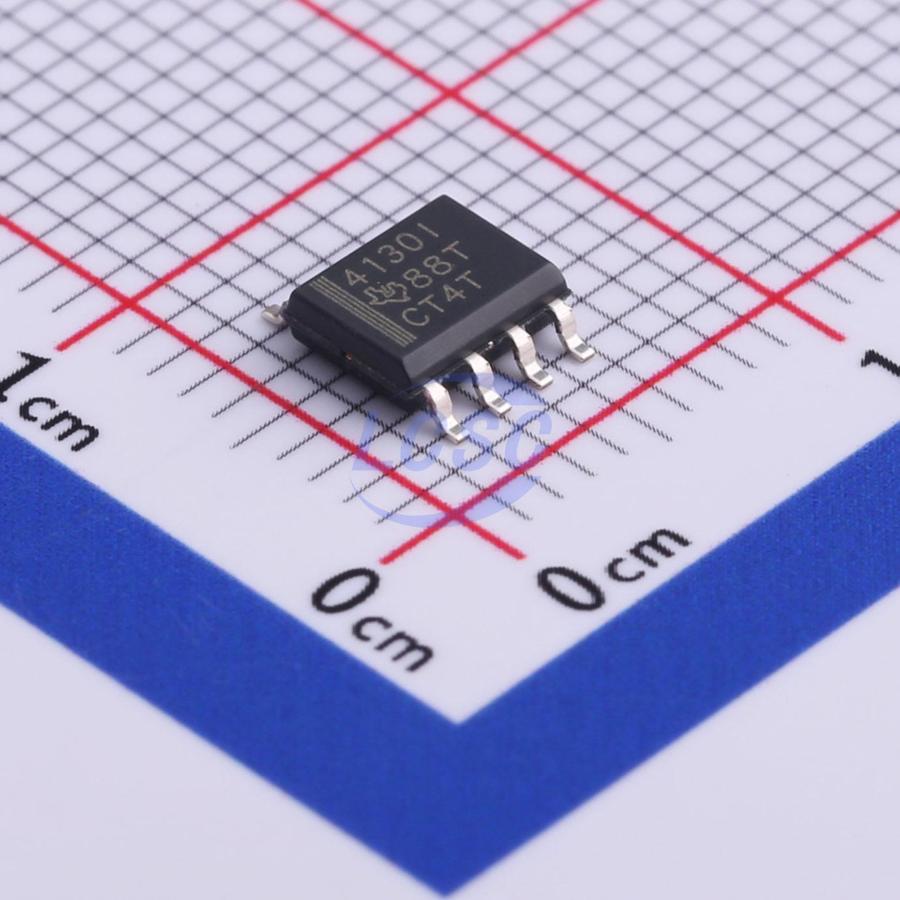

THS4130IDR
85mA 1 200uV 51V/us 95dB 2uA 15mA 225MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
THS413x High-Speed, Low-Noise, Fully-Differential I/O Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- THS4130IDR
- Store part #
- C527506
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,173 in stock
#C527506
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹867.01 | ₹867.01 |
| 10+ | ₹746.86 | ₹7,468.60 |
| 30+ | ₹644.29 | ₹19,328.70 |
| 100+ | ₹583.02 | ₹58,302.00 |
1 × ₹867.01
₹867.01
excl. GST
₹1,023.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THS4130IDR
₹867.01 for 1 + GST
Specifications
- Settling time
- 78ns
- output type
- Differential
- Output Current
- 85mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 51V/us
- Input Offset Current(Ios)
- 500nA
- Input Offset Current Drift (Ios TC)
- 2nA/℃
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 2uA
- Power Supply Rejection Ratio (PSRR)
- 98dB
- Maximum Power Supply Range (Vdd-Vss)
- 30V
- Input Offset Voltage Drift(Vos TC)
- 4.5uV/℃
- Quiescent Current
- 15mA
- Gain Bandwidth Product
- 225MHz
- Features
- Single-ended to differential conversion;Integrated ADC driver;Enable/shutdown function;Adjustable output common-mode voltage;Built-in signal filtering
- Dual Supply
- -15V~-2.5V;2.5V~15V
- Single Supply
- 5V~30V
- Noise density(eN)
- 1.3nV/√Hz@10kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
High Performance 150 MHz, -3 dB Bandwidth (VCC = ±15 V) 51 V/µs Slew Rate –100 dB Third Harmonic Distortion at 250 kHz Low Noise – 1.3 nV/√Hz Input-Referred Noise Differential-Input/Differential-Output Balanced Outputs Reject Common-Mode Noise Reduced Second-Harmonic Distortion Due to Differential Output Wide Power-Supply Range – VCC = 5 V Single Supply to ±15 V Dual Supply ICC(SD) = 860 µA in Shutdown Mode (THS4130) The THS413x is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion.
Applications
- Single-Ended To Differential Conversion
- Differential ADC Driver
- Differential Antialiasing
- Differential Transmitter And Receiver
- Output Level Shifter
Key features
- 150 MHz, -3 dB Bandwidth (VCC = ±15 V)
- 51 V/µs Slew Rate
- –100 dB Third Harmonic Distortion at 250 kHz
- Low Noise – 1.3 nV/√Hz Input-Referred Noise
- Differential-Input/Differential-Output
- Balanced Outputs Reject Common-Mode Noise
- Reduced Second-Harmonic Distortion Due to Differential Output
- Wide Power-Supply Range – VCC = 5 V Single Supply to ±15 V Dual Supply ICC(SD) = 860 µA in Shutdown Mode (THS4130)
