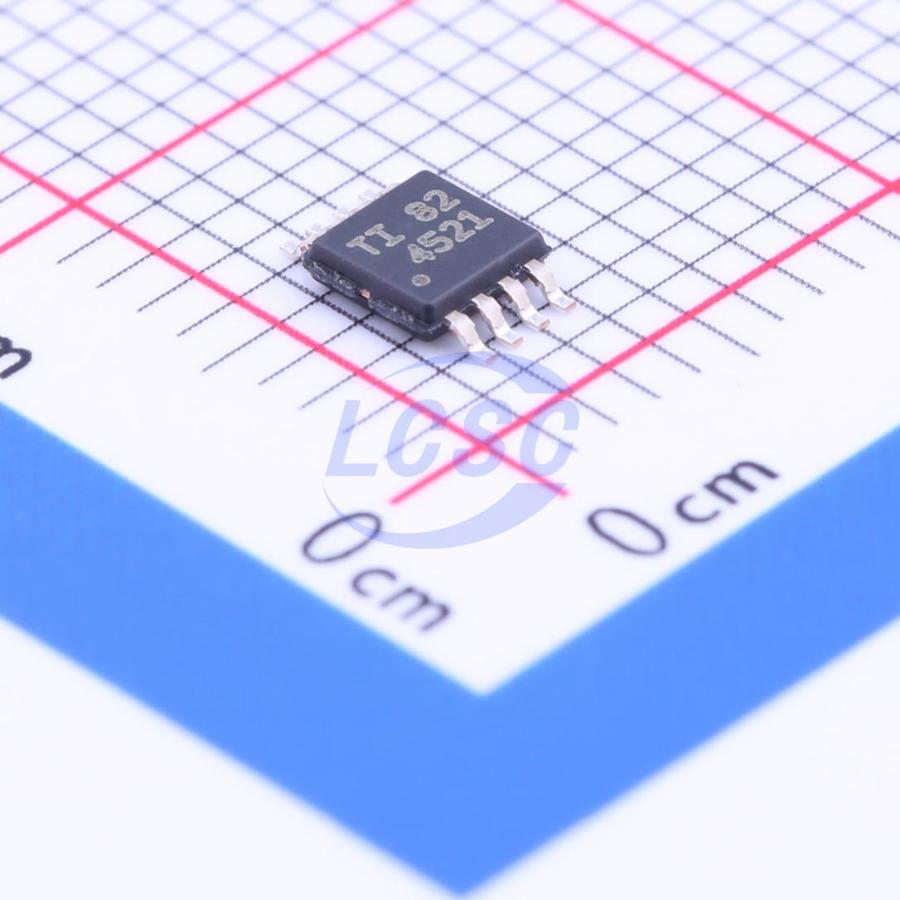

THS4521IDGKR
35mA 1 2mV 490V/us 100dB 950nA 1.14mA 95MHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
Very Low Power, Negative Rail Input, Rail-To-Rail Output, Fully Differential Amplifier
- Manufacturer
- TI
- Manufacturer part #
- THS4521IDGKR
- Store part #
- C170157
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,781 in stock
#C170157
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹178.83 | ₹178.83 |
| 10+ | ₹149.71 | ₹1,497.10 |
| 30+ | ₹133.64 | ₹4,009.20 |
| 100+ | ₹115.38 | ₹11,538.00 |
| 500+ | ₹107.33 | ₹53,665.00 |
| 1,000+ | ₹103.64 | ₹1,03,640.00 |
1 × ₹178.83
₹178.83
excl. GST
₹211.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THS4521IDGKR
₹178.83 for 1 + GST
Specifications
- Settling time
- 10ns
- output type
- Differential
- Output Current
- 35mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 490V/us
- Input Offset Current(Ios)
- 215nA
- Input Offset Current Drift (Ios TC)
- 600pA/℃
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 950nA
- Power Supply Rejection Ratio (PSRR)
- 100dB
- Maximum Power Supply Range (Vdd-Vss)
- 5.5V
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 1.14mA
- Gain Bandwidth Product
- 95MHz
- Features
- Single-ended to differential conversion;Enable/shutdown function;Integrated ADC driver;Adjustable output common-mode voltage
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5.4V
- Noise density(eN)
- 4.6nV/√Hz@100kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
The THS4521, THS4522, and THS4524 family of devices are very low-power, fully differential amplifiers with rail-to-rail output and an input common-mode range that includes the negative rail. These amplifiers are designed for low-power data acquisition systems and high-density applications where power dissipation is a critical parameter, and provide exceptional performance in audio applications. The family includes single FDA (THS4521), dual FDA (THS4522), and quad FDA (THS4524) versions.
Applications
- Low-Power SAR and ΔΣ ADC Drivers
- Low-Power Differential Drivers
- Low-Power Differential Signal Conditioning
- Low-Power, High-Performance Differential Audio Amplifiers
Key features
- Fully Differential Architecture
- Bandwidth: 145 MHz (A_V = 1 V/V)
- Slew Rate: 490 V/μs
- HD_2: –133 dBc at 10 kHz (1 VRMS, R_L = 1 kΩ)
- HD_3: –141 dBc at 10 kHz (1 V_RMS, R_L = 1 kΩ)
- Input Voltage Noise: 4.6 nV/√Hz (f = 100 kHz)
- THD+N –112 dBc (0.00025%) at 1 kHz (22-kHz BW, G = 1, 5 V_P-P)
- Open-Loop Gain: 119 dB (DC)
- NRI—Negative Rail Input
- RRO—Rail-to-Rail Output
- Output Common-Mode Control (with Low Offset)
- Power Supply:
- Voltage: +2.5 V (±1.25 V) to +5.5 V (±2.75 V)
- Current: 1.14 mA/ch
- Power-Down Capability: 20 μA (typical)
