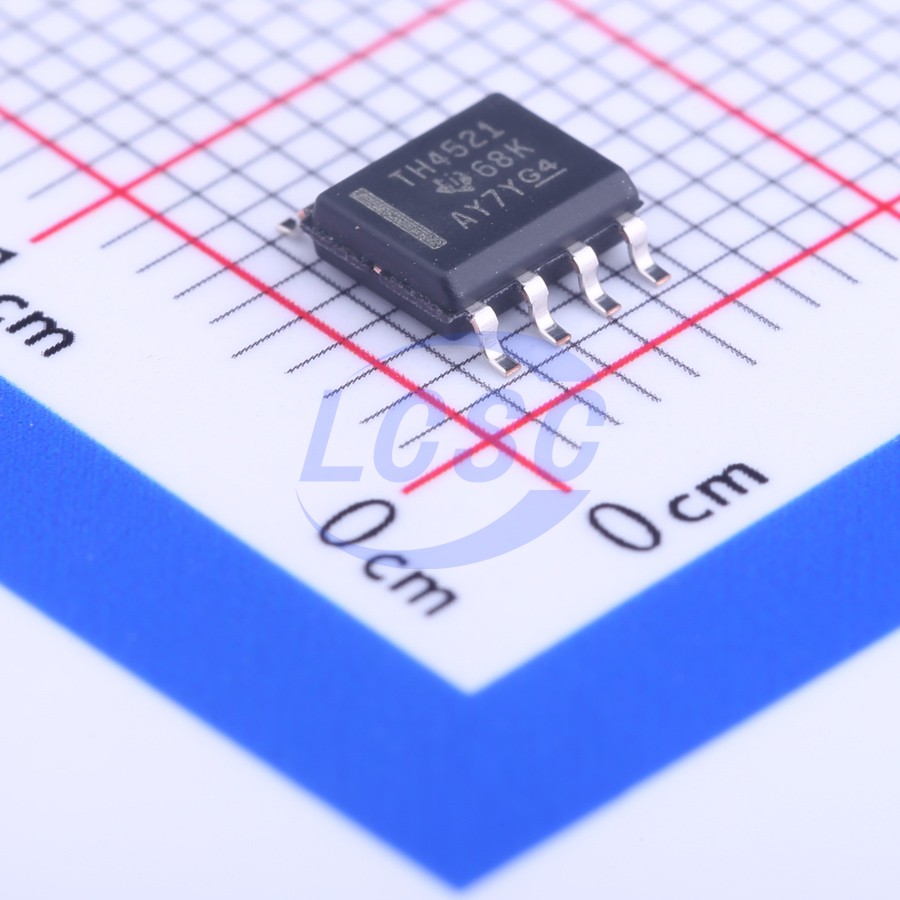

THS4521IDR
55mA 1 200uV 490V/us 100dB 700nA 1.14mA 95MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Very Low Power, Negative Rail Input, Rail-to-Rail Output, Fully Differential Amplifier
- Manufacturer
- TI
- Manufacturer part #
- THS4521IDR
- Store part #
- C16092
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,554 in stock
#C16092
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹233.30 | ₹233.30 |
| 10+ | ₹197.31 | ₹1,973.10 |
| 30+ | ₹174.76 | ₹5,242.80 |
| 100+ | ₹151.77 | ₹15,177.00 |
| 500+ | ₹141.38 | ₹70,690.00 |
| 1,000+ | ₹136.81 | ₹1,36,810.00 |
1 × ₹233.30
₹233.30
excl. GST
₹275.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THS4521IDR
₹233.30 for 1 + GST
Specifications
- Settling time
- 13ns
- output type
- Differential
- Output Current
- 55mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 490V/us
- Input Offset Current(Ios)
- 215nA
- Input Offset Current Drift (Ios TC)
- 600pA/℃
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 700nA
- Power Supply Rejection Ratio (PSRR)
- 100dB
- Maximum Power Supply Range (Vdd-Vss)
- 5.5V
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 1.14mA
- Gain Bandwidth Product
- 95MHz
- Features
- Single-ended to differential conversion;Enable/shutdown function;Integrated ADC driver;Adjustable output common-mode voltage
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
- Noise density(eN)
- 4.6nV/√Hz@100kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
Applications
- Low-power SAR and ΔΣ ADC driver
- Low-power differential driver
- Low-power differential signal conditioning
- Low-power high-performance differential audio amplifier
Key features
- Fully differential architecture
- Bandwidth: 145 MHz
- Slew rate: 490 V/μs
- HD2: -133 dBc at 10 kHz (1 VRMS, RL=1 kΩ)
- HD3: -140 dBc at 10 kHz (1 VRMS, RL=1 kΩ)
- Input voltage noise: 4.6 nV/√Hz (f=100 kHz)
- THD+N: -112 dBc
- Open-loop gain: 119 dB
- NRI — negative rail input
- RRO — rail-to-rail output
- Output common-mode control (with low offset and drift)
- Power supply:
- Voltage: +2.5 V (±1.25 V) to +5.5 V (±2.75 V)
- Current: 1.14 mA/channel
- Shutdown: 20 μA (typical)
