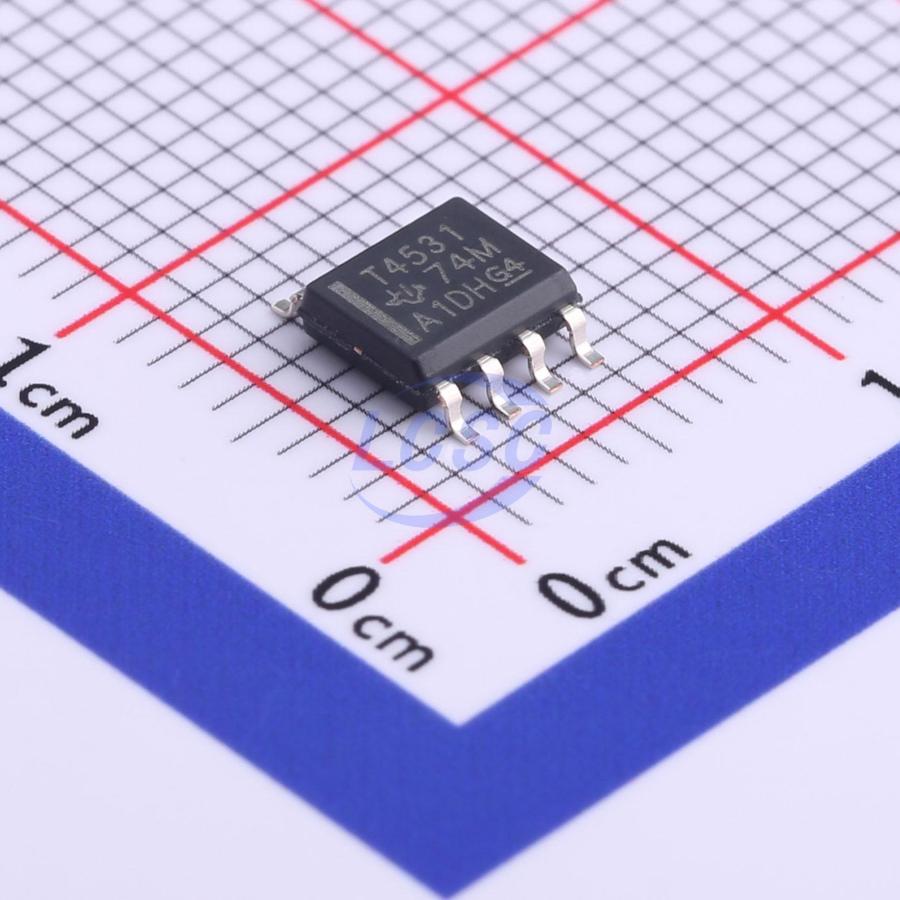

THS4531IDR

15mA 1 200uV 200V/us 90dB 220nA 230uA 27MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Ultra Low Power, Rail-to-Rail Output, Fully-Differential Amplifier

Manufacturer: TI
Manufacturer part #: THS4531IDR
Store part #: C705347
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,489 in stock

#C705347

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹399.18	₹399.18
10+	₹341.60	₹3,416.00
30+	₹305.52	₹9,165.60
100+	₹268.58	₹26,858.00
500+	₹251.86	₹1,25,930.00
1,000+	₹244.69	₹2,44,690.00

Quantity (min 1)

1 × ₹399.18

₹399.18

excl. GST

₹471.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

THS4531IDR

₹399.18 for 1 + GST

Specifications

Settling time: 60ns
output type: Differential
Output Current: 15mA
Number of Channels: 1
Vos - Input Offset Voltage: 200uV
Slew Rate: 200V/us
Input Offset Current(Ios): 5nA
Input Offset Current Drift (Ios TC): 0.05nA/℃
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 220nA
Power Supply Rejection Ratio (PSRR): 108dB
Maximum Power Supply Range (Vdd-Vss): 5.5V
Input Offset Voltage Drift(Vos TC): 1.7uV/℃
Quiescent Current: 230uA
Gain Bandwidth Product: 27MHz
Features: Single-ended to differential conversion;Enable/shutdown function;Adjustable output common-mode voltage;Integrated ADC driver
Rail to Rail: Rail-to-rail output
Single Supply: 2.5V~5.5V
Noise density(eN): 10nV/√Hz@1kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.135 g

Overview

Ultra Low Power: Voltage: 2.5 V to 5.5 V Current: 250 μA Power-Down Mode: 0.5 μA (typical) Fully-Differential Architecture Bandwidth: 36 MHz • Slew Rate: 200 V/μs THD: –120 dBc at 1 kHz (1 V_RMS, R_L = 2 kΩ) Input Voltage Noise: 10 nV/√Hz (f = 1 kHz) High DC Accuracy: – V_OS Drift: ±4 μV/°C (-40°C to +125°C) A_OL: 114 dB Rail-to-Rail Output (RRO) Negative Rail Input (NRI) Output Common-Mode Control

Applications

Low-Power SAR, ΔΣ ADC Driver
Low Power, High Performance: Differential to Differential Amplifier
Single-Ended to Differential Amplifier
Low-Power, Wide-Bandwidth Differential Driver
Low-Power, Wide-Bandwidth Differential Signal Conditioning
High Channel Count and Power Dense Systems

Key features

Ultra Low Power
Fully-Differential Architecture
High DC Accuracy
Rail-to-Rail Output (RRO)
Negative Rail Input (NRI)
Output Common-Mode Control
