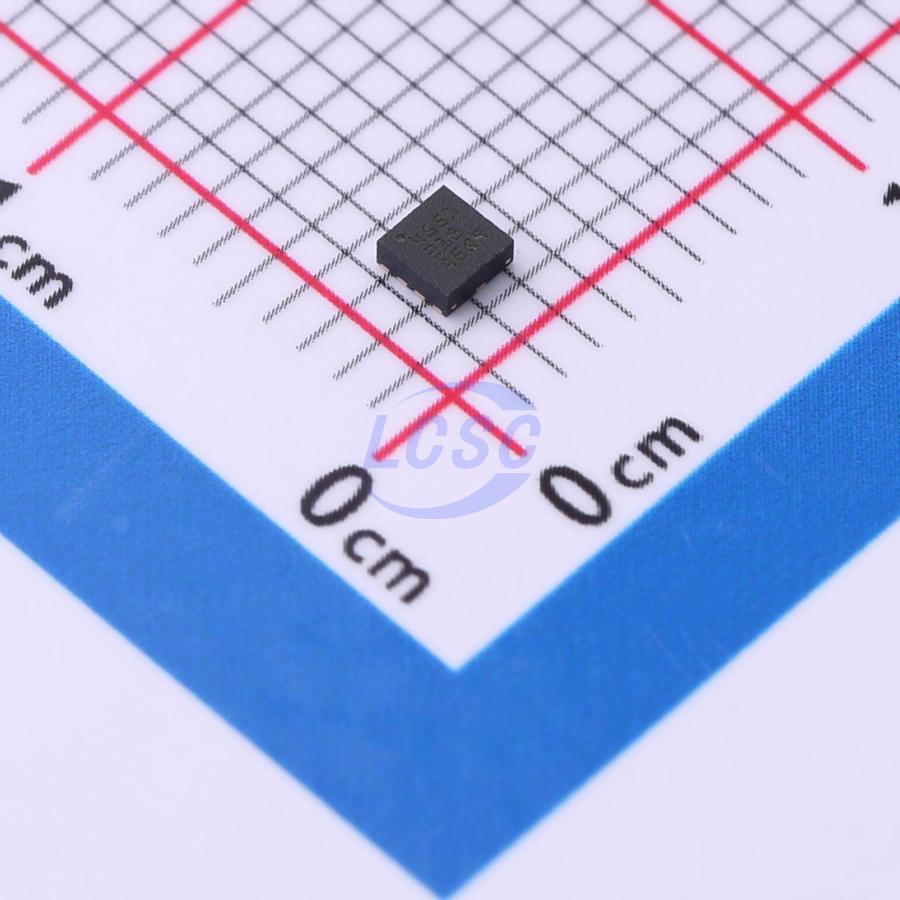

THS4551IRUNR

65mA 1 175uV 220V/us 93dB 1.37uA 1.37mA 135MHz Rail-to-Rail Input, Rail-to-Rail Output QFN-10(2x2) Instrumentation, Op Amps, Buffer Amps RoHS

QFN-10(2x2)ROHS3 CompliantActive

Low-noise precision fully differential amplifier

Manufacturer: TI
Manufacturer part #: THS4551IRUNR
Store part #: C2060364
Package / case: QFN-10(2x2)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,567 in stock

#C2060364

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹629.42	₹629.42
10+	₹536.62	₹5,366.20
30+	₹481.33	₹14,439.90
100+	₹425.61	₹42,561.00
500+	₹399.81	₹1,99,905.00
1,000+	₹388.33	₹3,88,330.00

Quantity (min 1)

1 × ₹629.42

₹629.42

excl. GST

₹742.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

THS4551IRUNR

₹629.42 for 1 + GST

Specifications

Settling time: 50ns
output type: Differential
Output Current: 65mA
Number of Channels: 1
Vos - Input Offset Voltage: 175uV
Slew Rate: 220V/us
Input Offset Current(Ios): 50nA
Input Offset Current Drift (Ios TC): 120pA/℃
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 93dB
Ib - Input Bias Current: 1.37uA
Power Supply Rejection Ratio (PSRR): 93dB
Maximum Power Supply Range (Vdd-Vss): 5.4V
Input Offset Voltage Drift(Vos TC): 0.45uV/℃
Quiescent Current: 1.37mA
Gain Bandwidth Product: 135MHz
Features: Single-ended to differential conversion;Integrated ADC driver;Capacitive load driving;Adjustable output common-mode voltage;Enable/shutdown function
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~5.4V
Noise density(eN): 3.3nV/√Hz@500Hz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The THS4551 fully differential amplifier provides a simple interface between a single-ended source and a differential output, meeting the requirements of various high-precision analog-to-digital converters (ADCs). This device combines excellent DC accuracy, low noise, and robust capacitive load driving capability, making it ideal for data acquisition systems with high-precision requirements. Meanwhile, when the amplifier works in conjunction with the ADC, excellent signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR) can be achieved. The THS4551 has the required negative power supply rail input, which can be used to connect DC-coupled, ground-centered source signals to single-supply differential input ADCs. The device has ultra-low DC error and drift, meeting the input requirements of emerging 16- to 20-bit successive approximation register (SAR) ADCs. With the ADC common-mode input requirements ranging from 0.7V to over 3.0V, the wide-range output common-mode control supports the ADC to operate with a power supply from 1.8V to 5V. The THS4551 device is rated to operate over a wide temperature range from –40°C to +125°C and is available in an 8-pin very thin shrink small outline package (VSSOP), a 16-pin very thin quad flat no-lead (VQFN) package, and a 10-pin thin quad flat no-lead (WQFN) package.
