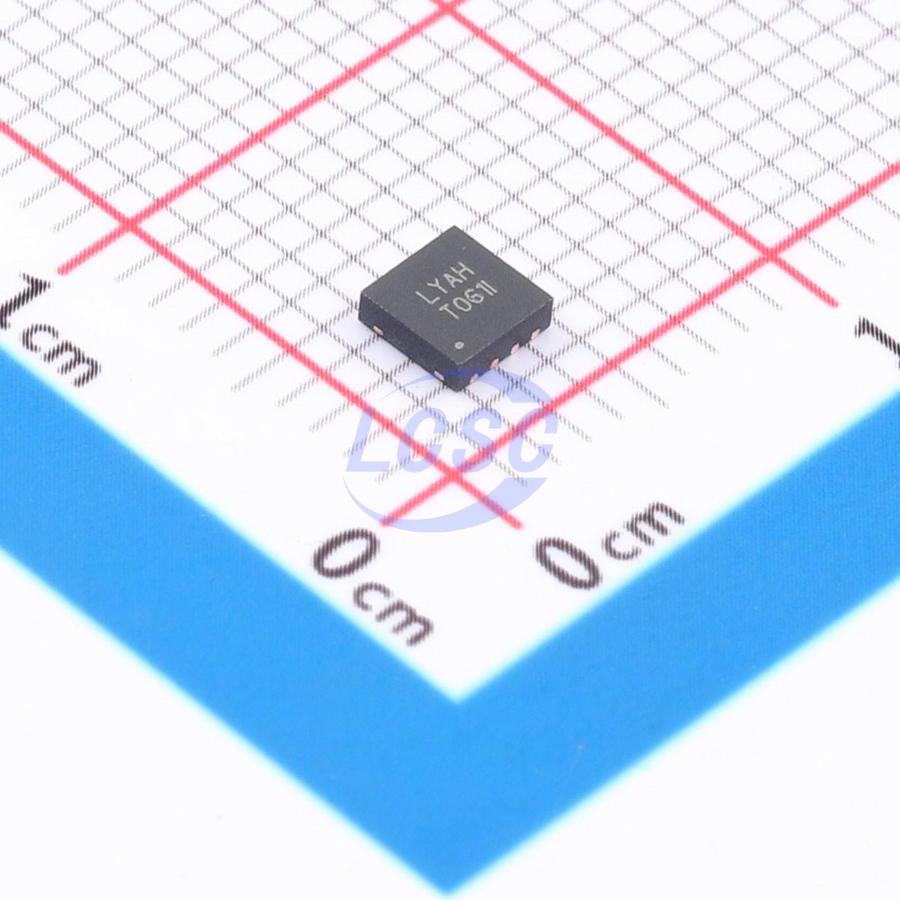

TL061IDQ3/TR-HG
1 3mV 5V/us 84dB 3pA 200uA 2MHz DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps
DFN-8(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL061IDQ3/TR-HG
- Store part #
- C54140476
- Package / case
- DFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C54140476
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.44 | ₹127.20 |
| 50+ | ₹20.10 | ₹1,005.00 |
| 150+ | ₹17.81 | ₹2,671.50 |
| 500+ | ₹14.95 | ₹7,475.00 |
| 2,500+ | ₹13.68 | ₹34,200.00 |
| 5,000+ | ₹12.93 | ₹64,650.00 |
5 × ₹25.44
₹127.20
excl. GST
₹150.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TL061IDQ3/TR-HG
₹127.20 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Ib - Input Bias Current
- 3pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 200uA
- Gain Bandwidth Product
- 2MHz
- Input Voltage Noise Density
- 47nV/√Hz@1kHz
- Dual Supply
- -15V~-3V;3V~15V
- Single Supply
- 6V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
