UMW

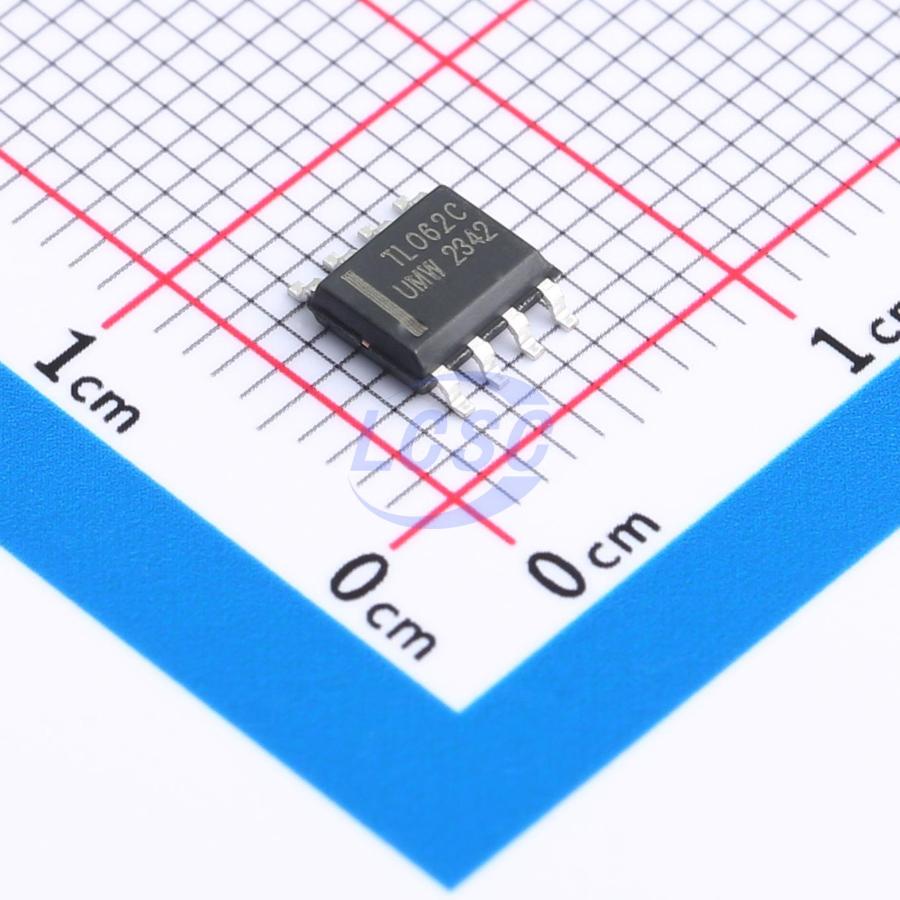

TL062CDR(UMW)

2 3mV 5V/us 3pA 84dB 200uA 2MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Low power J - FET input operational amplifier

Manufacturer: UMW
Manufacturer part #: TL062CDR(UMW)
Store part #: C18212284
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,290 in stock

#C18212284

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.27	₹106.35
50+	₹16.60	₹830.00
150+	₹14.61	₹2,191.50
500+	₹12.12	₹6,060.00
2,500+	₹11.01	₹27,525.00
5,000+	₹10.33	₹51,650.00

Quantity (min 5, multiples of 5)

5 × ₹21.27

₹106.35

excl. GST

₹125.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TL062CDR(UMW)

₹106.35 for 5 + GST

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 5V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 3pA
Common Mode Rejection Ratio(CMRR): 84dB
Input Offset Voltage Drift(Vos TC): 10uV/℃
Quiescent Current: 200uA
Gain Bandwidth Product: 2MHz
Features: Short-Circuit Protection
Input Voltage Noise Density: 47nV/√Hz@1kHz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.179 g

Overview

These J-FET input op-amps are designed for low-power applications, featuring high input impedance, low input bias current, and low input offset current. Advanced design techniques ensure higher slew rate, gain-bandwidth product, and output swing. Available in plastic DIP and SOP packages for commercial and automotive equipment.
