TIDatasheet (PDF)

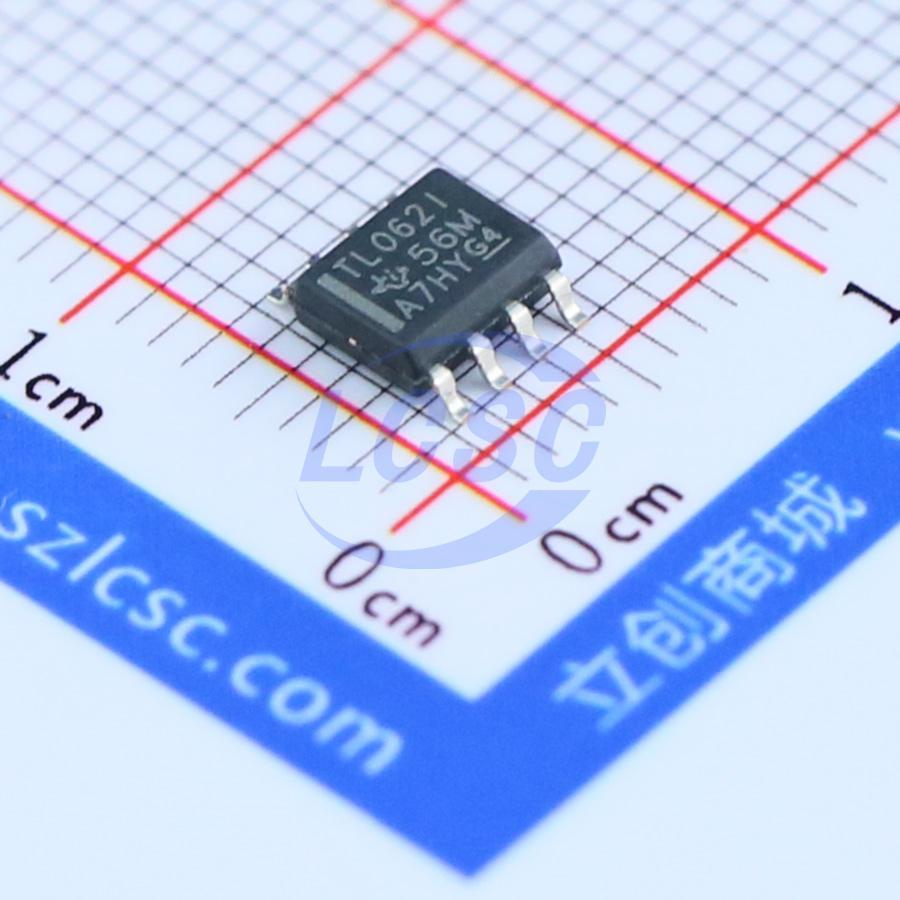

TL062IDR
2 3mV 3.5V/us 86dB 30pA 250uA 1MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
TLo6xx Low-Power JFET-Input Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL062IDR
- Store part #
- C6957
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,065 in stock
#C6957
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.93 | ₹154.65 |
| 50+ | ₹24.29 | ₹1,214.50 |
| 150+ | ₹21.45 | ₹3,217.50 |
| 500+ | ₹17.89 | ₹8,945.00 |
| 2,500+ | ₹16.30 | ₹40,750.00 |
| 5,000+ | ₹15.35 | ₹76,750.00 |
5 × ₹30.93
₹154.65
excl. GST
₹182.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL062IDR
₹154.65 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 3.5V/us
- Input Offset Current(Ios)
- 100uA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 250uA
- Gain Bandwidth Product
- 1MHz
- Features
- Output short-circuit protection;Built-in compensation;Latch-up suppression;EMI filtering/RF suppression
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.257 g
Overview
The TL06x (TL061, TL062, and TL064) family of general-purpose op amps mirrors the TL07x and TL08x op amp families at lower power consumption. These devices deliver exceptional value for cost-sensitive applications, featuring high input impedance, wide bandwidth, high slew rate, and low input offset voltage and input bias current. High ESD (1.5kV, HBM), integrated EMI and RF filters, and a wide operating temperature range enable the TL06x devices for use in demanding, harsh-environment applications.
Applications
- Tablets
- White goods
- Personal electronics
- Computers
Key features
- Ultra-low power consumption, typical supply current: 200 μA (per amplifier)
- Wide common-mode and differential-mode voltage range
- Low input bias and offset current
- Common-mode input voltage range includes Vcc+
- Output short-circuit protection
- High input impedance: JFET input stage
- Internal frequency compensation
- Latch-up free operation
- High slew rate: 3.5 V/μs typical
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL062CM/TR#C2835198HGSEMI · SOP-8 | HGSEMI | SOP-8 | 390 | ₹14.49 · 390 in stock | View |
 | TL062IM/TR#C7432346HGSEMI · SOP-8 | HGSEMI | SOP-8 | 20 | ₹15.23 · 20 in stock | View |
