STDatasheet (PDF)

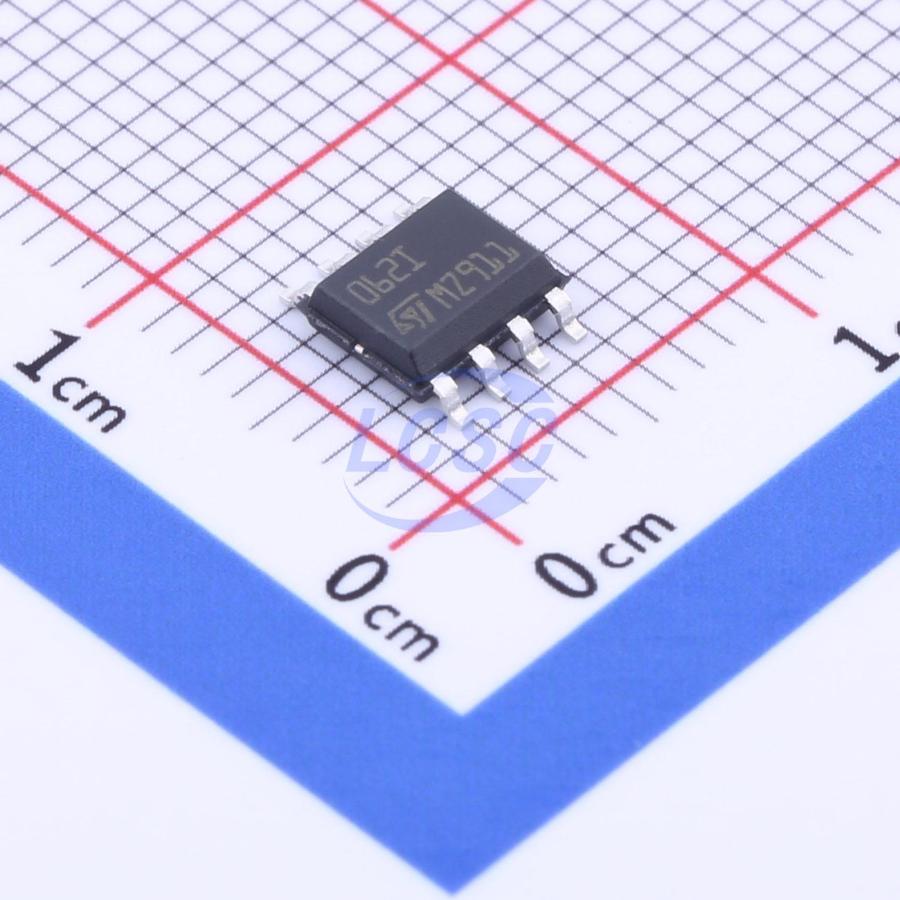

TL062IDT
2 3mV 3.5V/us 86dB 30pA 200uA 1MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Low-Power JFET Dual Operational Amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TL062IDT
- Store part #
- C672379
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,825 in stock
#C672379
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.51 | ₹187.55 |
| 50+ | ₹29.90 | ₹1,495.00 |
| 150+ | ₹26.63 | ₹3,994.50 |
| 500+ | ₹22.57 | ₹11,285.00 |
| 2,500+ | ₹18.46 | ₹46,150.00 |
| 5,000+ | ₹17.37 | ₹86,850.00 |
5 × ₹37.51
₹187.55
excl. GST
₹221.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL062IDT
₹187.55 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 3.5V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 200uA
- Gain Bandwidth Product
- 1MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 42nV/√Hz@1kHz
- Single Supply
- 6V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The TL062, TL062A and TL062B devices are high-speed JFET input single operational amplifiers. Each of these JFET input operational amplifiers incorporates well matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and a low offset voltage temperature coefficient.
Key features
- Very low power consumption: 200 μA
- Wide common-mode (up to VCC+) and differential voltage ranges
- Low input bias and offset currents
- Output short-circuit protection
- High input impedance JFET input stage
- Internal frequency compensation
- Latch up free operation
- High slew rate: 3.5 V/µs
