STDatasheet (PDF)

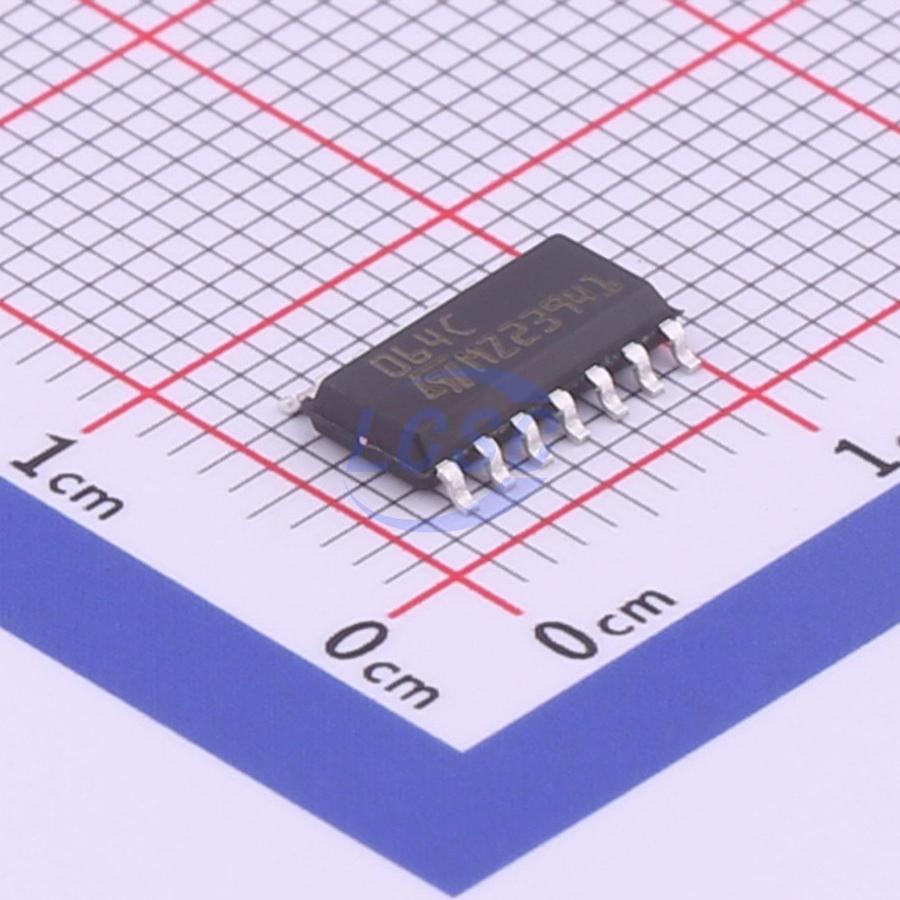

TL064CDT
Four channels 3mV 3.5V/us 86dB 30pA 200uA 1MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Low power JFET quad operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TL064CDT
- Store part #
- C6959
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,195 in stock
#C6959
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.36 | ₹221.80 |
| 50+ | ₹34.38 | ₹1,719.00 |
| 150+ | ₹30.11 | ₹4,516.50 |
| 500+ | ₹24.78 | ₹12,390.00 |
| 2,500+ | ₹22.41 | ₹56,025.00 |
| 5,000+ | ₹20.98 | ₹1,04,900.00 |
5 × ₹44.36
₹221.80
excl. GST
₹261.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL064CDT
₹221.80 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 3.5V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 200uA
- Gain Bandwidth Product
- 1MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 42nV/√Hz@1kHz
- Single Supply
- 6V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.317 g
Overview
The TL064, TL064A and TL064B are high-speed JFET input single operational amplifiers. Each of these JFET input operational amplifiers incorporates well matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Key features
- Very low power consumption: 200 μA
- Wide common-mode (up to VCC+) and differential voltage ranges
- Low input bias and offset currents
- Output short-circuit protection
- High input impedance JFET input stage
- Internal frequency compensation
- Latch up free operation
- High slew rate: 3.5 V/μs
