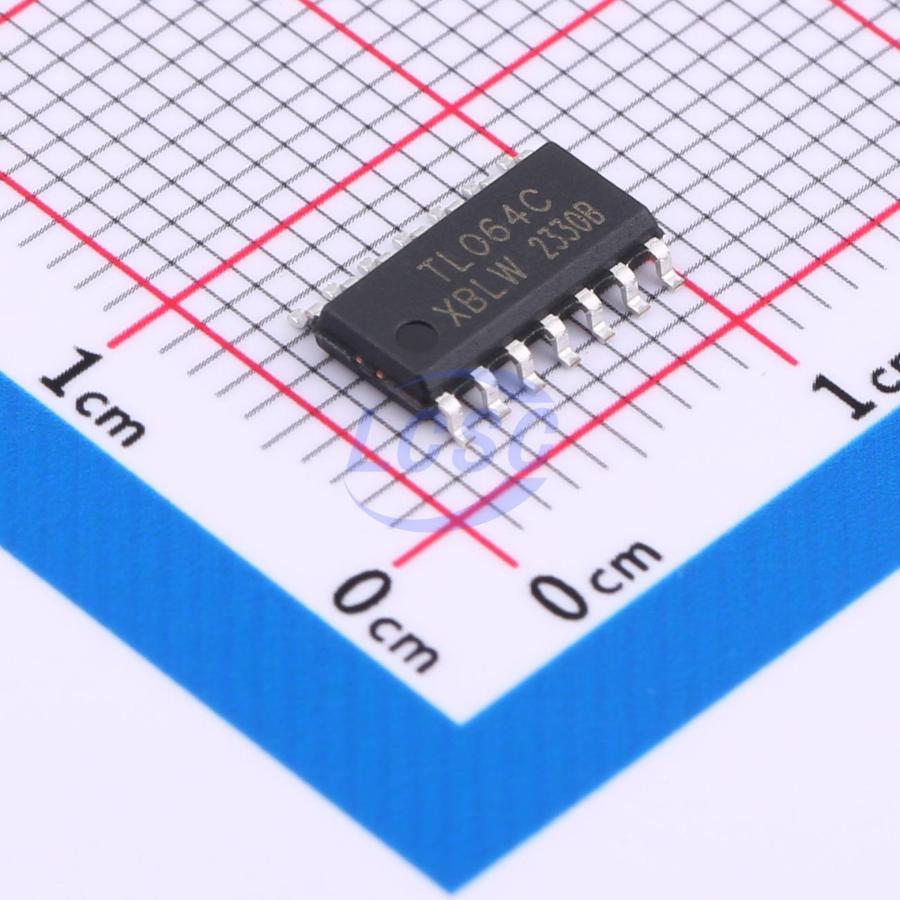

TL064CDTR(XBLW)
60mA 4 15mV 13V/us 75dB 20nA 1.4mA 4MHz SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
J-FET Quad-channel Operational Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- TL064CDTR(XBLW)
- Store part #
- C19267466
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,180 in stock
#C19267466
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.56 | ₹152.80 |
| 50+ | ₹24.00 | ₹1,200.00 |
| 150+ | ₹21.19 | ₹3,178.50 |
| 500+ | ₹17.68 | ₹8,840.00 |
| 2,500+ | ₹16.11 | ₹40,275.00 |
| 5,000+ | ₹15.17 | ₹75,850.00 |
5 × ₹30.56
₹152.80
excl. GST
₹180.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL064CDTR(XBLW)
₹152.80 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 15mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 4pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 20nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 4MHz
- Features
- Built-in compensation
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.296 g
Overview
Consisted of high voltage J- FET and bipolar transistors, the TL064 is a high speed J- FET input quad- channel operational amplifier, featured with high slew rate, low input offset and bias current and low offset voltage temperature rate.
Applications
- Battery test equipment
- Pro audio mixers
- Single phase online UPS
- Solar energy: string and central inverter
- Three phase UPS
- Motor drives: AC and servo drive control and power stage modules
Key features
- Wide Common- Mode And Differential Voltage Ranges
- Low Input Bias And Offset Currents
- Output Short- Circuit Protection
- High Input Impedance
- Internal Frequency Compensation
- Latch- up- free operation
- High Slew Rate: 16V/us
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL074CDTR(XBLW)#C19267469XBLW · SOP-14 | XBLW | SOP-14 | 2,485 | ₹22.08 · 2,485 in stock | View |
 | TL084CDTR(XBLW)#C18723618XBLW · SOP-14 | XBLW | SOP-14 | 2,230 | ₹26.53 · 2,230 in stock | View |
