XBLWDatasheet (PDF)

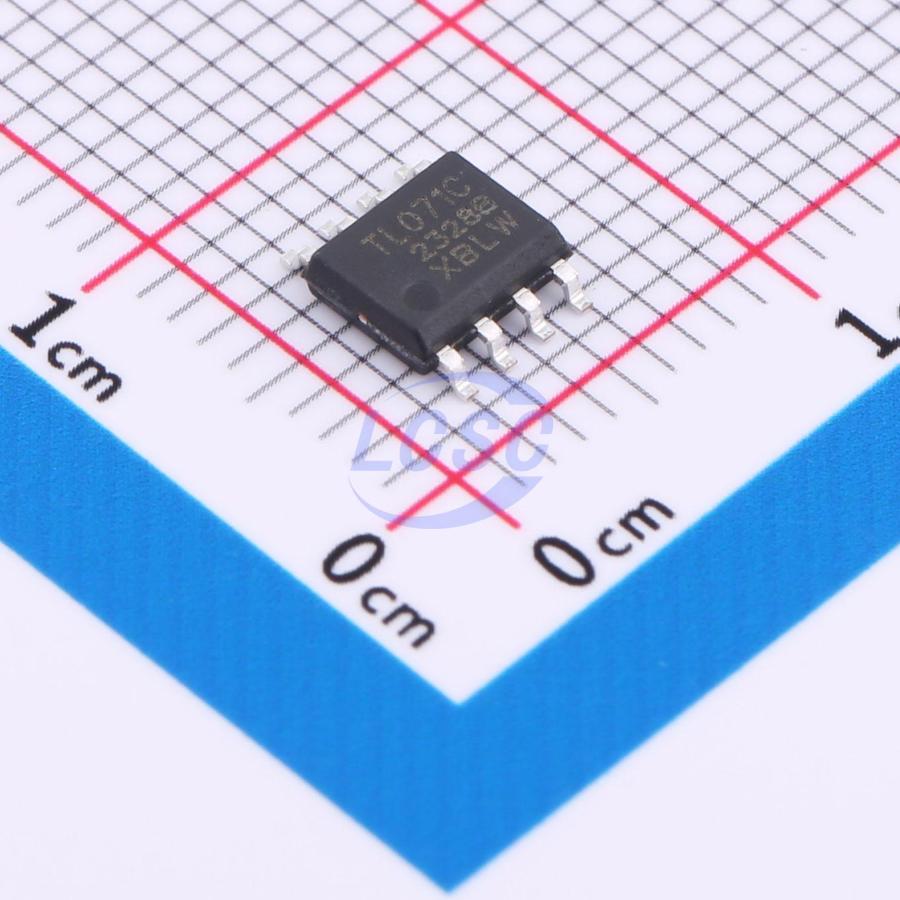

TL071CDTR(XBLW)
1 10mV 13V/us 85dB 200nA 1.8mA 3MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
General Purpose JFET Single Operational Amplifiers
- Manufacturer
- XBLW
- Manufacturer part #
- TL071CDTR(XBLW)
- Store part #
- C19267467
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,235 in stock
#C19267467
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.37 | ₹96.85 |
| 50+ | ₹15.55 | ₹777.50 |
| 150+ | ₹13.63 | ₹2,044.50 |
| 500+ | ₹12.18 | ₹6,090.00 |
| 2,500+ | ₹11.03 | ₹27,575.00 |
| 5,000+ | ₹10.46 | ₹52,300.00 |
5 × ₹19.37
₹96.85
excl. GST
₹114.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL071CDTR(XBLW)
₹96.85 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 10mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 200nA
- Quiescent Current
- 1.8mA
- Gain Bandwidth Product
- 3MHz
- Features
- Built-in compensation
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
Consisted of high voltage J- FET and bipolar transistors, the TL071 is a high speed J- FET single- channel operational amplifier, featured with high slew rate, low input offset and bias current and low offset voltage temperature rate. The TL071 provides DIP8 and SOP8 package forms.
Applications
- Battery test equipment
- Pro audio mixers
- Single phase online UPS
- Solar energy: string and central inverter
- Three phase UPS
- Motor drives: AC and servo drive control and power stage modules
Key features
- Very Low Power Consumption
- Wide Common- Mode And Differential Voltage Ranges
- Low Input Bias And Offset Currents
- Output Short- Circuit Protection
- High Input Impedance
- Internal Frequency Compensation
- High Slew Rate
- High Gain- Bandwidth
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL081CDTR(XBLW)#C18723616XBLW · SOP-8 | XBLW | SOP-8 | 3,200 | ₹18.71 · 3,200 in stock | View |
 | TL062CDTR(XBLW)#C19267465XBLW · SOP-8 | XBLW | SOP-8 | 3,220 | ₹16.41 · 3,220 in stock | View |
