TIDatasheet (PDF)

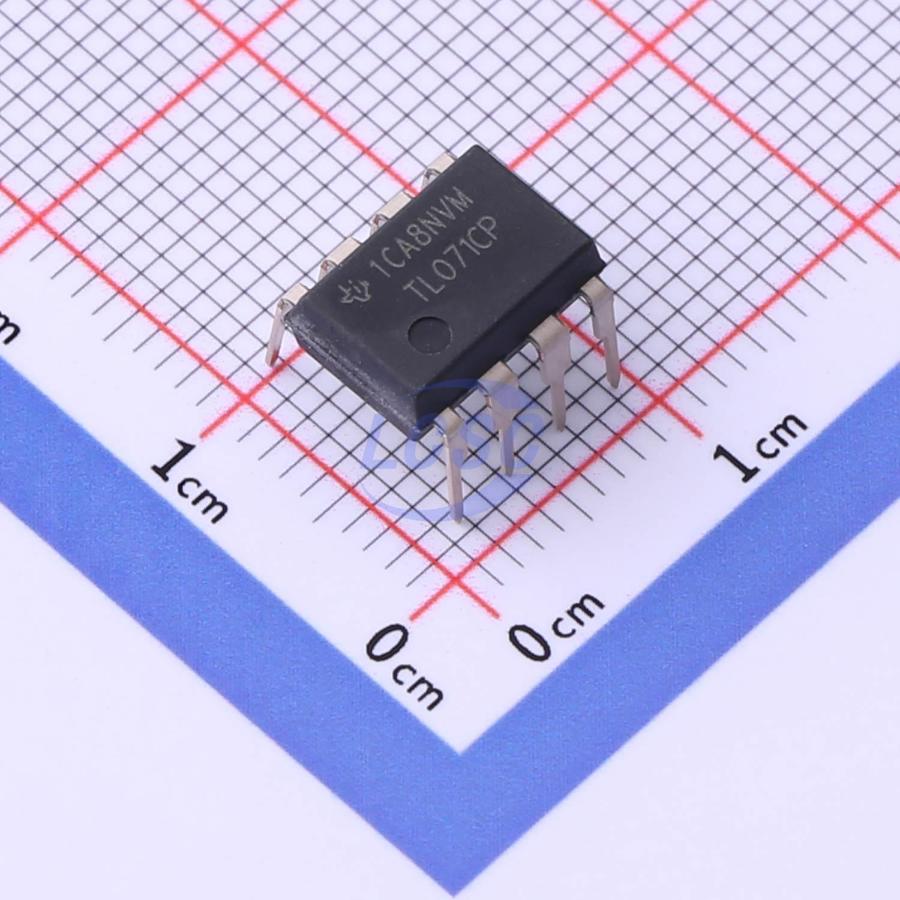

TL071CP
1 1mV 20V/us 80dB 65pA 937.5uA 5.25MHz PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
PDIP-8ROHS3 CompliantActive
Low-noise FET-input operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- TL071CP
- Store part #
- C273645
- Package / case
- PDIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,638 in stock
#C273645
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.07 | ₹49.07 |
| 10+ | ₹38.43 | ₹384.30 |
| 50+ | ₹33.43 | ₹1,671.50 |
| 100+ | ₹28.88 | ₹2,888.00 |
| 500+ | ₹27.57 | ₹13,785.00 |
| 1,000+ | ₹26.71 | ₹26,710.00 |
1 × ₹49.07
₹49.07
excl. GST
₹57.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL071CP
₹49.07 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 20V/us
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 65pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 937.5uA
- Gain Bandwidth Product
- 5.25MHz
- Features
- Short-Circuit Protection;EMI filtering/RF suppression
- Input Voltage Noise Density
- 37nV/√Hz@1kHz
- Dual Supply
- -20V~-2.25V;2.25V~20V
- Single Supply
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.875 g
Overview
The TL07xH (TL071H, TL072H, and TL074H) series of devices are the next-generation versions of the TL07x (TL071, TL072, and TL074) devices. These devices offer excellent value for cost-sensitive applications, with features including low offset voltage (1mV, typical), high slew rate (20V/μs), and common-mode input for positive power supplies. Thanks to high ESD (1.5kV, HBM), integrated EMI and RF filters, and the ability to operate over the full temperature range from –40°C to 125°C, the TLO7xH devices can be used in extremely demanding applications.
Applications
- Solar: string and central inverters
- Motor drives: AC and servo drive control and power stage modules
- Single-phase online UPS
- Three-phase UPS
- Professional audio mixers
- Battery test equipment
Key features
- High slew rate: 20V/μs (TL07xH, typical)
- Low offset voltage: 1mV (TL07xH, typical)
- Low offset voltage drift: 2μV/°C
- Low power consumption: 940μA/ch (TL07xH, typical)
- Wide common-mode and differential voltage range; common-mode input voltage range includes VCC+
- Low input bias and offset current
- Low noise: Vn = 18nV/√Hz at f = 1kHz (typical)
- Output short-circuit protection
- Low THD: 0.003% (typical)
- Wide supply voltage range: ±2.25V to ±20V, 4.5V to 40V
