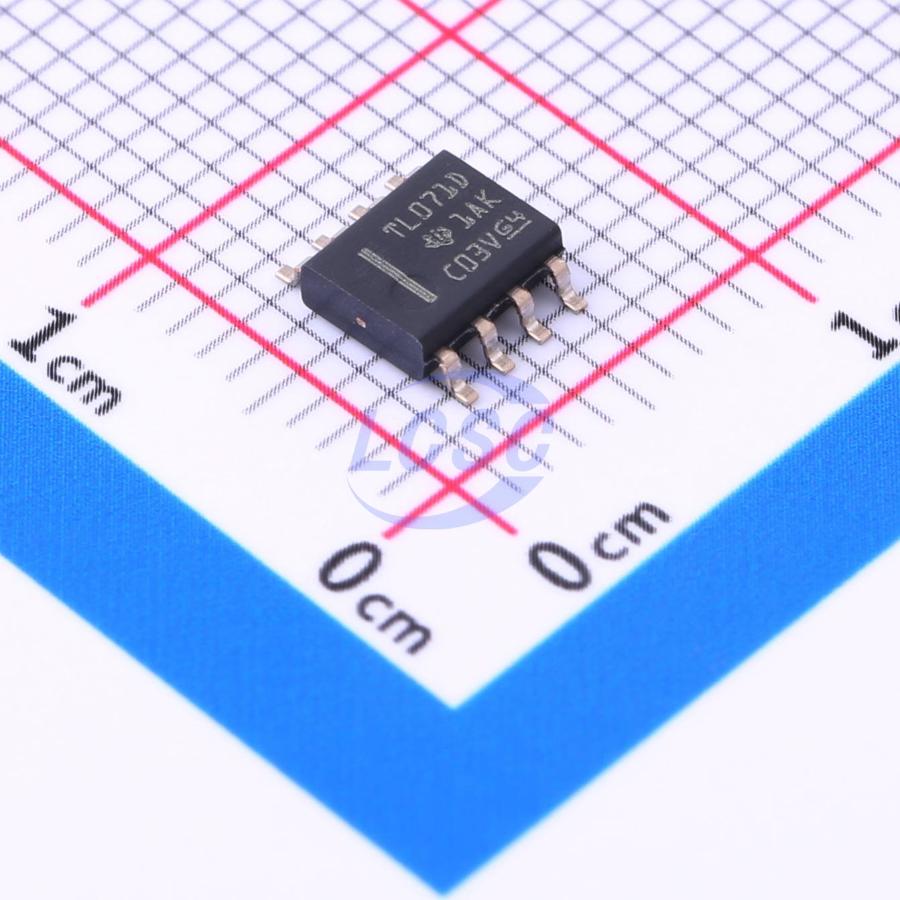

TL071HIDR

26mA 1 1mV 20V/us 1pA 105dB 960uA 5.25MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Low-noise FET-input operational amplifier

Manufacturer: TI
Manufacturer part #: TL071HIDR
Store part #: C5214234
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,990 in stock

#C5214234

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹25.16	₹125.80
50+	₹19.75	₹987.50
150+	₹17.12	₹2,568.00
500+	₹14.75	₹7,375.00
3,000+	₹14.12	₹42,360.00
6,000+	₹13.72	₹82,320.00

Quantity (min 5, multiples of 5)

5 × ₹25.16

₹125.80

excl. GST

₹148.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TL071HIDR

₹125.80 for 5 + GST

Specifications

Output Current: 26mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 20V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 105dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 960uA
Gain Bandwidth Product: 5.25MHz
Features: Short-Circuit Protection;EMI filtering/RF suppression
Input Voltage Noise Density: 37nV/√Hz@1kHz
Dual Supply: -20V~-2.25V;2.25V~20V
Single Supply: 4.5V~40V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.141 g

Overview

The TL07xH (TL071H, TL072H, and TL074H) series of devices are the next-generation versions of the TL07x (TL071, TL072, and TL074) devices. These devices offer excellent value for cost-sensitive applications, with features including low offset voltage (1mV, typical), high slew rate (20V/μs), and common-mode input for positive power supplies. Thanks to high ESD (1.5kV, HBM), integrated EMI and RF filters, and the ability to operate over the full temperature range from –40°C to 125°C, the TLO7xH devices can be used in extremely demanding applications.

Applications

Solar: string and central inverters
Motor drives: AC and servo drive control and power stage modules
Single-phase online UPS
Three-phase UPS
Professional audio mixers
Battery test equipment

Key features

High slew rate: 20V/μs (TL07xH, typical)
Low offset voltage: 1mV (TL07xH, typical)
Low offset voltage drift: 2μV/°C
Low power consumption: 940μA/ch (TL07xH, typical)
Wide common-mode and differential voltage range; common-mode input voltage range includes VCC+
Low input bias and offset current
Low noise: Vn = 18nV/√Hz at f = 1kHz (typical)
Output short-circuit protection
Low THD: 0.003% (typical)
Wide supply voltage range: ±2.25V to ±20V, 4.5V to 40V
