ShikuesDatasheet (PDF)

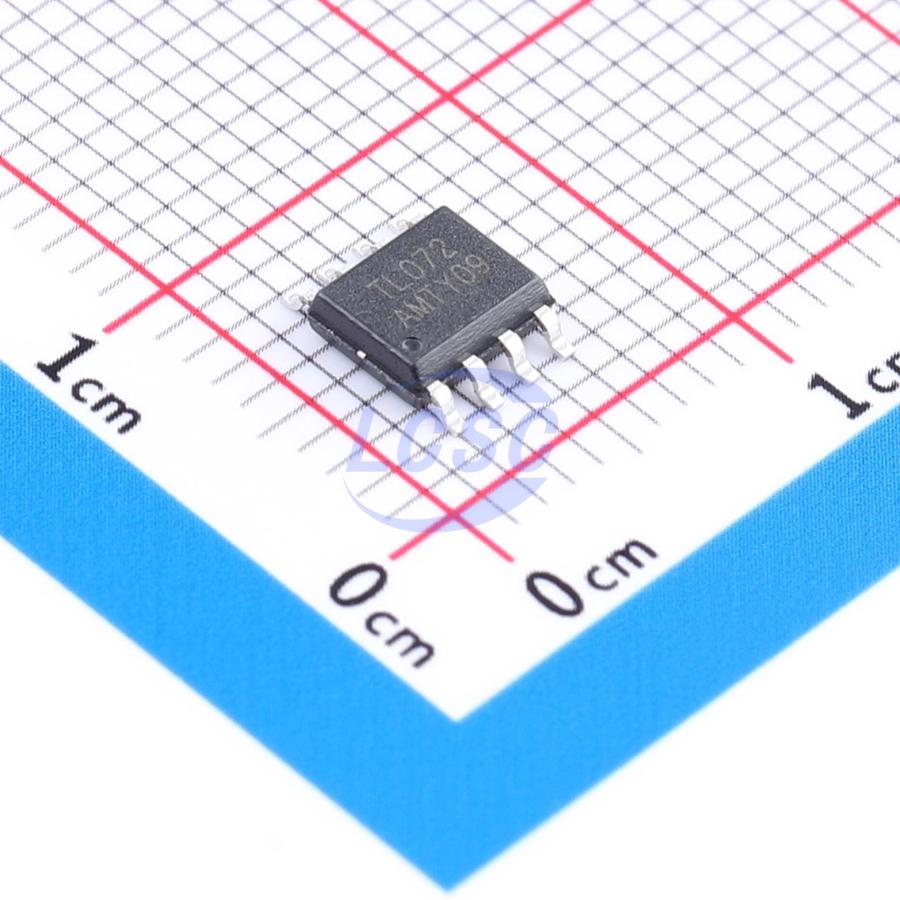

TL072-P8
60mA 2 2mV 13V/us 95dB 200pA 1.4mA 3MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- Shikues
- Manufacturer part #
- TL072-P8
- Store part #
- C53467544
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,835 in stock
#C53467544
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.55 | ₹92.75 |
| 50+ | ₹14.72 | ₹736.00 |
| 150+ | ₹12.82 | ₹1,923.00 |
| 500+ | ₹11.39 | ₹5,695.00 |
| 2,500+ | ₹10.25 | ₹25,625.00 |
| 5,000+ | ₹9.68 | ₹48,400.00 |
5 × ₹18.55
₹92.75
excl. GST
₹109.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TL072-P8
₹92.75 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 200pA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.237 g
Overview
TL072 is a low-noise JFET-input dual op-amp comprising high-voltage JFETs and bipolar transistors. It features high slew rate, low input bias current, low input offset current, and low offset voltage temperature coefficient. The TL072 is available in DIP-8 and SOP-8 packages.
Applications
- Solar energy systems
- Motor drivers
- Single-phase UPS
- Professional audio mixers
- Battery test equipment
Key features
- Low power consumption: 1.4mA/channel
- Low input bias current: 200pA
- Low input offset current: 50pA
- Low noise
- High input impedance
- Low distortion: ~0.01%
- High slew rate: 13V/μS
- High gain bandwidth product: 3MHz
