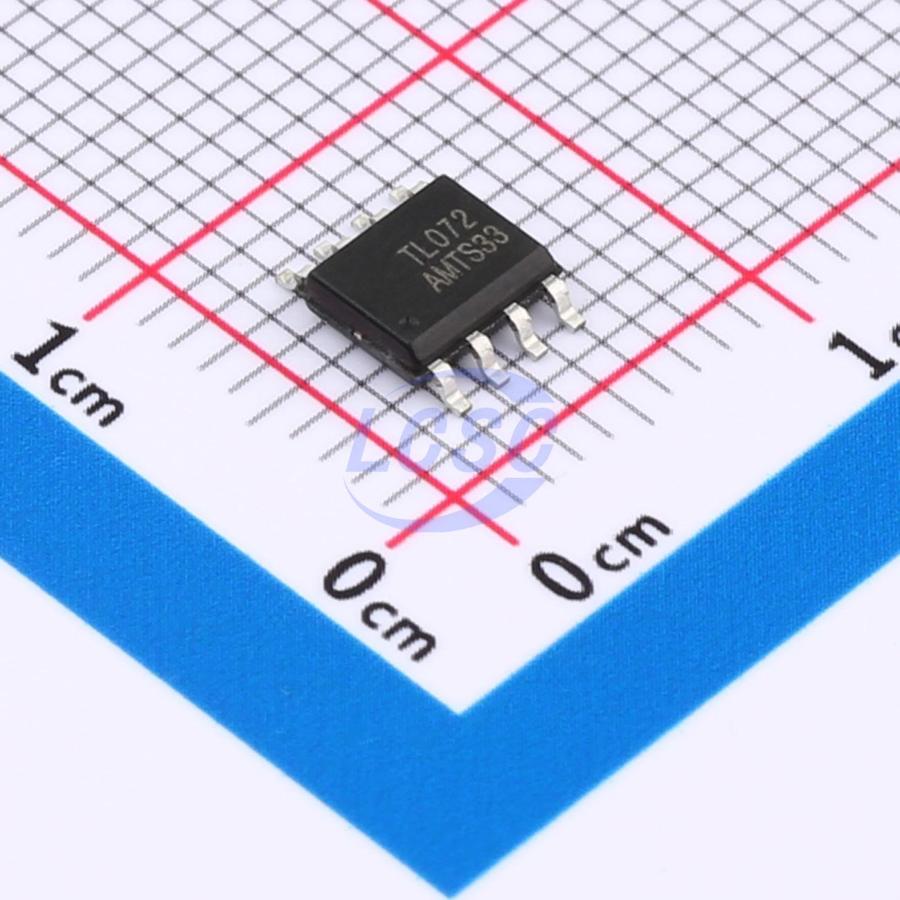

ChipNoboDatasheet (PDF)
TL072CDR-CN
60mA 2 2mV 13V/us 200pA 95dB 1.4mA 3MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Low Noise, JFET Input Operation Amplifiers
- Manufacturer
- ChipNobo
- Manufacturer part #
- TL072CDR-CN
- Store part #
- C42436858
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,340 in stock
#C42436858
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.78 | ₹48.90 |
| 50+ | ₹8.49 | ₹424.50 |
| 150+ | ₹7.86 | ₹1,179.00 |
| 500+ | ₹7.37 | ₹3,685.00 |
| 2,500+ | ₹6.99 | ₹17,475.00 |
| 4,000+ | ₹6.80 | ₹27,200.00 |
5 × ₹9.78
₹48.90
excl. GST
₹57.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TL072CDR-CN
₹48.90 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -20℃~+85℃
- Ib - Input Bias Current
- 200pA
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.143 g
Overview
TL072CDR-CN is a high-speed JFET-input dual operational amplifier implemented in a monolithic integrated circuit, incorporating well-matched, high-voltage JFETs and bipolar transistors. The device features high slew rate, low input bias and offset current, and low offset voltage temperature coefficient. The TL072CDR-CN is available in an SOP8 package.
Applications
- Motor drives
- Professional audio mixers
- Battery test equipment
- Mobile electronic devices
Key features
- Low supply current: 1.4mA per amplifier
- Low input bias current: 200pA (typical)
- Low input offset current: 50pA (typical)
- High slew rate: 13V/µs (typical)
- Wide gain bandwidth: 3.0 MHz
