lingxingicDatasheet (PDF)

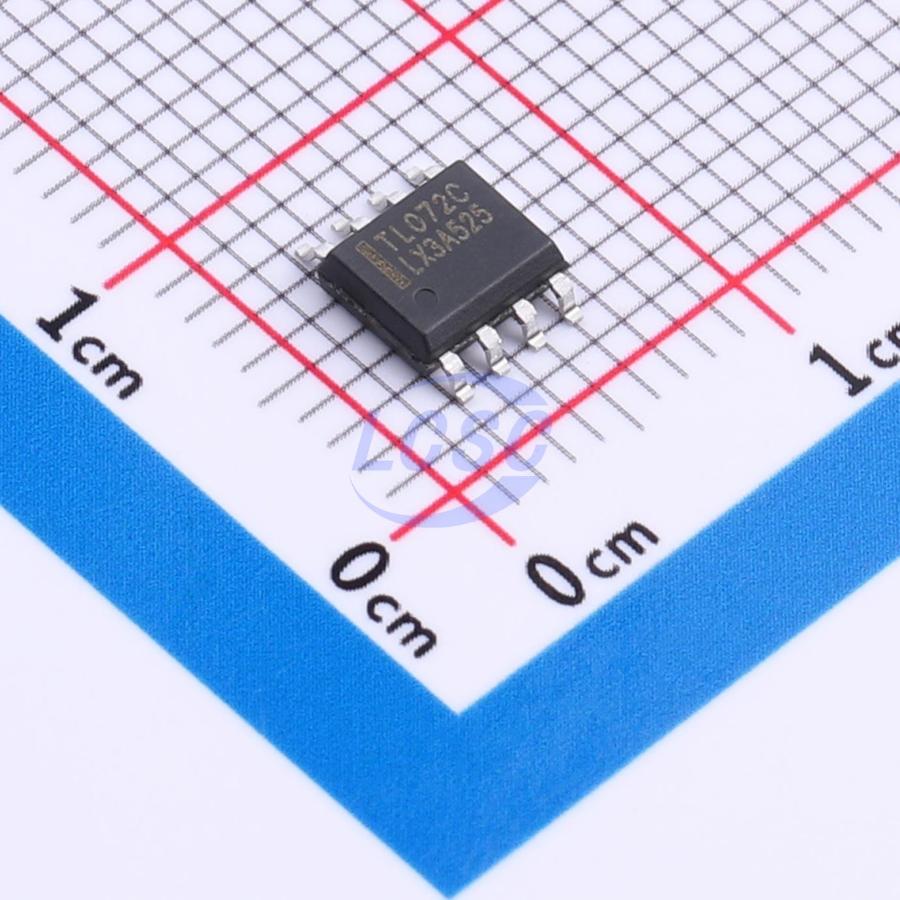

TL072CDR(LX)
3.5MHz 1.4mA 60mA 2 3mV 13V/us 30pA 86dB SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- TL072CDR(LX)
- Store part #
- C49396713
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,055 in stock
#C49396713
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.67 | ₹63.35 |
| 50+ | ₹11.17 | ₹558.50 |
| 150+ | ₹10.43 | ₹1,564.50 |
| 500+ | ₹9.86 | ₹4,930.00 |
| 2,500+ | ₹9.41 | ₹23,525.00 |
| 4,000+ | ₹9.18 | ₹36,720.00 |
5 × ₹12.67
₹63.35
excl. GST
₹74.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TL072CDR(LX)
₹63.35 for 5 + GST
Specifications
- Gain Bandwidth Product
- 3.5MHz
- Quiescent Current
- 1.4mA
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 5pA
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 30pA
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Dual Supply
- -18V~18V
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.175 g
Overview
TL072 is a dual-channel op-amp with JFET inputs and low-noise characteristics, primarily suited for audio amplification and other systems requiring low-noise performance.
Key features
- Low input noise: 18 nV/√Hz (typical)
- Low distortion: 0.01% (typical)
- Low input bias current and offset current
- High input impedance: 10^12 Ω (typical)
- High slew rate: 13 V/μs (typical)
- Wide bandwidth: 3.5 MHz (typical)
- Substrate grounded
- Package: DIP8/SOP8
