XBLWDatasheet (PDF)

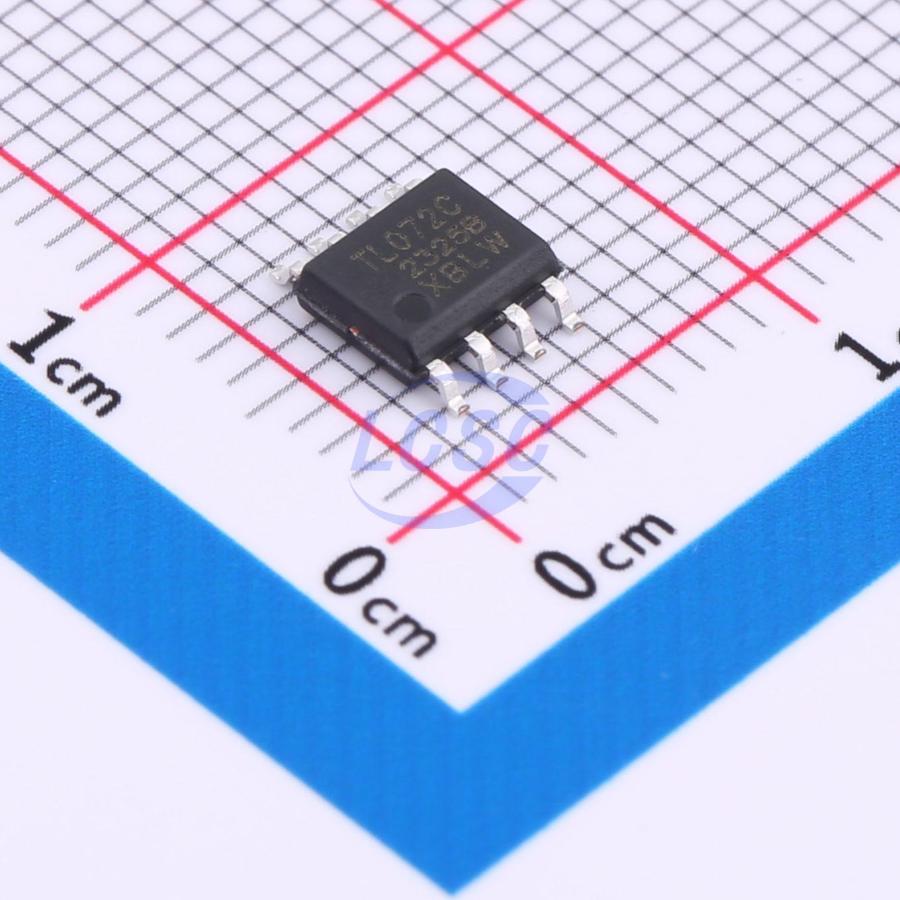

TL072CDTR(XBLW)
2 10mV 13V/us 85dB 2.5nA 1.4mA 3MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Low Noise JFET Dual Operational Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- TL072CDTR(XBLW)
- Store part #
- C19267468
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,330 in stock
#C19267468
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.76 | ₹73.80 |
| 50+ | ₹12.87 | ₹643.50 |
| 150+ | ₹12.07 | ₹1,810.50 |
| 500+ | ₹11.06 | ₹5,530.00 |
| 2,500+ | ₹10.61 | ₹26,525.00 |
| 5,000+ | ₹10.33 | ₹51,650.00 |
5 × ₹14.76
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL072CDTR(XBLW)
₹73.80 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 10mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 2.5nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
Consisted of high voltage J- FET and bipolar transistors, the TL072 is a high speed J- FET dual- channel operational amplifier, featured with high slew rate, low input offset and bias current and low offset voltage temperature rate. The TL072 provides DIP8 and SOP8 package forms.
Applications
- Battery test equipment
- Pro audio mixers
- Single phase online UPS
- Solar energy: string and central inverter
- Three phase UPS
- Motor drives: AC and servo drive control and power stage modules
Key features
- Lower Power Consumption
- Wide Common- Mode And Differential Voltage Ranges
- Low Input Bias And Offset Currents
- Output Short- Circuit Protection
- High Input Impedance
- High Slew Rate
- High Gain- Bandwidth up to 4MHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL082CDTR(XBLW)#C18723617XBLW · SOP-8 | XBLW | SOP-8 | 545 | ₹20.08 · 545 in stock | View |
