XBLWDatasheet (PDF)

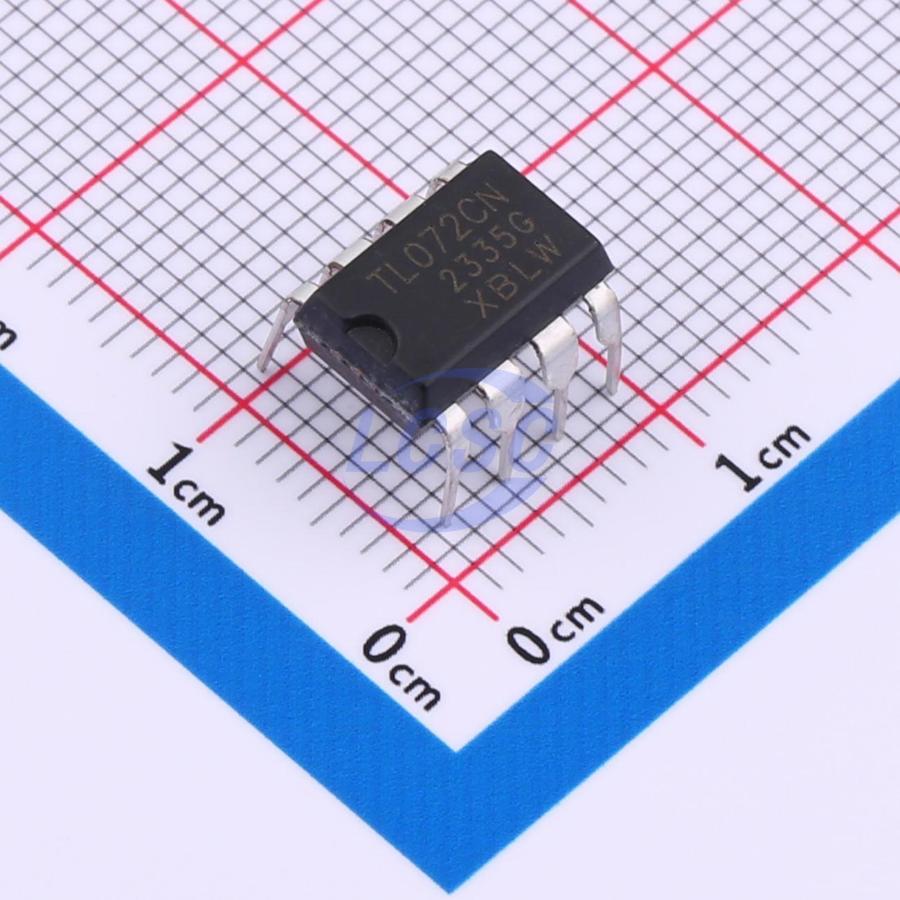

TL072CN(XBLW)
1 3mV 13V/us 85dB 2.5nA 1.4mA 3MHz DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DIP-8ROHS CompliantActive
Low Noise JFET Dual Operational Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- TL072CN(XBLW)
- Store part #
- C19267480
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,705 in stock
#C19267480
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.17 | ₹140.85 |
| 50+ | ₹22.50 | ₹1,125.00 |
| 150+ | ₹20.08 | ₹3,012.00 |
| 500+ | ₹17.05 | ₹8,525.00 |
| 2,000+ | ₹15.70 | ₹31,400.00 |
| 4,000+ | ₹14.90 | ₹59,600.00 |
5 × ₹28.17
₹140.85
excl. GST
₹166.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL072CN(XBLW)
₹140.85 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 2.5nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.739 g
Overview
Consisted of high voltage J- FET and bipolar transistors, the TL072 is a high speed J- FET dual- channel operational amplifier, featured with high slew rate, low input offset and bias current and low offset voltage temperature rate. The TL072 provides DIP8 and SOP8 package forms.
Applications
- Battery test equipment
- Pro audio mixers
- Single phase online UPS
- Solar energy: string and central inverter
- Three phase UPS
- Motor drives: AC and servo drive control and power stage modules
Key features
- Lower Power Consumption
- Wide Common- Mode And Differential Voltage Ranges
- Low Input Bias And Offset Currents
- Output Short- Circuit Protection
- High Input Impedance
- High Slew Rate
- High Gain- Bandwidth up to 4MHz
