STDatasheet (PDF)

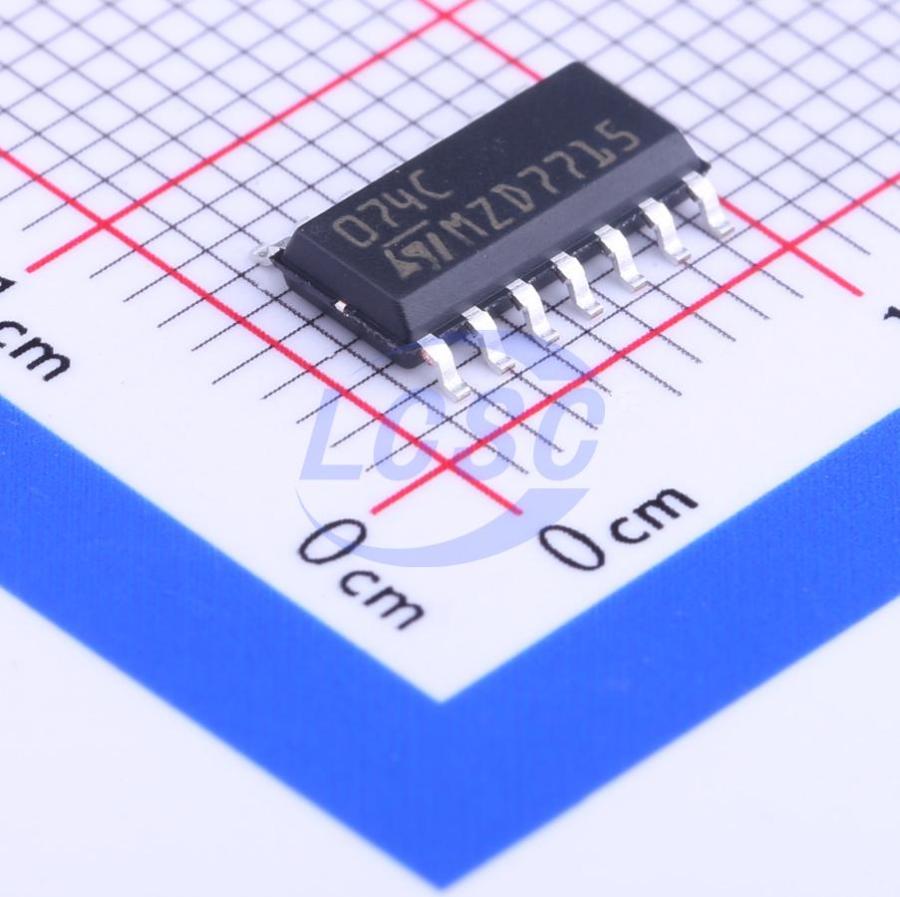

TL074CDT
40mA Four channels 3mV 13V/us 86dB 20pA 1.4mA 3MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Low-noise JFET quad operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TL074CDT
- Store part #
- C6963
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41,160 in stock
#C6963
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.90 | ₹159.50 |
| 50+ | ₹25.08 | ₹1,254.00 |
| 150+ | ₹22.16 | ₹3,324.00 |
| 500+ | ₹18.52 | ₹9,260.00 |
| 2,500+ | ₹16.89 | ₹42,225.00 |
| 5,000+ | ₹15.93 | ₹79,650.00 |
5 × ₹31.90
₹159.50
excl. GST
₹188.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL074CDT
₹159.50 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Single Supply
- 6V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.335 g
Overview
The TL074, TL074A, and TL074B are high-speed JFET input single operational amplifiers. Each of these JFET input operational amplifiers incorporates well matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Key features
- Wide common-mode (up to V_CC+) and differential voltage range
- Low input bias and offset current
- Low noise e_n = 15 nV/√Hz (typ)
- Output short-circuit protection
- High input impedance JFET input stage
- Low harmonic distortion: 0.01% (typical)
- Internal frequency compensation
- Latch up free operation
- High slew rate: 16 V/μs (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL074IM/TR#C19193427HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,525 | ₹44.49 · 2,525 in stock | View |
 | TL074CD#C5268497ST · SO-14 | ST | SO-14 | On request | Price on request | Quote |
