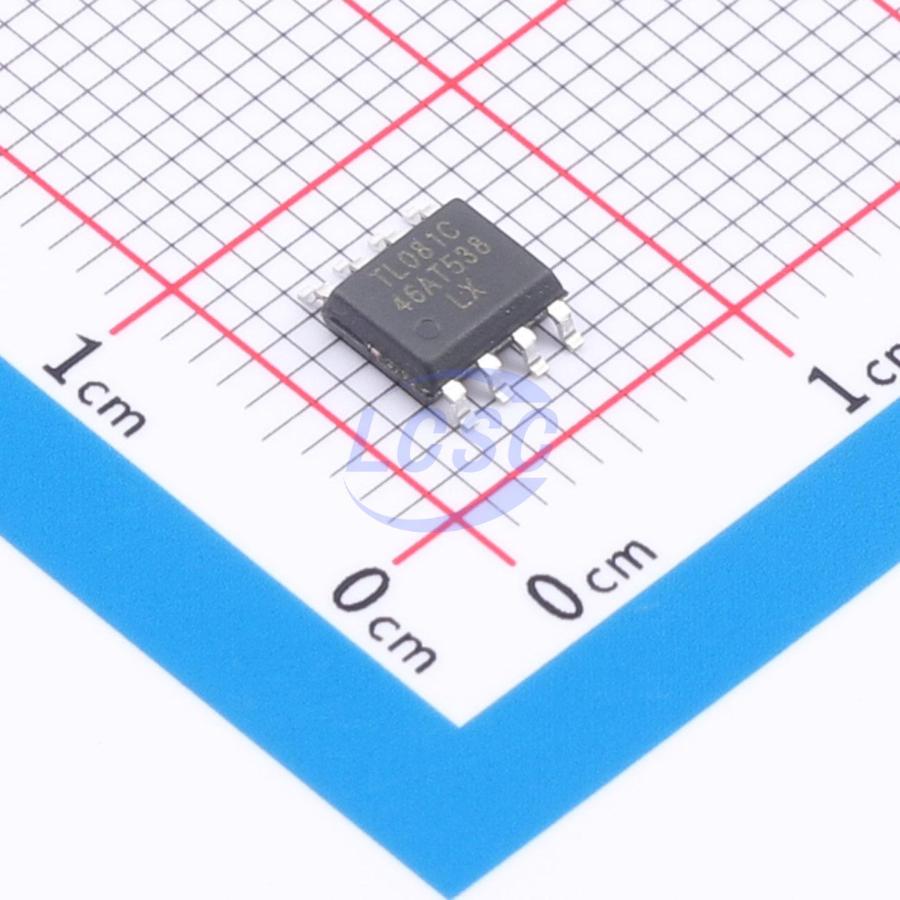

TL081CDR(LX)
3.5MHz 1.4mA 40mA 1 3mV 13V/us 30pA 86dB SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- TL081CDR(LX)
- Store part #
- C54819677
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C54819677
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.95 | ₹84.75 |
| 50+ | ₹13.45 | ₹672.50 |
| 150+ | ₹11.72 | ₹1,758.00 |
| 500+ | ₹10.41 | ₹5,205.00 |
| 2,500+ | ₹9.37 | ₹23,425.00 |
| 4,000+ | ₹8.85 | ₹35,400.00 |
5 × ₹16.95
₹84.75
excl. GST
₹100.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TL081CDR(LX)
₹84.75 for 5 + GST
Specifications
- Gain Bandwidth Product
- 3.5MHz
- Quiescent Current
- 1.4mA
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 5pA
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 30pA
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
TL081 is a low-noise single-channel op-amp featuring JFET input technology, designed for audio amplification and other systems requiring low-noise performance.
Key features
- Low input noise: 18 nV/√Hz (typ.)
- Low distortion: 0.01% (typ.)
- Low input bias current and offset current
- High input impedance: 10¹²Ω (typ.)
- High slew rate: 13 V/us (typ.)
- High bandwidth: 3.5 MHz (typ.)
- Substrate grounded
- Package: DIP8/SOP8
