TIDatasheet (PDF)

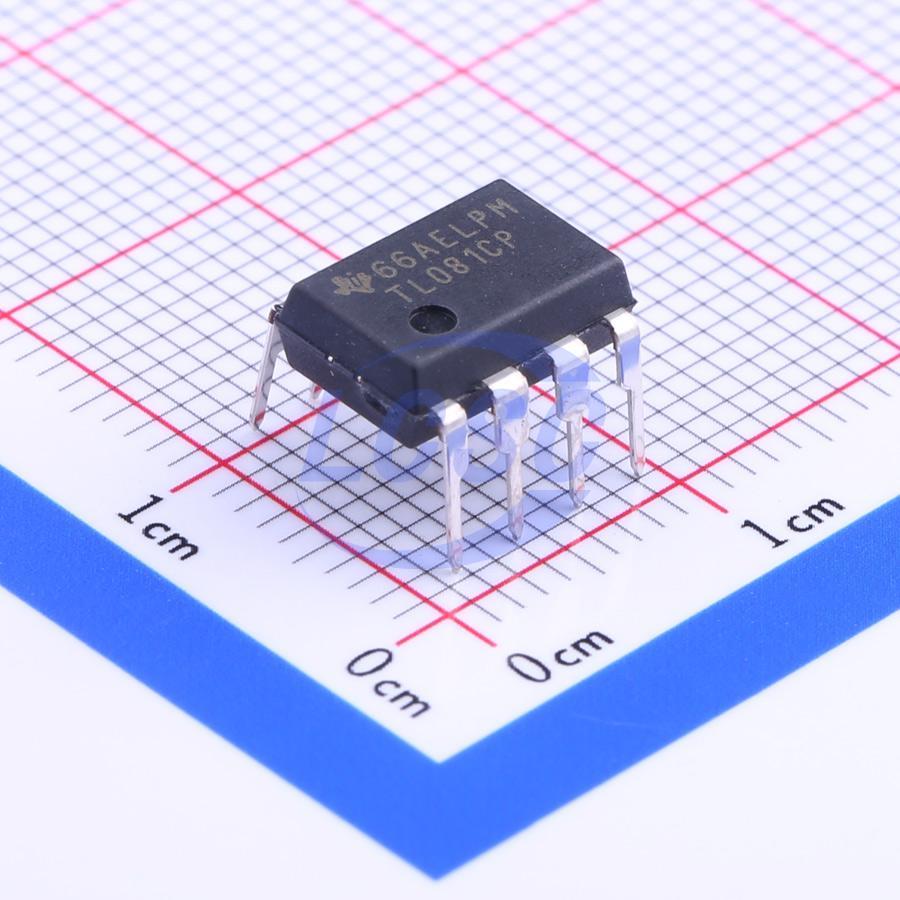

TL081CP
1 3mV 13V/us 86dB 30pA 1.4mA 3MHz DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DIP-8ROHS3 CompliantActive
JFET-Input Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL081CP
- Store part #
- C38969
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,777 in stock
#C38969
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.30 | ₹79.30 |
| 10+ | ₹63.66 | ₹636.60 |
| 30+ | ₹56.06 | ₹1,681.80 |
| 100+ | ₹45.84 | ₹4,584.00 |
| 500+ | ₹41.29 | ₹20,645.00 |
| 1,000+ | ₹38.90 | ₹38,900.00 |
1 × ₹79.30
₹79.30
excl. GST
₹93.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL081CP
₹79.30 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 18uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection;Latch-up suppression
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.9 g
Overview
The TL08xx JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.
Applications
- Tablets
- White goods
- Personal electronics
- Computers
Key features
- Low Power Consumption: 1.4 mA/ch Typical
- Wide Common-Mode and Differential Voltage Ranges
- Low Input Bias Current: 30 pA Typical
- Low Input Offset Current: 5 pA Typical
- Output Short-Circuit Protection
- Low Total Harmonic Distortion: 0.003% Typical
- High Input Impedance: JFET Input Stage
- Latch-Up-Free Operation
- High Slew Rate: 13 V/μs Typical
- Common-Mode Input Voltage Range Includes VCC+
