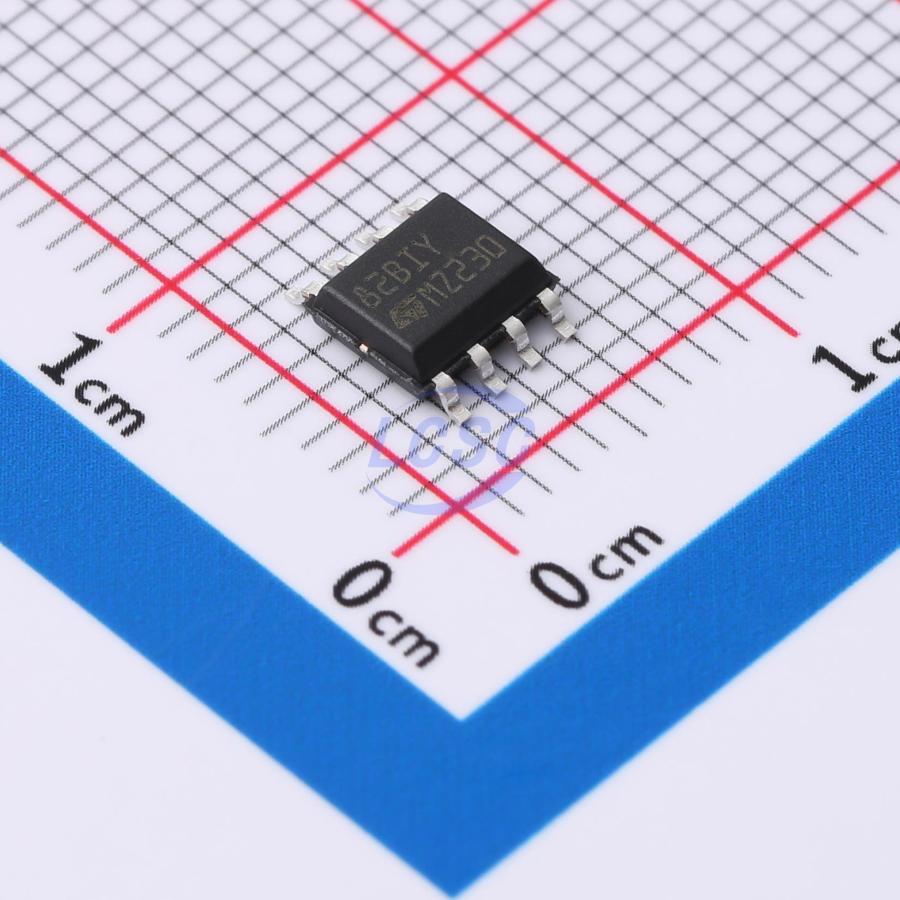

TL082BIYDT

40mA 2 1mV 16V/us 86dB 20pA 1.4mA 4MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS

SO-8ROHS3 CompliantActive

General purpose JFET dual operation amplifiers

Manufacturer: ST
Manufacturer part #: TL082BIYDT
Store part #: C2057586
Package / case: SO-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,456 in stock

#C2057586

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹91.22	₹91.22
10+	₹74.54	₹745.40
30+	₹66.10	₹1,983.00
100+	₹57.85	₹5,785.00
500+	₹50.49	₹25,245.00
1,000+	₹47.89	₹47,890.00

Quantity (min 1)

1 × ₹91.22

₹91.22

excl. GST

₹107.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TL082BIYDT

₹91.22 for 1 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 1mV
Slew Rate: 16V/us
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+105℃
Common Mode Rejection Ratio(CMRR): 86dB
Ib - Input Bias Current: 20pA
Input Offset Voltage Drift(Vos TC): 10uV/℃
Quiescent Current: 1.4mA
Gain Bandwidth Product: 4MHz
Features: Short-Circuit Protection;Built-in compensation;Latch-up suppression
Input Voltage Noise Density: 15nV/√Hz@1kHz
Dual Supply: -18V~-6V;6V~18V
Single Supply: 6V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.15 g

Overview

The TL082, TL082A and TL082B are high speed JFET input dual operational amplifiers incorporating well-matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
