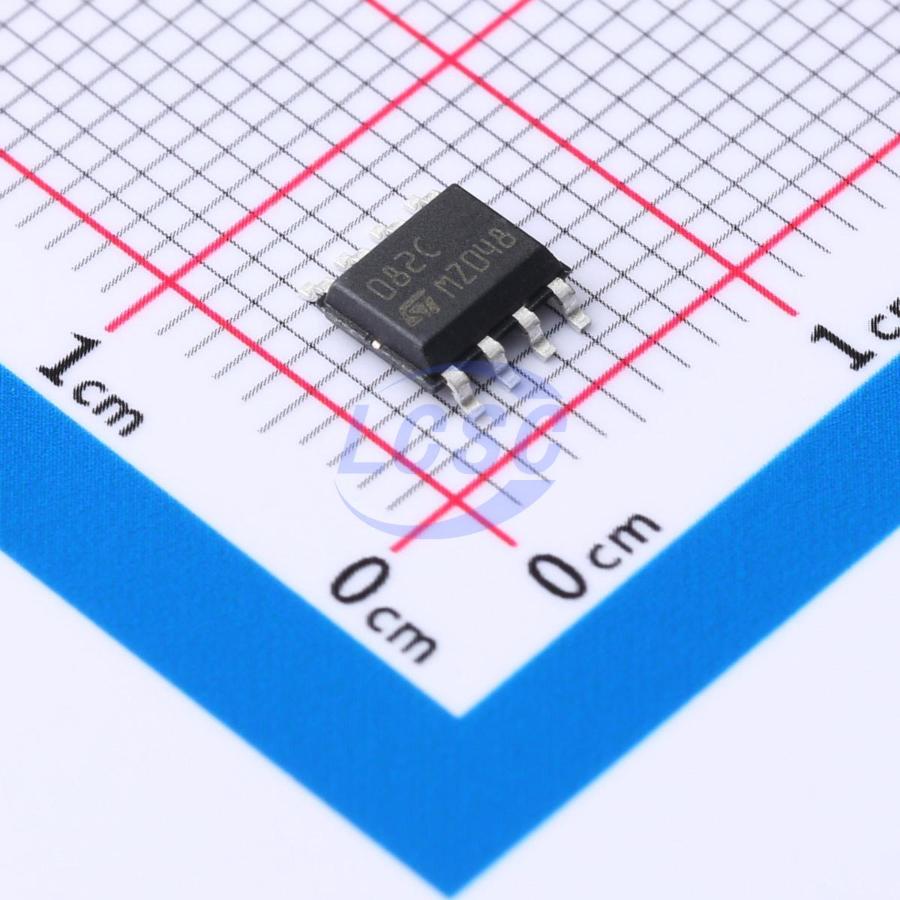

TL082CD

60mA 2 3mV 16V/us 20pA 86dB 4MHz 1.4mA SO-8 Instrumentation, Op Amps, Buffer Amps RoHS

SO-8ROHS3 CompliantActive

General purpose JFET dual operation amplifiers

Manufacturer: ST
Manufacturer part #: TL082CD
Store part #: C5268493
Package / case: SO-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,350 in stock

#C5268493

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹52.30	₹261.50
50+	₹39.86	₹1,993.00
150+	₹35.48	₹5,322.00
500+	₹30.02	₹15,010.00
2,500+	₹27.58	₹68,950.00
5,000+	₹26.13	₹1,30,650.00

Quantity (min 5, multiples of 5)

5 × ₹52.30

₹261.50

excl. GST

₹308.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 100 per tube

TL082CD

₹261.50 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 16V/us
Input Offset Current(Ios): 5pA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 86dB
Input Offset Voltage Drift(Vos TC): 10uV/℃
Gain Bandwidth Product: 4MHz
Quiescent Current: 1.4mA
Features: Short-Circuit Protection;Built-in compensation;Latch-up suppression
Input Voltage Noise Density: 15nV/√Hz@1kHz
Single Supply: 6V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.34 g

Overview

The TL082, TL082A and TL082B are high speed JFET input dual operational amplifiers incorporating well-matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
