XBLWDatasheet (PDF)

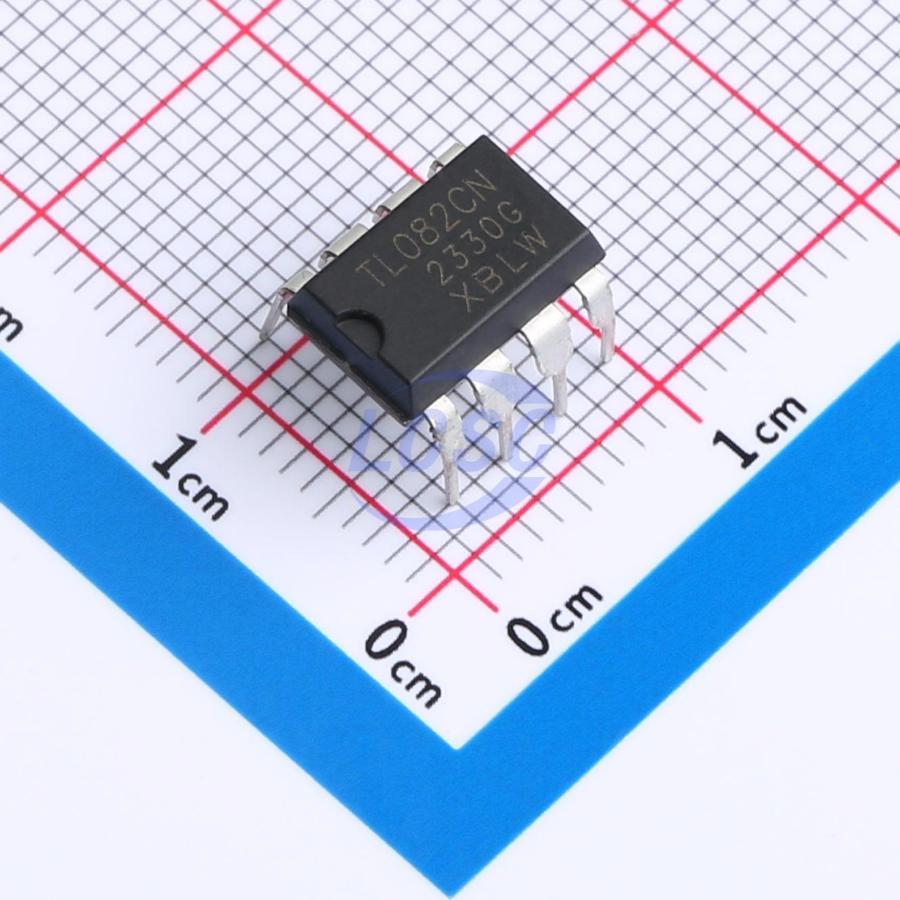

TL082CN(XBLW)
2 6mV 13V/us 2.5nA 85dB 1.4mA 3MHz DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DIP-8ROHS CompliantActive
General Purpose JFET Dual Operational Amplifiers
- Manufacturer
- XBLW
- Manufacturer part #
- TL082CN(XBLW)
- Store part #
- C18724387
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,015 in stock
#C18724387
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.05 | ₹120.25 |
| 50+ | ₹18.85 | ₹942.50 |
| 150+ | ₹16.63 | ₹2,494.50 |
| 500+ | ₹13.85 | ₹6,925.00 |
| 2,000+ | ₹12.61 | ₹25,220.00 |
| 4,000+ | ₹11.87 | ₹47,480.00 |
5 × ₹24.05
₹120.25
excl. GST
₹141.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL082CN(XBLW)
₹120.25 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5pA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 2.5nA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.726 g
Overview
Consisted of high voltage J- FET and bipolar transistors, the TL082 is a high speed J- FET dual- channel operational amplifier, featured with high slew rate, low input offset and bias current and low offset voltage temperature rate. The TL082 provides DIP8 and SOP8 package forms.
Applications
- Battery test equipment
- Pro audio mixers
- Single phase online UPS
- Solar energy: string and central inverter
- Three phase UPS
- Motor drives: AC and servo drive control and power stage modules
Key features
- Lower Power Consumption
- Wide Common- Mode And Differential Voltage Ranges
- Low Input Bias And Offset Currents
- Output Short- Circuit Protection
- High Input Impedance
- High Slew Rate
- High Gain
- Bandwidth up to 4MHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL062CN(XBLW)#C19267479XBLW · DIP-8 | XBLW | DIP-8 | 2,180 | ₹25.27 · 2,180 in stock | View |
