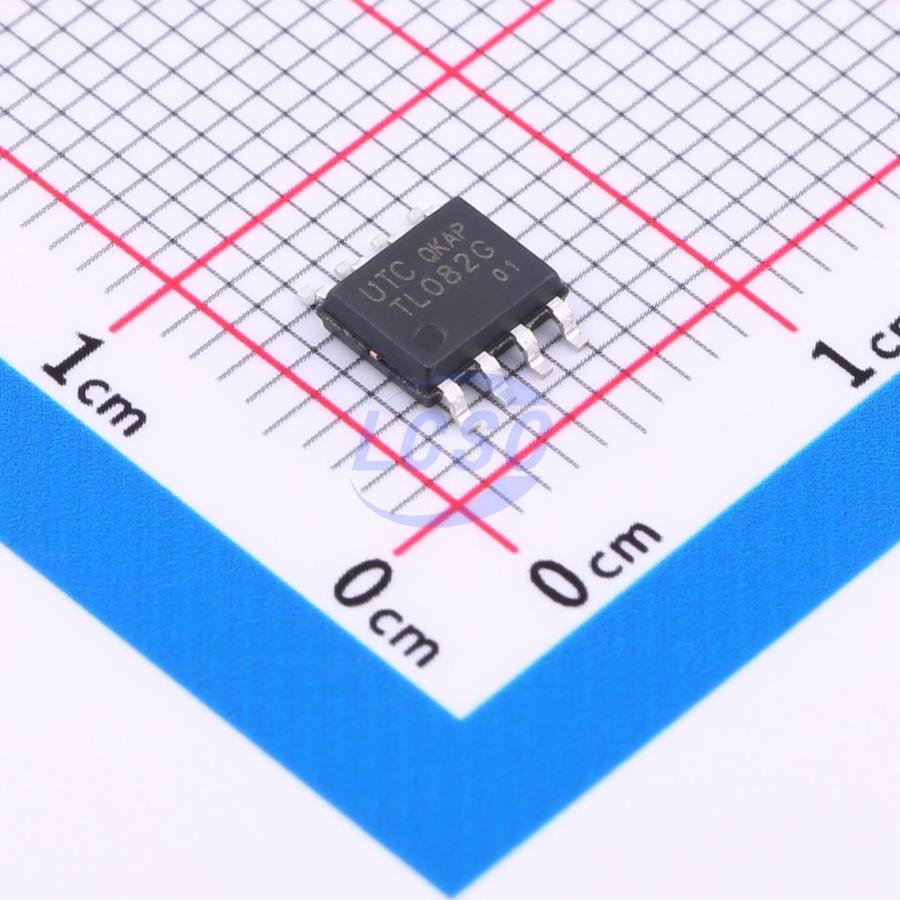

TL082G
60mA 2 3mV 10V/us 20nA 86dB 2.3mA 4MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
General-purpose dual J-FET operational amplifier
- Manufacturer
- UTC
- Manufacturer part #
- TL082G
- Store part #
- C7494897
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C7494897
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.42 | ₹132.10 |
| 50+ | ₹20.89 | ₹1,044.50 |
| 150+ | ₹18.52 | ₹2,778.00 |
| 500+ | ₹15.56 | ₹7,780.00 |
| 2,500+ | ₹14.24 | ₹35,600.00 |
| 5,000+ | ₹13.45 | ₹67,250.00 |
5 × ₹26.42
₹132.10
excl. GST
₹155.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL082G
₹132.10 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 20nA
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 2.3mA
- Gain Bandwidth Product
- 4MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.638 g
Overview
The UTC TL082 is a high speed J-FET input dual operational amplifier. It incorporates well matched, high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
Key features
- Low input bias and offset current
- Wide common-mode (up to V_CC+) and differential voltage range
- Output short-circuit protection
- High input impedance J-FET input stage
- Internal frequency compensation
- Latch up free operation
- High slewrate:10V/µs (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL072CD#C5301861ST · SOIC-8 | ST | SOIC-8 | 1,655 | ₹44.85 · 1,655 in stock | View |
 | TL072G#C108153UTC · SOP-8 | UTC | SOP-8 | 2,980 | ₹26.91 · 2,980 in stock | View |
 | LM7322QMAX/NOPB#C2058062TI · SOIC-8 | TI | SOIC-8 | 231 | ₹549.63 · 231 in stock | View |
 | LM7332MAX/NOPB#C97826TI · SOIC-8 | TI | SOIC-8 | 2,417 | ₹238.38 · 2,417 in stock | View |
 | AD826ARZ-REEL#C652603ADI · SOIC-8 | ADI | SOIC-8 | 245 | ₹1,068.80 · 245 in stock | View |
