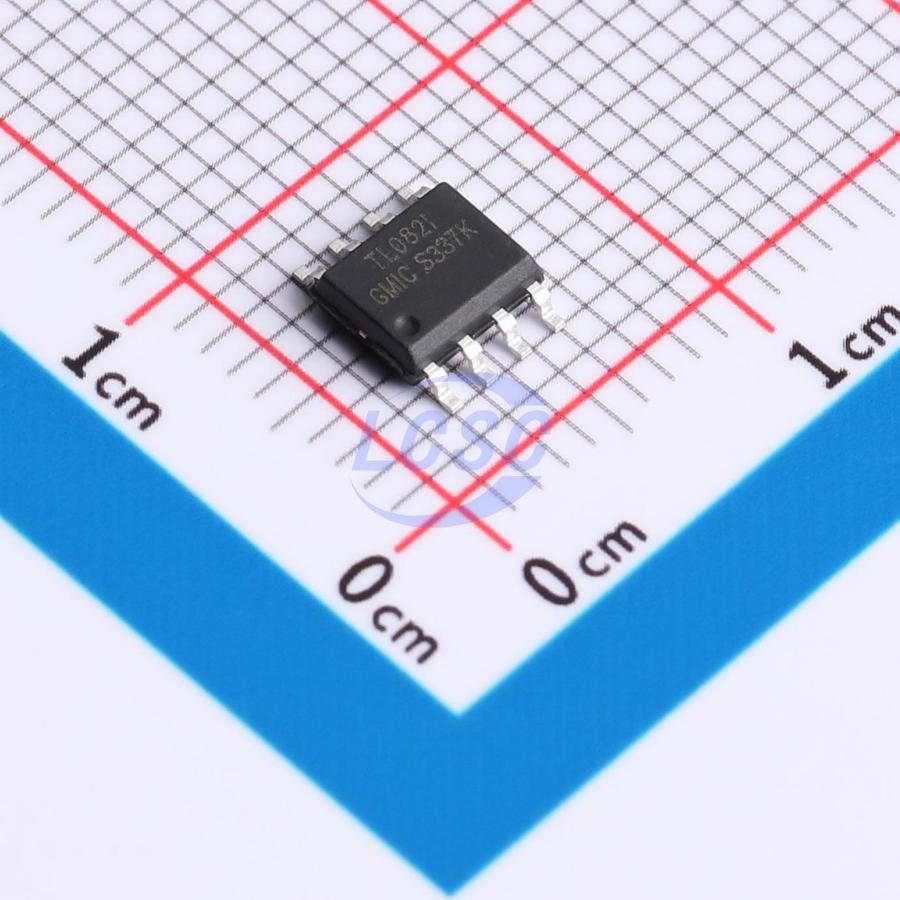

TL082IBS
60mA 2 6mV 13V/us 95dB 2.5nA 1.4mA 3MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- TL082IBS
- Store part #
- C53055741
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,715 in stock
#C53055741
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.48 | ₹67.40 |
| 50+ | ₹10.72 | ₹536.00 |
| 150+ | ₹9.33 | ₹1,399.50 |
| 500+ | ₹8.28 | ₹4,140.00 |
| 2,500+ | ₹7.46 | ₹18,650.00 |
| 5,000+ | ₹7.04 | ₹35,200.00 |
5 × ₹13.48
₹67.40
excl. GST
₹79.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL082IBS
₹67.40 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 2.5nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.129 g
Overview
TL082 is a high-speed JFET-input dual operational amplifier constructed with high-voltage JFETs and bipolar transistors. It features high slew rate, low input bias current, low offset current, and low offset voltage temperature coefficient. The device is available in SOP8 and DIP8 packages.
Applications
- Industrial control electronics
- White goods
- Mobile electronic devices
Key features
- Low power consumption: 1.4mA per channel
- Wide common-mode input voltage range
- Wide differential input voltage range
- Low input bias current: 200pA
- Low input offset current: 50pA
- Output short-circuit protection
- Low distortion: ~0.003%
- High input impedance
- High slew rate: 13V/μs
- High gain-bandwidth product: 3MHz
