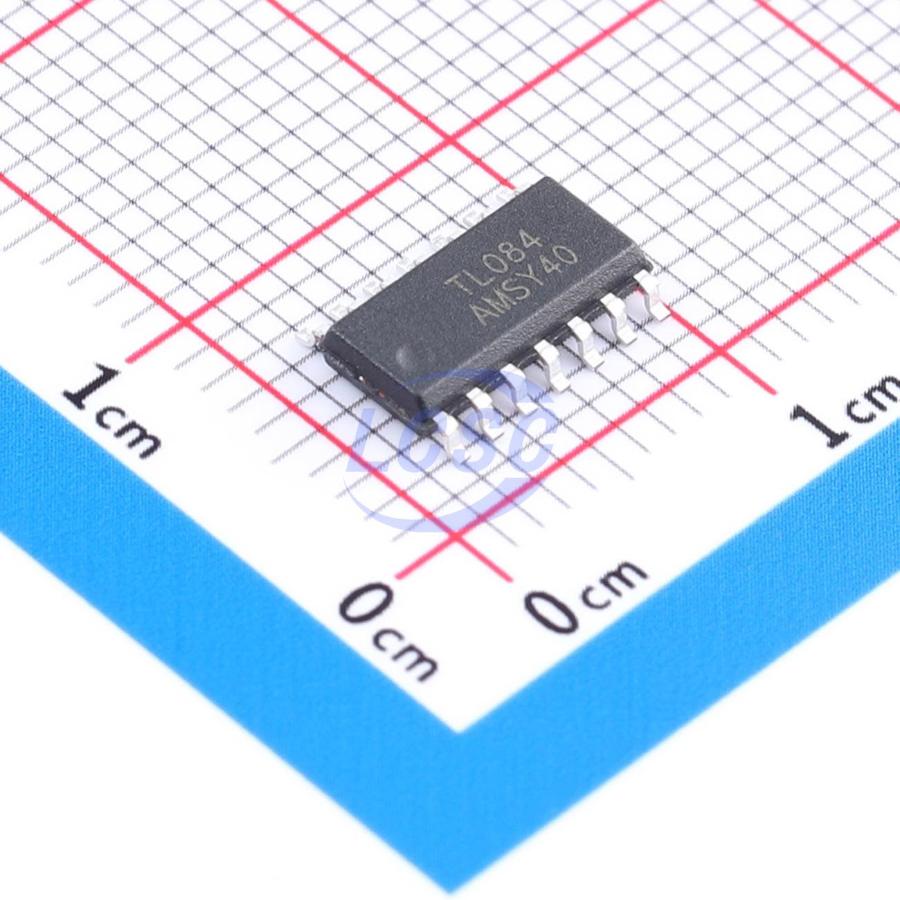

TL084-P14
60mA 4 2mV 13V/us 200pA 95dB 3MHz 1.4mA SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- Shikues
- Manufacturer part #
- TL084-P14
- Store part #
- C53467546
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,935 in stock
#C53467546
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.68 | ₹163.40 |
| 50+ | ₹25.81 | ₹1,290.50 |
| 150+ | ₹22.87 | ₹3,430.50 |
| 500+ | ₹19.21 | ₹9,605.00 |
| 2,500+ | ₹17.57 | ₹43,925.00 |
| 5,000+ | ₹16.59 | ₹82,950.00 |
5 × ₹32.68
₹163.40
excl. GST
₹192.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TL084-P14
₹163.40 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -20℃~+85℃
- Ib - Input Bias Current
- 200pA
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Gain Bandwidth Product
- 3MHz
- Quiescent Current
- 1.4mA
- Features
- Short-Circuit Protection
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.324 g
Overview
TL084 is a high-speed JFET-input quad operational amplifier comprising high-voltage JFETs and bipolar transistors. It features high slew rate, low input bias current, low input offset current, and low offset voltage temperature coefficient. The TL084 is available in SOP-14 and DIP-14 packages.
Applications
- White goods
- Mobile electronic devices
Key features
- Low power consumption: 1.4mA/channel
- Wide common-mode input voltage range
- Wide differential input voltage range
- Low input bias current: 200pA
- Low input offset current: 50pA
- Output short-circuit protection
- Low distortion: ~0.003%
- High input impedance
- High slew rate: 13V/μs
- High gain-bandwidth product: 3MHz
