STDatasheet (PDF)

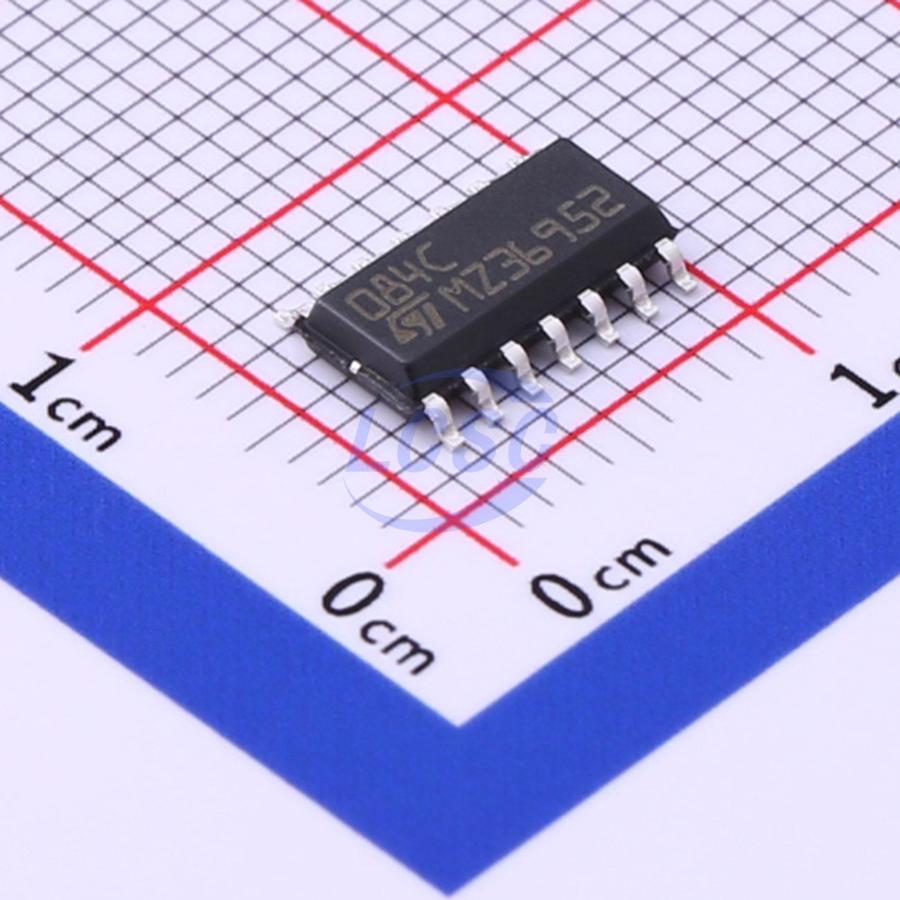

TL084CDT
40mA Four channels 3mV 16V/us 86dB 20pA 1.4mA 4MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
JFET quad operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TL084CDT
- Store part #
- C11130
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,00,000 in stock
#C11130
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.07 | ₹150.35 |
| 50+ | ₹23.44 | ₹1,172.00 |
| 150+ | ₹20.61 | ₹3,091.50 |
| 500+ | ₹17.07 | ₹8,535.00 |
| 2,500+ | ₹12.20 | ₹30,500.00 |
| 5,000+ | ₹11.25 | ₹56,250.00 |
5 × ₹30.07
₹150.35
excl. GST
₹177.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL084CDT
₹150.35 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 16V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 4MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Single Supply
- 6V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Overview
The TL084, TL084A and TL084B are high-speed JFET input quad operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Key features
- Wide common-mode (up to VCC+) and differential voltage range
- Low input bias and offset current
- Output short-circuit protection
- High input impedance JFET input stage
- Internal frequency compensation
- Latch up free operation
- High slew rate: 16V/µs (typ)
