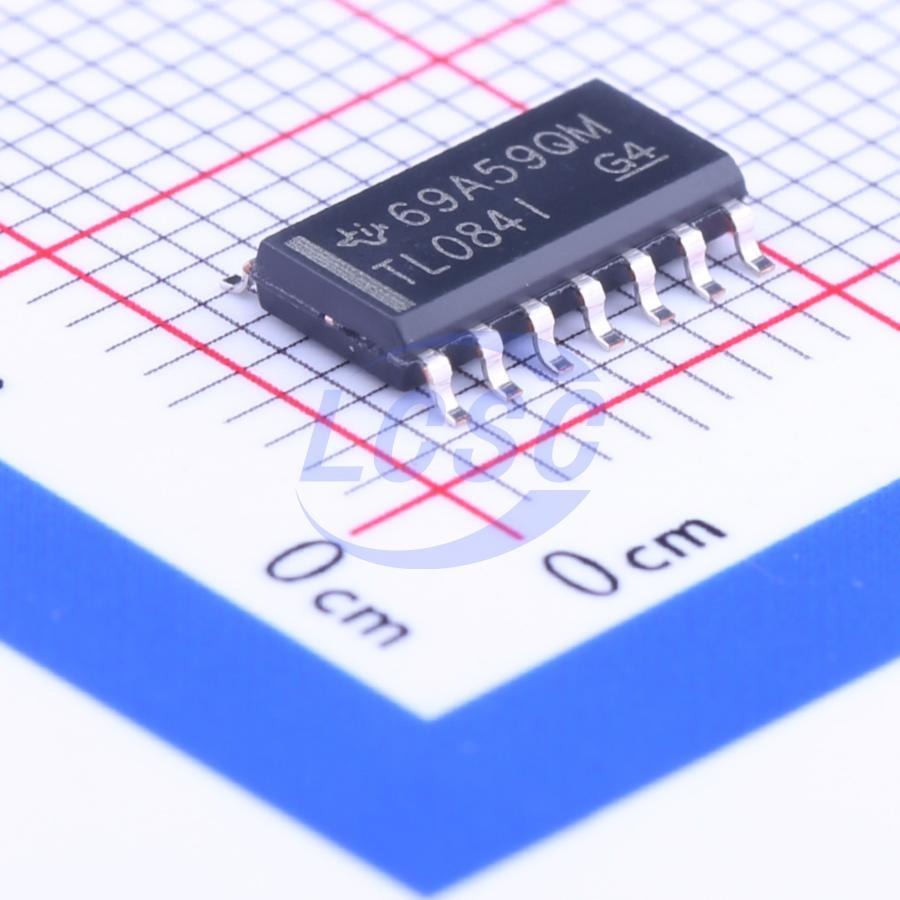

TL084IDR
Four channels 15mV 13V/us 86dB 200pA 1.4mA 3MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
JFET-Input Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL084IDR
- Store part #
- C12601
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,035 in stock
#C12601
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.72 | ₹118.60 |
| 50+ | ₹18.66 | ₹933.00 |
| 150+ | ₹16.19 | ₹2,428.50 |
| 500+ | ₹12.88 | ₹6,440.00 |
| 2,500+ | ₹12.28 | ₹30,700.00 |
| 5,000+ | ₹11.91 | ₹59,550.00 |
5 × ₹23.72
₹118.60
excl. GST
₹139.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL084IDR
₹118.60 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 15mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 200pA
- Input Offset Voltage Drift(Vos TC)
- 7.5uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection;Latch-up suppression
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
Key features
- Low Power Consumption: 1.4 mA/ch Typ
- Wide Common-Mode and Differential Voltage Ranges
- Low Input Bias Current: 30 pA Typ
- Low Input Offset Current: 5 pA Typ
- Output Short-Circuit Protection
- Low Total Harmonic Distortion: 0.003% Typ
- High Input Impedance: JFET Input Stage
- Latch-Up-Free Operation
- High Slew Rate: 13 V/μs Typ
- Common-Mode Input Voltage Range Includes VCC+
