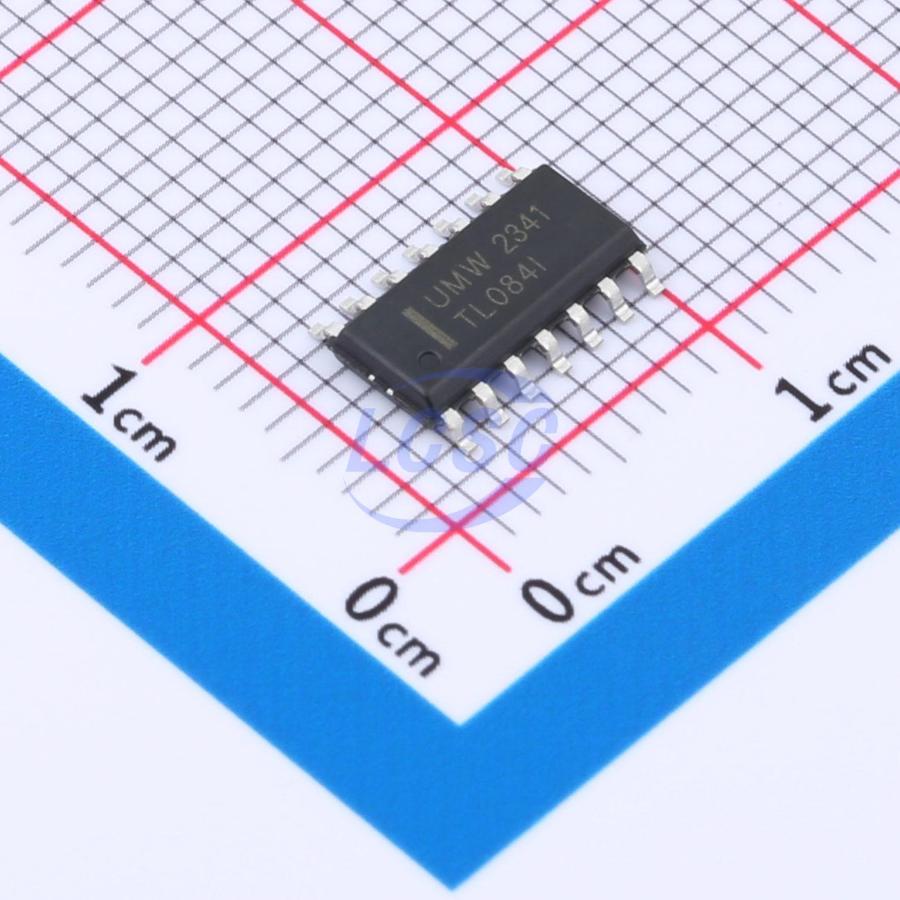

UMW

TL084IDR(UMW)

60mA Four channels 13mV 13.5V/us 20nA 75dB 4MHz 2.5mA SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-14ROHS CompliantActive

J-FET quad operational amplifier

Manufacturer: UMW
Manufacturer part #: TL084IDR(UMW)
Store part #: C18212289
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,270 in stock

#C18212289

Stock & price checked 13 h ago

Quantity	Unit price	Pack price
5+	₹25.36	₹126.80
50+	₹19.75	₹987.50
150+	₹17.34	₹2,601.00
500+	₹14.34	₹7,170.00
2,500+	₹13.01	₹32,525.00
5,000+	₹12.21	₹61,050.00

Quantity (min 5, multiples of 5)

5 × ₹25.36

₹126.80

excl. GST

₹149.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TL084IDR(UMW)

₹126.80 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: Four channels
Vos - Input Offset Voltage: 13mV
Slew Rate: 13.5V/us
Input Offset Current(Ios): 4nA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 20nA
Common Mode Rejection Ratio(CMRR): 75dB
Gain Bandwidth Product: 4MHz
Quiescent Current: 2.5mA
Features: Short-Circuit Protection;Built-in compensation
Input Voltage Noise Density: 15nV/√Hz@1kHz
Dual Supply: -18V~18V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.316 g

Overview

UMW TL084 is a high-speed operational amplifier featuring four JFET inputs, constructed with high-voltage JFETs and bipolar transistors. The device offers high slew rate, low input bias and offset currents, and a low temperature coefficient of offset voltage.
