TIDatasheet (PDF)

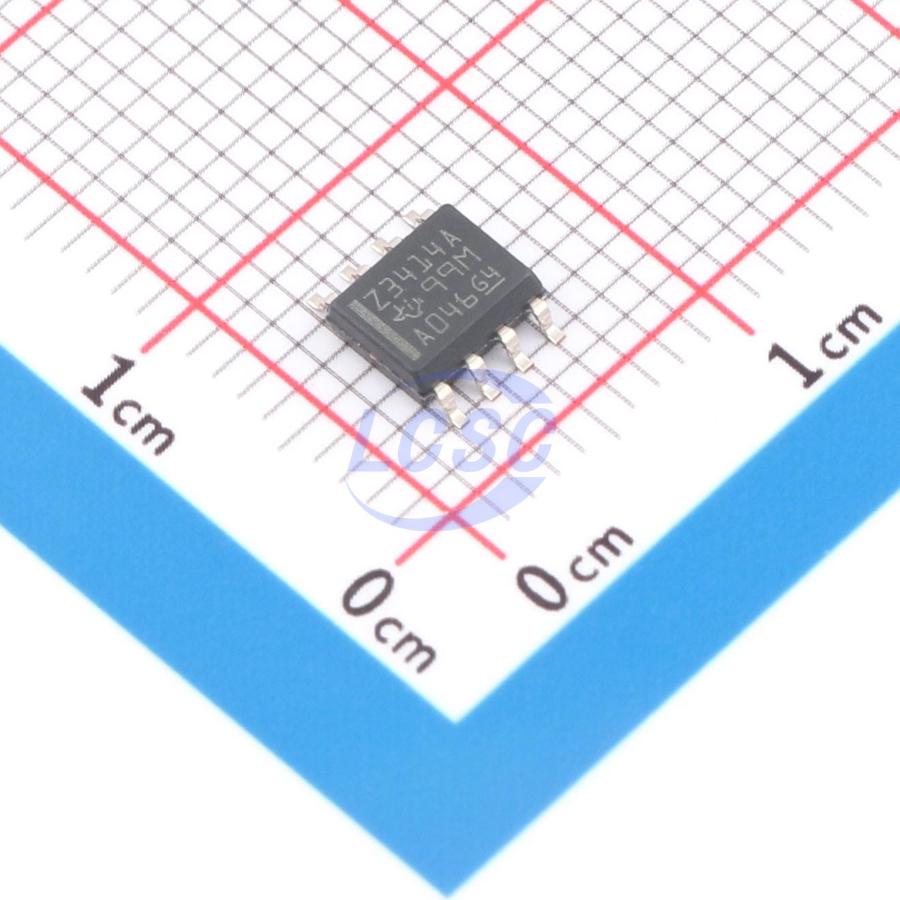

TL3414AIDR
70mA 2 2mV 830V/ms 79dB 300nA 4mA 1.1MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Dual High-Output-Current Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- TL3414AIDR
- Store part #
- C2868704
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,507 in stock
#C2868704
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.84 | ₹144.84 |
| 10+ | ₹116.87 | ₹1,168.70 |
| 30+ | ₹102.77 | ₹3,083.10 |
| 100+ | ₹88.91 | ₹8,891.00 |
| 500+ | ₹80.44 | ₹40,220.00 |
| 1,000+ | ₹76.11 | ₹76,110.00 |
1 × ₹144.84
₹144.84
excl. GST
₹170.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL3414AIDR
₹144.84 for 1 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 830V/ms
- Input Offset Current(Ios)
- 100nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 79dB
- Ib - Input Bias Current
- 300nA
- Quiescent Current
- 4mA
- Gain Bandwidth Product
- 1.1MHz
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -7.5V~-1.5V;1.5V~7.5V
- Single Supply
- 3V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.489 g
Overview
The TL3414A device is a dual operational amplifier that can be operated with single or dual power supplies. In addition to high gain and high output voltage swing, it is capable of driving a 70-mA load, making it ideally suited for simple, low-cost audio-amplifier applications, such as headphone amplifiers in DVD and CDRW applications.
Applications
- Headphone Drivers
- Audio-amplifier applications
- Headphone amplifiers in DVD and CDRW applications
Key features
- Single/Dual Power-Supply Operation
- High Output Current ... 70 mA, VCC+ = 5 V
- Wide Operating Voltage ... 3 to 15 V (Single Supply)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL3414M/TR#C19193480HGSEMI · SOP-8 | HGSEMI | SOP-8 | 10 | ₹29.56 · 10 in stock | View |
 | COS9162SRB#C19193260COSINE · SOP-8 | COSINE | SOP-8 | 1,372 | ₹40.03 · 1,372 in stock | View |
 | LMC6482IDT#C2058286ST · SOP-8 | ST | SOP-8 | On request | ₹317.76 · 0 in stock | View |
 | TLV272IS-13#C2057285DIODES · SO-8 | DIODES | SO-8 | 2,470 | ₹63.66 · 2,470 in stock | View |
 | UPC842G2-E1-A#C22412104RENESAS · SOP-8 | RENESAS | SOP-8 | 42 | ₹300.60 · 42 in stock | View |
