TIDatasheet (PDF)

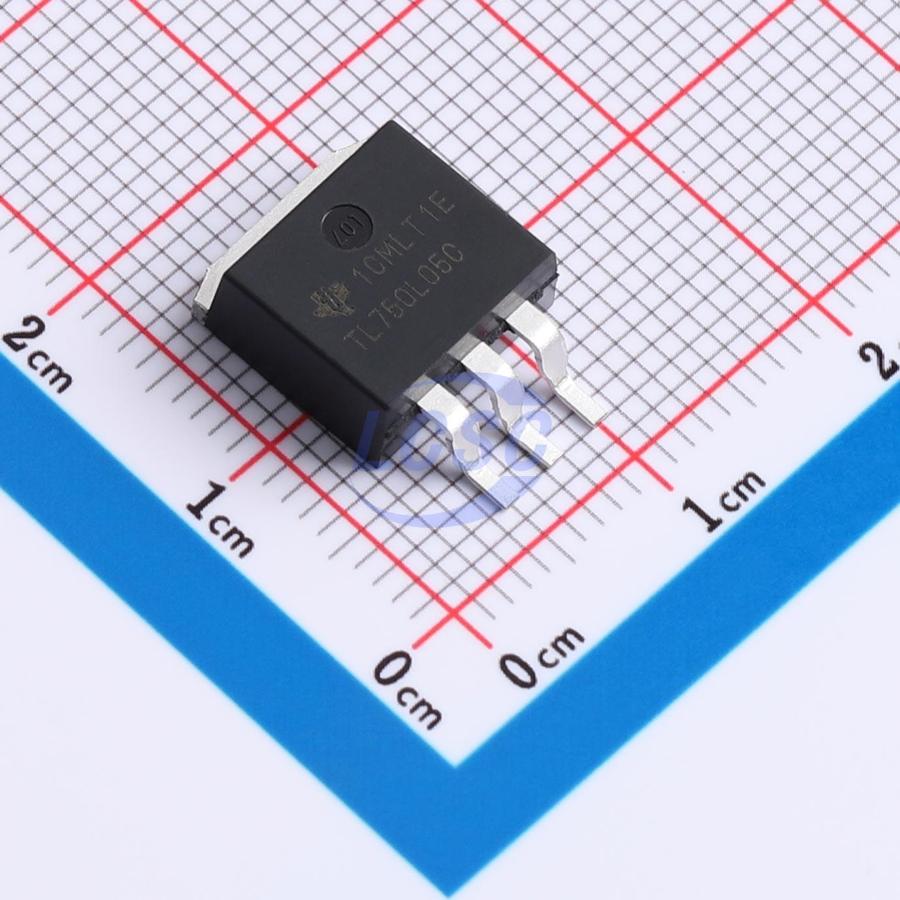

TL750L05CKTTR
5V Positive Fixed DDPAK-3(TO-263-3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DDPAK-3(TO-263-3)ROHS3 CompliantActive
150mA, 26V, Low Dropout Regulator
- Manufacturer
- TI
- Manufacturer part #
- TL750L05CKTTR
- Store part #
- C2867775
- Package / case
- DDPAK-3(TO-263-3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C2867775
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹841.39 | ₹841.39 |
| 10+ | ₹819.33 | ₹8,193.30 |
| 30+ | ₹804.64 | ₹24,139.20 |
| 100+ | ₹789.94 | ₹78,994.00 |
1 × ₹841.39
₹841.39
excl. GST
₹992.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
TL750L05CKTTR
₹841.39 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Positive
- Operating Voltage
- 26V
- Output Current
- 150mA
- Features
- Input overvoltage protection;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.84 g
Overview
The TL750L and TL751L series of fixed-output voltage regulators offer 5-V, 8-V, 10-V, and 12-V options. The TL751L series also has an enable (ENABLE) input. When ENABLE is high, the regulator output is placed in the high-impedance state. This gives the designer complete control over power up, power down, or emergency shutdown. The TL750L and TL751L series are low-dropout positive-voltage regulators specifically designed for battery-powered systems. These devices incorporate overvoltage and current-limiting protection circuitry, along with internal reverse-battery protection circuitry to protect the devices and the regulated system. The series is fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current during full-load conditions makes these devices ideal for standby power systems.
Key features
- Very Low Dropout Voltage, Less Than 0.6 V at 150 mA
- Very Low Quiescent Current
- TTL- and CMOS-Compatible Enable on TL751L Series
- Reverse Transient Protection Down to –50 V
- Internal Thermal-Overload Protection
- Overvoltage Protection
- Internal Overcurrent-Limiting Circuitry
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7805CD2T-TR#C15077ST · TO-263-2 | ST | TO-263-2 | 4,659 | ₹55.58 · 4,659 in stock | View |
 | LM7805S2/TR#C2902505HGSEMI · TO-263-2 | HGSEMI | TO-263-2 | On request | ₹38.37 · 0 in stock | View |
 | LM7805CS2/TR#C7432232HGSEMI · TO-263-2 | HGSEMI | TO-263-2 | 275 | ₹40.79 · 275 in stock | View |
 | MC7805BD2TG#C233214onsemi · D2PAK | onsemi | D2PAK | 25 | ₹100.56 · 25 in stock | View |
 | L7805CD2T(UMW)#C347293UMW · TO-263 | UMW | TO-263 | 9,870 | ₹30.75 · 9,870 in stock | View |
