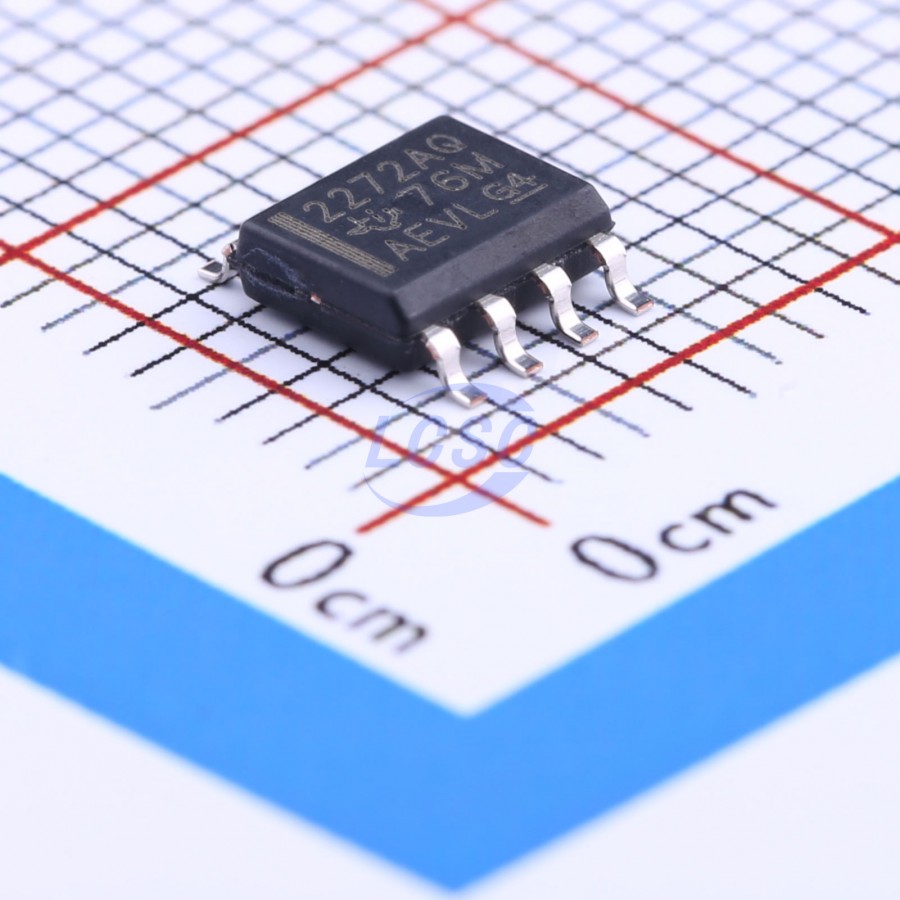

TLC2272AQDRQ1

The TLC2272-Q1 and TLC2274-Q1 devices are dual and quadruple operational amplifiers. Both devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLC227x-Q1 family offers 2 MHz of bandwidth and 3 V/µs of slew rate for higher-speed applications. These devices offer comparable AC performance while having better noise, input offset voltage, and power dissipation than existing CMOS operational amplifiers. The TLC227x‑Q1 has a noise voltage of 9 nV/√Hz, two times lower than competitive solutions. The TLC227x-Q1, exhibiting high input impedance and low noise, is excellent for small-signal conditioning for high-impedance sources, such as piezoelectric transducers. In addition, the rail-to-rail output feature, with single- or split-supplies, makes this family a great choice when interfacing with analog-to-digital converters (ADCs). For precision applications, the TLC227xA-Q1 family is available with a maximum input offset voltage of 950 µV. This family is fully characterized at 5 V and ±5 V. They offer increased output dynamic range, lower noise voltage, and lower input offset voltage. This enhanced feature set allows them to be used in a wider range of applications. All of the parameters of the TLC227x-Q1 family enables the device to be applicable in most automotive applications.

Applications

• Gear Boxes
• Transmission Control
• On-Board Chargers
• Body Control Modules
• Steering Angle Sensors
• Electric Power Steering
• Engine Control Units
• Airbags
• Blind Spot Detection
• Clusters
• Car Audio
• Navigation Systems
• White Goods (Refrigerators, Washing Machines)

Key features

• Device Temperature Grade: -40°C to 125°C Ambient Operating Temperature Range
• Device HBM ESD Classification Level 2
• Device CDM ESD Classification Level C6
• Output Swing Includes Both Supply Rails
• Low Noise: 9 nV/√Hz Typical at f = 1 kHz
• Low Input Bias Current: 1 pA Typical
• Fully Specified for Both Single-Supply and Split-Supply Operation
• Common-Mode Input Voltage Range Includes Negative Rail
• High-Gain Bandwidth: 2.2 MHz Typical
• High Slew Rate: 3.6 V/µs Typical
• Low Input Offset Voltage 950 µV Maximum at TA = 25°C
• Macromodel Included
