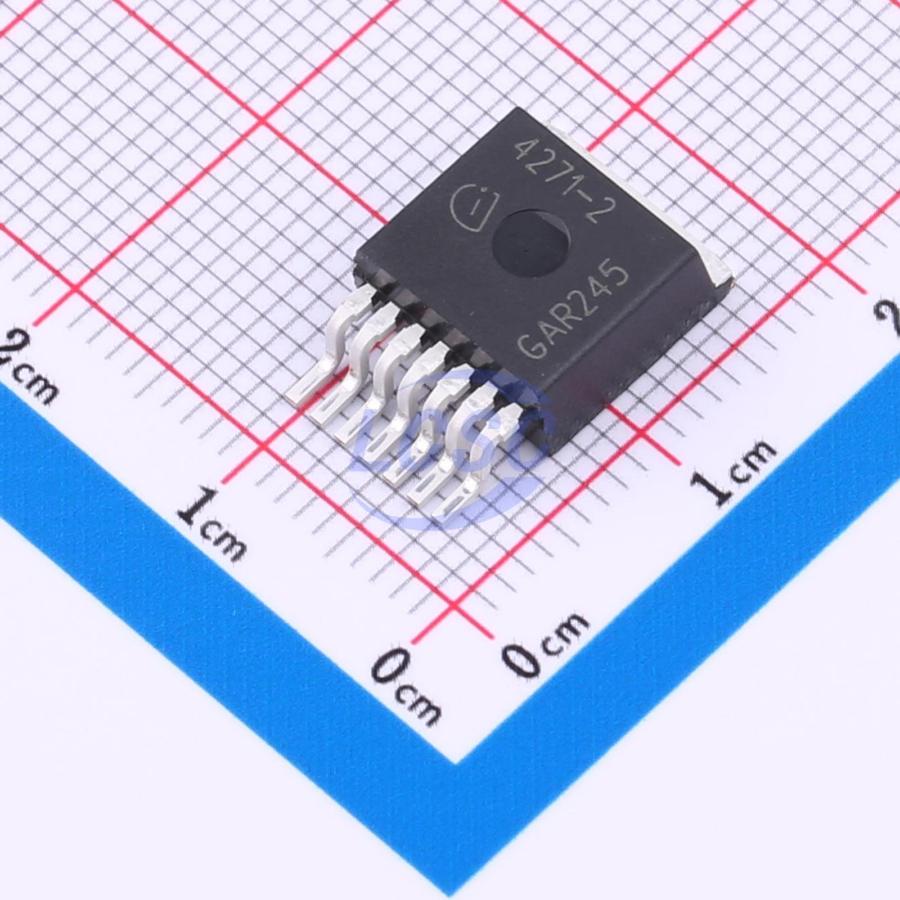

TLE42712GATMA1
Linear Voltage Regulator IC Positive Fixed 1 Output 550mA TO-263-7
TO-263-7ROHS3 CompliantActive
5-V Low Dropout Fixed Voltage Regulator
- Manufacturer
- Infineon
- Manufacturer part #
- TLE42712GATMA1
- Store part #
- C3751686
- Package / case
- TO-263-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C3751686
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹274.73 | ₹274.73 |
| 10+ | ₹232.45 | ₹2,324.50 |
| 30+ | ₹206.00 | ₹6,180.00 |
| 100+ | ₹178.90 | ₹17,890.00 |
| 500+ | ₹166.75 | ₹83,375.00 |
| 1,000+ | ₹161.34 | ₹1,61,340.00 |
1 × ₹274.73
₹274.73
excl. GST
₹324.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TLE42712GATMA1
₹274.73 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 800uA
- Output Configuration
- Positive
- Output Current
- 550mA
- Operating Voltage
- 40V
- Features
- Enable control;Reset function;Watchdog timer;Input overvoltage protection;Reverse polarity voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
The OPTIREG Linear TLE4271-2 is functional and electrical identical to TLE4271. The device is a 5-V low drop fixed voltage regulator. The maximum input voltage is 42 V (65 V, ≤400 ms). Up to an input voltage of 26 V and for an output current up to 550 mA it regulates the output voltage within a 2% accuracy. The short circuit protection limits the output current of more than 650 mA. The IC can be switched off via the inhibit input. An integrated watchdog monitors the connected controller. The device incorporates overvoltage protection and temperature protection that disables the circuit at overtemperature.
Applications
- General automotive applications.
Key features
- Output voltage tolerance ≤±2%
- Low-drop voltage
- Integrated overtemperature protection
- Reverse polarity protection
- Input voltage up to 42 V
- Overvoltage protection up to 65 V (≤ 400 ms)
- Short-circuit proof
- Suitable for use in automotive electronics
- Wide temperature range
- Adjustable reset and watchdog time
- Green Product (RoHS compliant)
