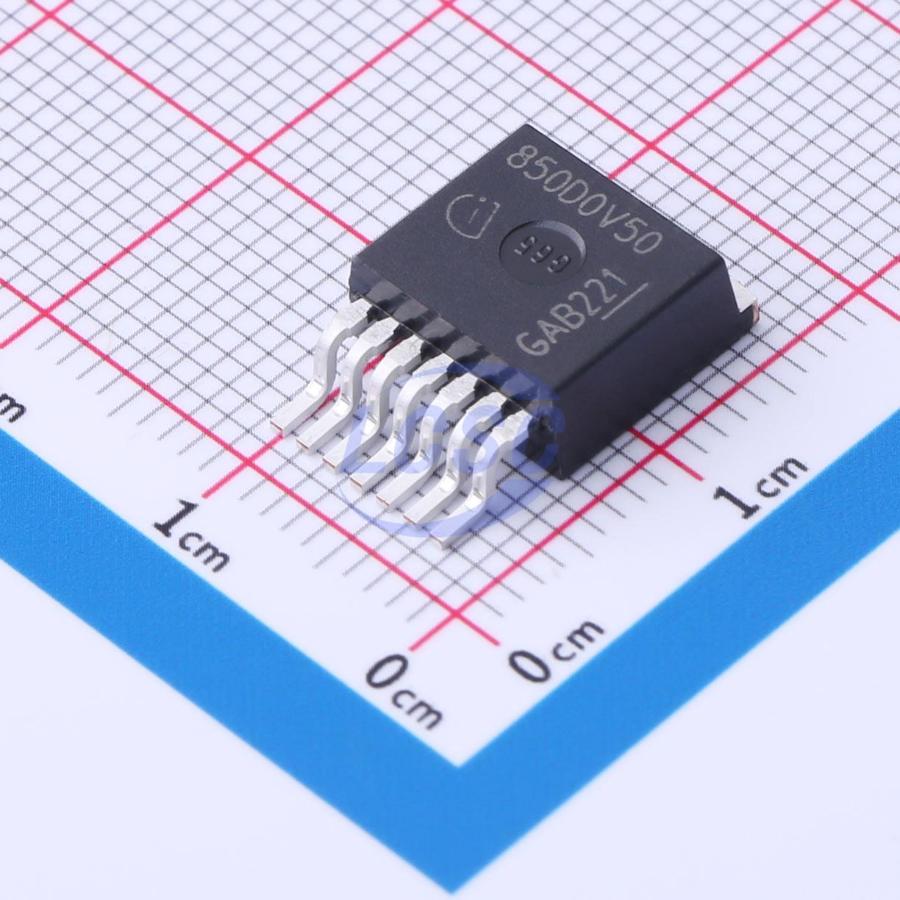

TLS850D0TAV50ATMA1

The TLS850D0TA is a high performance very low dropout linear voltage regulator for 5 V (TLS850D0V50) or 3.3 V (TLS850D0V33) supply in a PG-TO263-7 package. With an input voltage range of 3 V to 40 V and very low quiescent of only 40 μA, these regulators are perfectly suitable for automotive or any other supply systems connected to the battery permanently. The TLS850D0TA provides an output voltage accuracy of 2 % and a maximum output current up to 500 mA. The new loop concept combines fast regulation and very good stability while requiring only one small ceramic capacitor of 1 μF at the output. At currents below 100 mA the device will have a very low typical dropout voltage of only 70 mV (for 5 V device) and 80 mV (for 3.3 V device). The operating range starts already at input voltages of only 3 V (extended operating range). This makes the TLS850D0TA also suitable to supply automotive systems that need to operate during cranking condition. The device can be switched on and off by the Enable feature. The output voltage is supervised by the Reset feature, including Undervoltage Reset, delayed Reset at Power-On and an adjustable lower Reset Threshold. Internal protection features like output current limitation and overtemperature shutdown are implemented to protect the device against immediate damage due to failures like output short circuit to GND, over-current and over-temperatures.

Key features

• Wide Input Voltage Range from 3.0 V to 40 V
• Fixed Output Voltage 5 V or 3.3 V Output Voltage Precision ≤±2 %
• Output Current Capability up to 500 mA
• Ultra Low Current Consumption typ. 40 μA
• Very Low Dropout Voltage typ. 70 mV @ 100 mA
• Stable with Ceramic Output Capacitor of 1 µF
• Delayed Reset at Power-On with 2 Programmable Delay Times 8.5 ms / 16.5 ms
• Adjustable Reset Threshold down to 2.50 V
• Enable, Undervoltage Reset, Overtemperature Shutdown
• Output Current Limitation
• Wide Temperature Range
• Green Product (RoHS compliant) AEC Qualified
