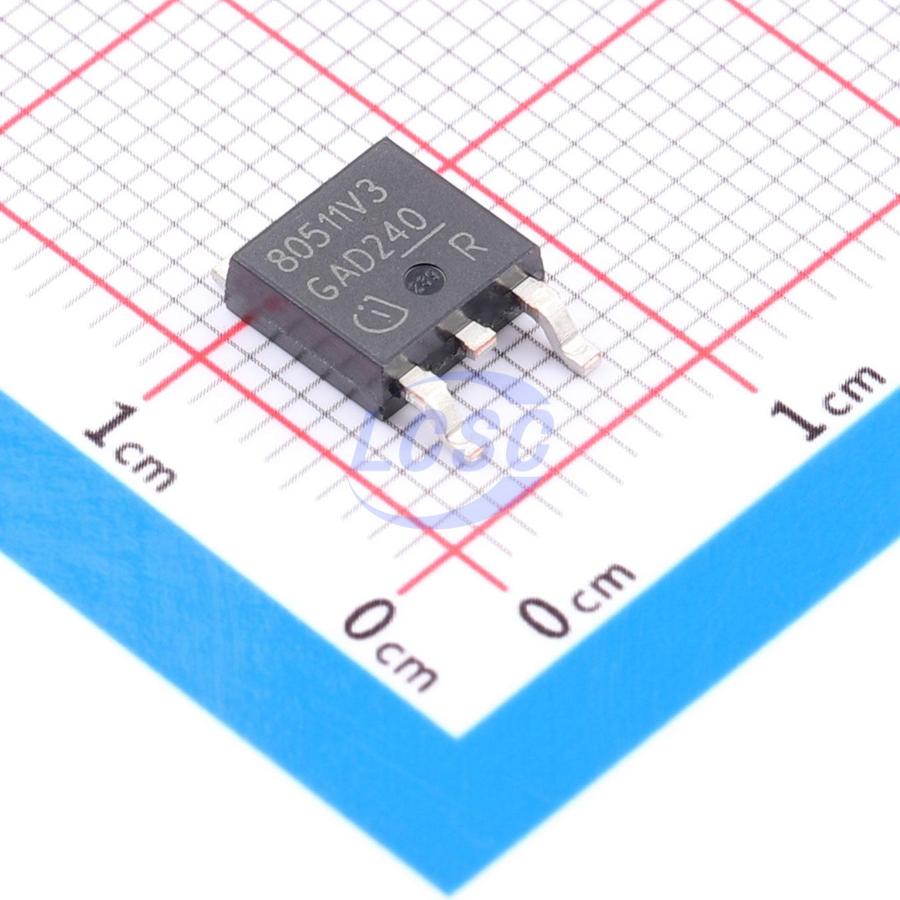

TLF80511TF V33

A linear low dropout voltage regulator for load currents up to 400 mA. An input voltage of up to 40 V is regulated to VQ,nom = 5 V (TLF80511TFV50) or V0,nom = 3.3 V (TLF80511TFV33) with ±2 % precision. With a typical quiescent current of 38 μA, it is the ideal solution for systems requiring very low operating currents, such as those permanently connected to a battery. It features a very low dropout voltage of 100 mV, when the output current is less than 100 mA. In addition, the dropout region begins at input voltages of 3.3 V (extended operating range). This makes it suitable to supply automotive systems. The new fast regulation concept requires only a single, 1 μF output capacitor to maintain stable regulation. Designed for the harsh environment of automotive applications. Standard features like output current limitation and overtemperature shutdown are implemented and protect the device against failures like output short circuit to GND, over - current and over - temperatures. It can be also used in all other applications requiring a stabilized 5 V or 3.3 V supply voltage.

Key features

• Output Voltage 5 V and 3.3 V
• Output Voltage Precision ±2 %
• Output Current up to 400 mA
• Ultra Low Current Consumption 38 μA
• Very Low Dropout Voltage: 100 mV at 100 mA Output Current
• Extended Operating Range Starting at 3.3 V
• Small Output Capacitor 1 μF
• Output Current Limitation
• Overtemperature Shutdown
• Suitable for Use in Automotive Electronics
• Wide Temperature Range from -40 °C up to 150 °C
• Green Product (RoHS compliant)
• AEC Qualified
