InfineonDatasheet (PDF)

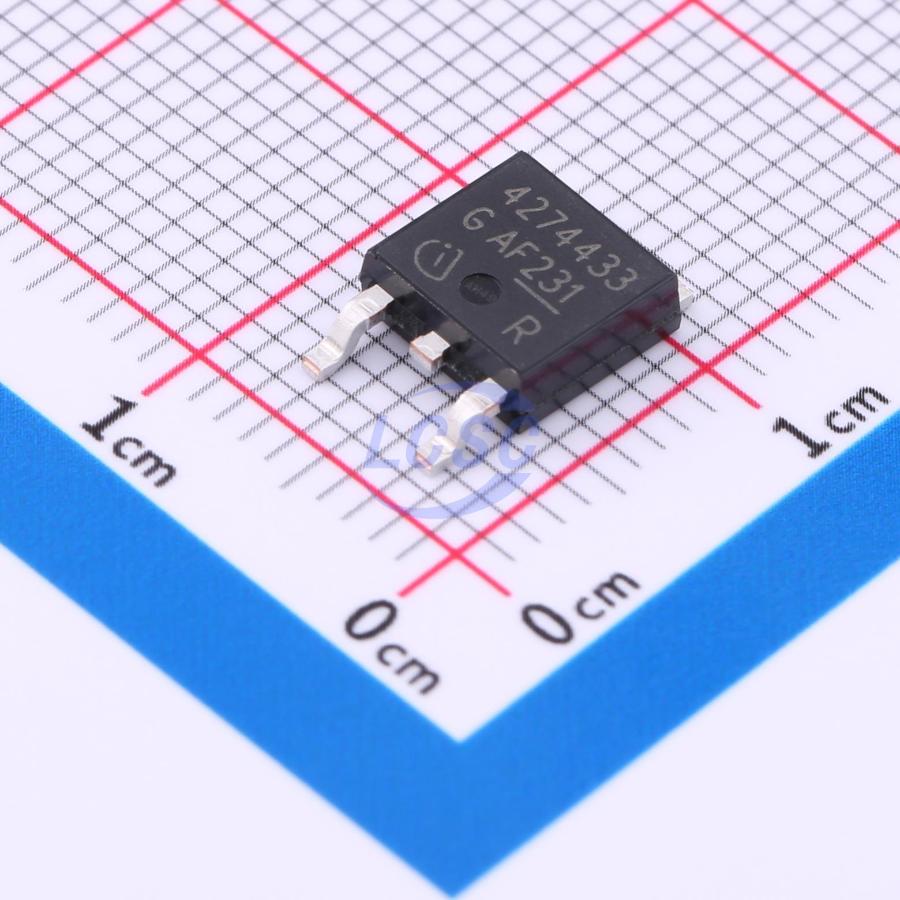

TLE42744D V33
3.3V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS CompliantActive
Low Dropout Linear Voltage Regulator
- Manufacturer
- Infineon
- Manufacturer part #
- TLE42744D V33
- Store part #
- C539707
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,190 in stock
#C539707
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.54 | ₹122.54 |
| 10+ | ₹99.73 | ₹997.30 |
| 30+ | ₹88.20 | ₹2,646.00 |
| 100+ | ₹73.65 | ₹7,365.00 |
| 500+ | ₹66.92 | ₹33,460.00 |
| 1,000+ | ₹63.44 | ₹63,440.00 |
1 × ₹122.54
₹122.54
excl. GST
₹144.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLE42744D V33
₹122.54 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 220uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 400mA
- Features
- Over Current Protection;Reverse polarity voltage protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
The TLE42744 is a monolithic integrated low dropout voltage regulator for load currents up to 400 mA. An input voltage up to 40 V is regulated to VQ,nom = 5 V / 3.3 V with a precision of ±2%. The device is designed for the harsh environment of automotive applications. Therefore it is protected against overload, short circuit and overtemperature conditions by the implemented output current limitation and the overtemperature shutdown circuit. The TLE42744 can be also used in all other applications requiring a stabilized 5 V / 3.3 V voltage. Due to its very low quiescent current the TLE42744 is dedicated for use in applications permanently connected to VBAT.
Key features
- Very Low Current Consumption
- Output Voltages 5 V and 3.3 V ±2%
- Output Current up to 400 mA
- Very Low Dropout Voltage
- Output Current Limitation
- Reverse Polarity Protection
- Overtemperature Shutdown
- Wide Temperature Range From -40 °C up to 150 °C
- Green Product (RoHS compliant)
- AEC Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV4274ADT33RKG#C145520onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 3 | ₹177.89 · 3 in stock | View |
| TLE4274D V33#C539713Infineon · TO-252-3 | Infineon | TO-252-3 | 14 | ₹143.20 · 14 in stock | View | |
 | NCV4274CDT33RKG#C603927onsemi · TO-252(DPAK) | onsemi | TO-252(DPAK) | 2,259 | ₹94.96 · 2,259 in stock | View |
 | BD433M5FP-CE2#C442601ROHM · TO-252 | ROHM | TO-252 | 1,918 | ₹103.22 · 1,918 in stock | View |
 | BD733L5FP-CE2#C509724ROHM · TO-252 | ROHM | TO-252 | 3,024 | ₹138.21 · 3,024 in stock | View |
