TLP7820(D4-TP4,E
8.2 20kV/us 900uV 80dB 55nA SO-8L Instrumentation, Op Amps, Buffer Amps
SO-8LRoHSActive
Photocouplers Optically Isolation Amplifiers
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TLP7820(D4-TP4,E
- Store part #
- C2991191
- Package / case
- SO-8L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,111 in stock
#C2991191
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹464.68 | ₹464.68 |
| 10+ | ₹395.35 | ₹3,953.50 |
| 30+ | ₹354.06 | ₹10,621.80 |
| 100+ | ₹312.55 | ₹31,255.00 |
| 500+ | ₹293.20 | ₹1,46,600.00 |
| 1,500+ | ₹284.51 | ₹4,26,765.00 |
1 × ₹464.68
₹464.68
excl. GST
₹548.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel

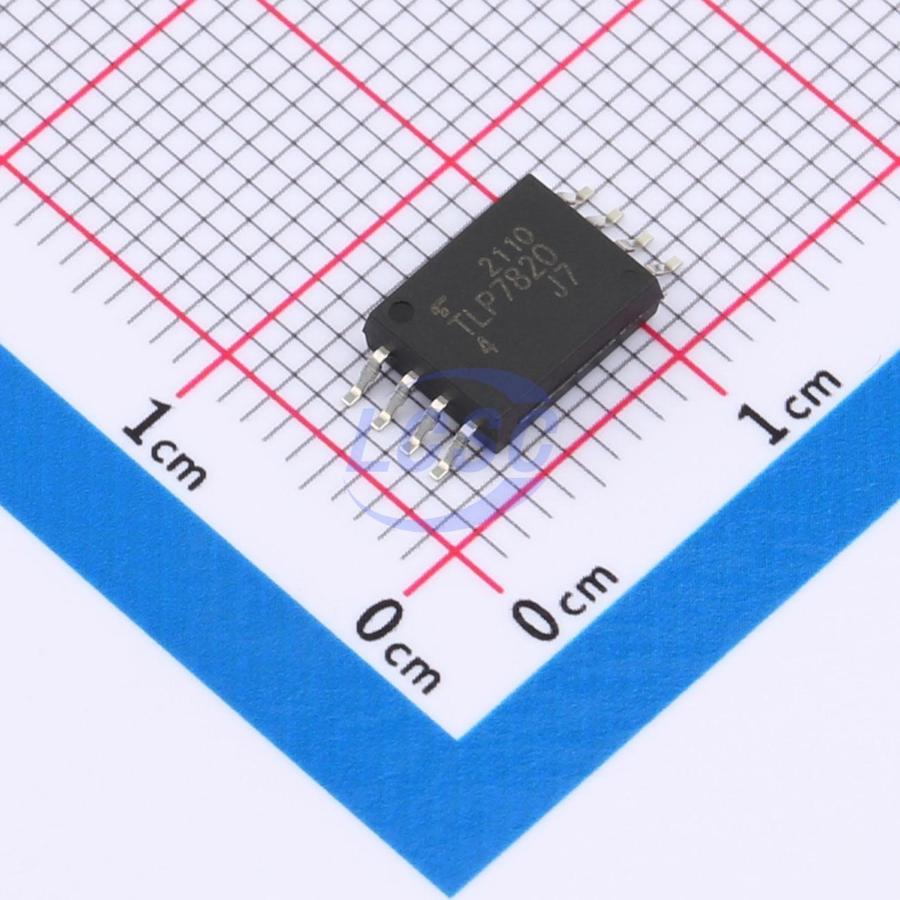

TLP7820(D4-TP4,E
₹464.68 for 1 + GST
Specifications
- Voltage - Supply(Output)
- 3V~5.5V
- output type
- Differential
- Gain
- 8.2
- CMTI(kV/us)
- 20kV/us
- Vos - Input Offset Voltage
- 900uV
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 55nA
- Isolation Voltage(Vrms)
- 5000
- Voltage - Supply(Input)
- 4.5V~5.5V
- -3dB Bandwidth
- 230kHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.592 g
Overview
The TLP7820 of isolation amplifiers is designed for current sensing in electronic motor drives. In a typical implementation, motor currents flow through an external resistor and the resulting analog voltage drop is sensed by the TLP7820.
Applications
- Motor phase and rail current sensing
- Power inverter current and voltage sensing
Key features
- Gain accuracy: ±0.5 % (Gain rank B)
- Gain drift: 0.00012 V/V/°C (typ.)
- Nonlinearity (VIN = ±200 mV): 0.02 % (typ.)
- Input offset voltage: 0.9 mV (typ.)
- VOUT bandwidth (-3 dB): 230 kHz (typ.)
- Operating temperature range: -40 to 105 °C
- Common-mode transient immunity: 15 kV/μs (min)
- Safety standards UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN 60747-5-5, EN 62368-1 CQC-approved: GB4943.1, GB8898 Japan Factory
