TIDatasheet (PDF)

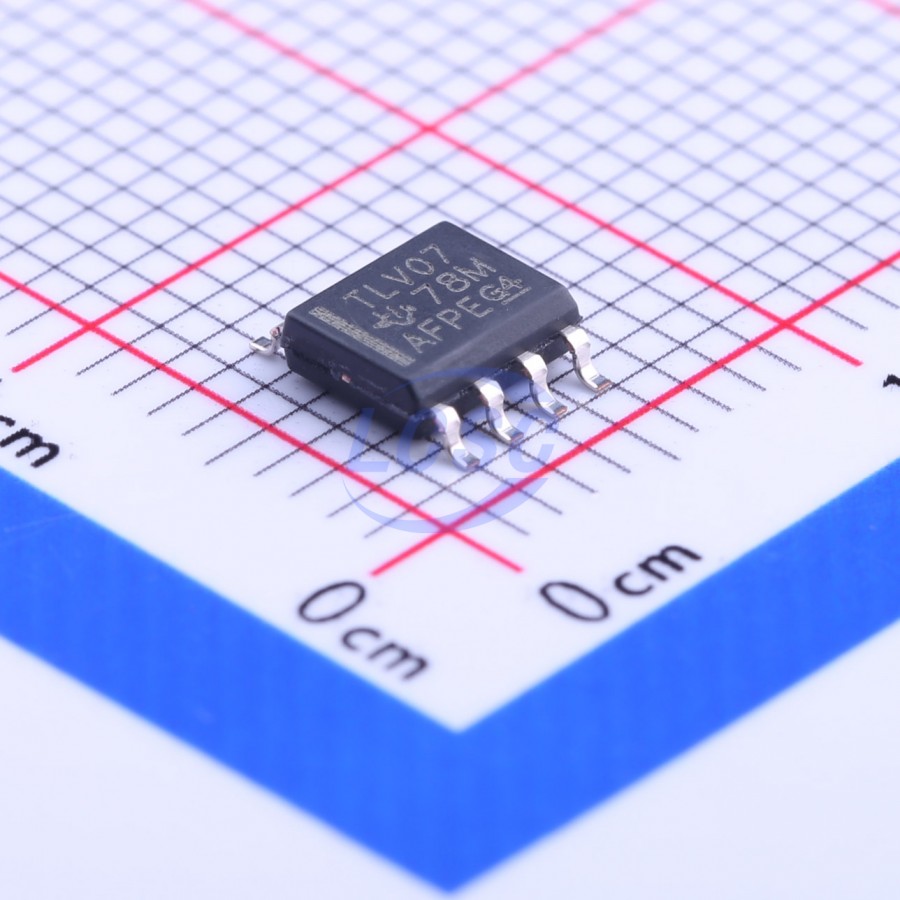

TLV07IDR
17mA 1 50uV 0.4V/us 120dB 40pA 930uA 1MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
36V single-supply, low-noise, precision rail-to-rail output operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- TLV07IDR
- Store part #
- C190218
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,721 in stock
#C190218
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.89 | ₹115.89 |
| 10+ | ₹93.97 | ₹939.70 |
| 30+ | ₹82.91 | ₹2,487.30 |
| 100+ | ₹72.06 | ₹7,206.00 |
| 500+ | ₹65.55 | ₹32,775.00 |
| 1,000+ | ₹62.08 | ₹62,080.00 |
1 × ₹115.89
₹115.89
excl. GST
₹136.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV07IDR
₹115.89 for 1 + GST
Specifications
- Output Current
- 17mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 50uV
- Slew Rate
- 0.4V/us
- Input Offset Current(Ios)
- 4pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 40pA
- Input Offset Voltage Drift(Vos TC)
- 900nV/℃
- Quiescent Current
- 930uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation;EMI filtering/RF suppression;Reverse-phase input protection;ESD protection
- Input Voltage Noise Density
- 19nV/√Hz@1kHz
- Dual Supply
- -18V~-1.35V;1.35V~18V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The TLV07 device is a 36V, single-supply, low-noise, precision operational amplifier manufactured using laser-trimmed op-amp technology. The input offset voltage of each amplifier is trimmed during production to achieve a low offset voltage of 100μV (maximum). The TLV07 features excellent DC accuracy and AC performance, including rail-to-rail output, low offset voltage (maximum ±100μV), and a 1MHz bandwidth. The TLV07 remains stable with a gain of G = 1 and capacitive loads up to 200pF. The inputs can operate 100mV below the negative supply rail and within 2V of the positive supply rail. This wide input voltage range, combined with a high CMRR of 120dB, makes the TLV07 well-suited for operation in non-inverting configurations. The TLV07 operational amplifier is rated for operation over a temperature range of -40°C to +125°C.
Applications
- Battery testers
- Tracking amplifiers in power modules
- Commercial power inverter amplifiers
- Temperature measurement strain gauge amplifiers
Key features
- Low offset voltage: 100μV (max)
- Rail-to-rail output
- Low noise: 19nV/√Hz
- Unity-gain stable
- RFI filtered inputs
- Input range includes negative supply
- Gain bandwidth: 1MHz
- Low quiescent current: 930μA
- Full industrial temperature range: -40°C to +125°C
- Industry-standard 8-pin SOIC package
