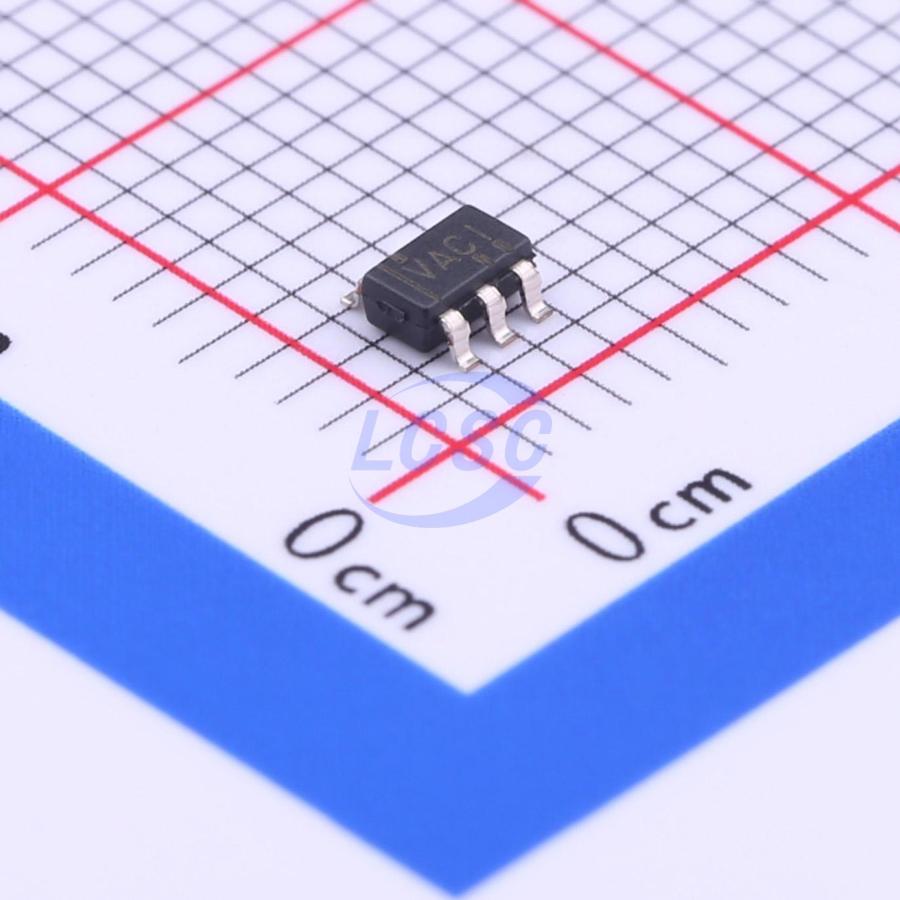

TLV2211IDBVR

The TLV2211 is a single low-voltage operational amplifier available in the SOT-23 package. It consumes only 11 μA (typ) of supply current and is ideal for battery-power applications. The TLV2211 has a 3-V noise level of 22 nV/√Hz at 1kHz; 5 times lower than competitive SOT-23 micropower solutions. The device exhibits rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLV2211 is fully characterized at 3V and 5V and is optimized for low-voltage applications. The TLV2211, exhibiting high input impedance and low noise, is excellent for small-signal conditioning for high-impedance sources, such as piezoelectric transducers. Because of the micropower dissipation levels combined with 3-V operation, these devices work well in hand-held monitoring and remote-sensing applications. In addition, the rail-to-rail output feature with single or split supplies makes this family a great choice when interfacing with analog-to-digital converters (ADCs). With a total area of 5.6 mm², the SOT-23 package only requires one-third the board space of the standard 8-pin SOIC package. This ultra-small package allows designers to place single amplifiers very close to the signal source, minimizing noise pick-up from long PCB traces. Both inputs are separated by GND to prevent coupling or leakage paths. The OUT and N- terminals are on the same end of the board to provide negative feedback. Finally, gain setting resistors and decoupling capacitor are easily placed around the package.

Applications

• Battery-power applications
• Hand-held monitoring and remote-sensing applications
• Interfacing with analog-to-digital converters (ADCs)

Key features

• Output Swing Includes Both Supply Rails
• Low Noise... 21 nV/√Hz Typ at f = 1 kHz
• Low Input Bias Current... 1 pA Typ
• Very Low Power... 11 μA Per Channel Typ
• Common-Mode Input Voltage Range Includes Negative Rail
• Wide Supply Voltage Range 2.7 V to 10 V
• Available in the SOT-23 Package
• Macromodel Included
