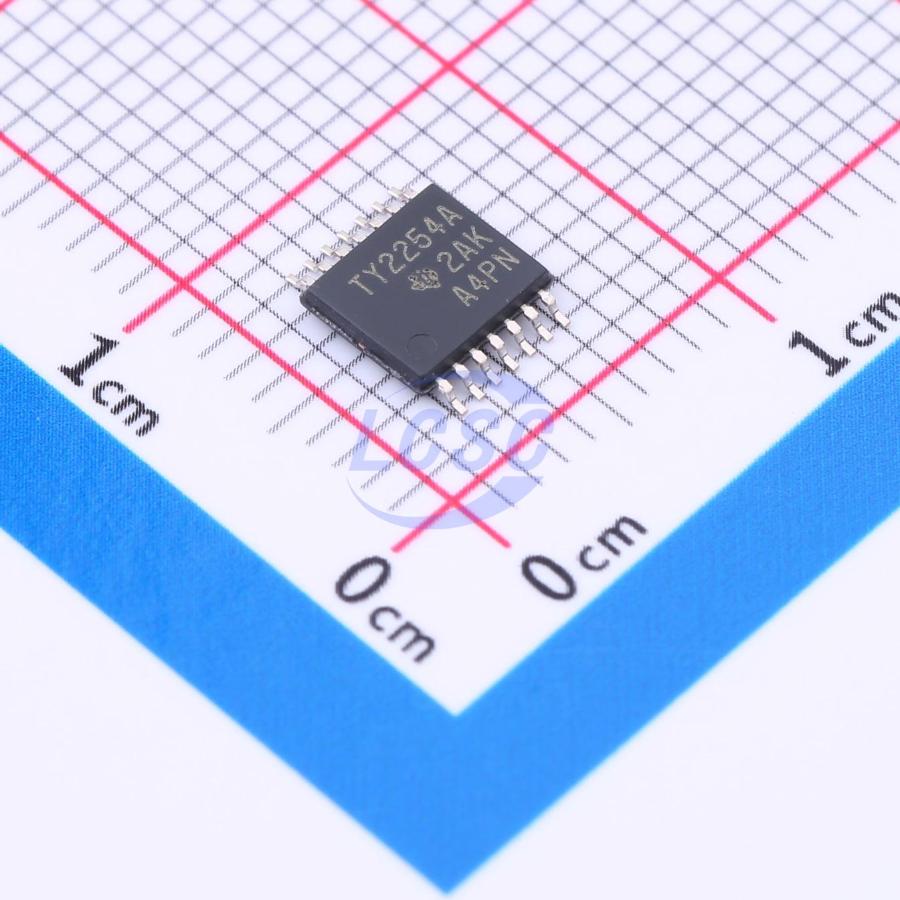

TLV2254AIPWR

The TLV2252 and TLV2254 are dual and quadruple low-voltage operational amplifiers. Both devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLV225x family consumes only 34 μA of supply current per channel. This micropower operation makes them good choices for battery-powered applications. This family is fully characterized at 3 V and 5 V and is optimized for low-voltage applications. The noise performance has been dramatically improved over previous generations of CMOS amplifiers. The TLV225x has a noise level of 19 nV/√Hz at 1kHz, four times lower than competitive micropower solutions. The TLV225x, exhibiting high input impedance and low noise, are excellent for small-signal conditioning for high-impedance sources, such as piezoelectric transducers. Because of the micropower dissipation levels combined with 3-V operation, these devices work well in hand-held monitoring and remote-sensing applications. In addition, the rail-to-rail output feature with single or split supplies makes this family a great choice when interfacing with analog-to-digital converters (ADCs). For precision applications, the TLV225xA family is available and has a maximum input offset voltage of 850 μV. The TLV2252/4 also make great upgrades to the TLV2322/4 in standard designs. They offer increased output dynamic range, lower noise voltage, and lower input offset voltage. This enhanced feature set allows them to be used in a wider range of applications.

Applications

• Battery-powered applications
• Small-signal conditioning for high-impedance sources, such as piezoelectric transducers
• Hand-held monitoring and remote-sensing applications
• Interfacing with analog-to-digital converters (ADCs)
• Precision applications
• Standard designs as an upgrade to TLV2322/4

Key features

• Output Swing Includes Both Supply Rails
• Low Noise... 19 nV/√Hz Typ at f = 1 kHz
• Low Input Bias Current... 1 pA Typ
• Fully Specified for Both Single-Supply and Split-Supply Operation
• Very Low Power... 34 μA Per Channel Typ
• Common-Mode Input Voltage Range Includes Negative Rail
• Low Input Offset Voltage 850 μV Max at TA = 25°C
• Wide Supply Voltage Range 2.7 V to 8 V
• Macromodel Included
• Available in Q-Temp Automotive
• HighRel Automotive Applications Configuration Control / Print Support
• Qualification to Automotive Standards
