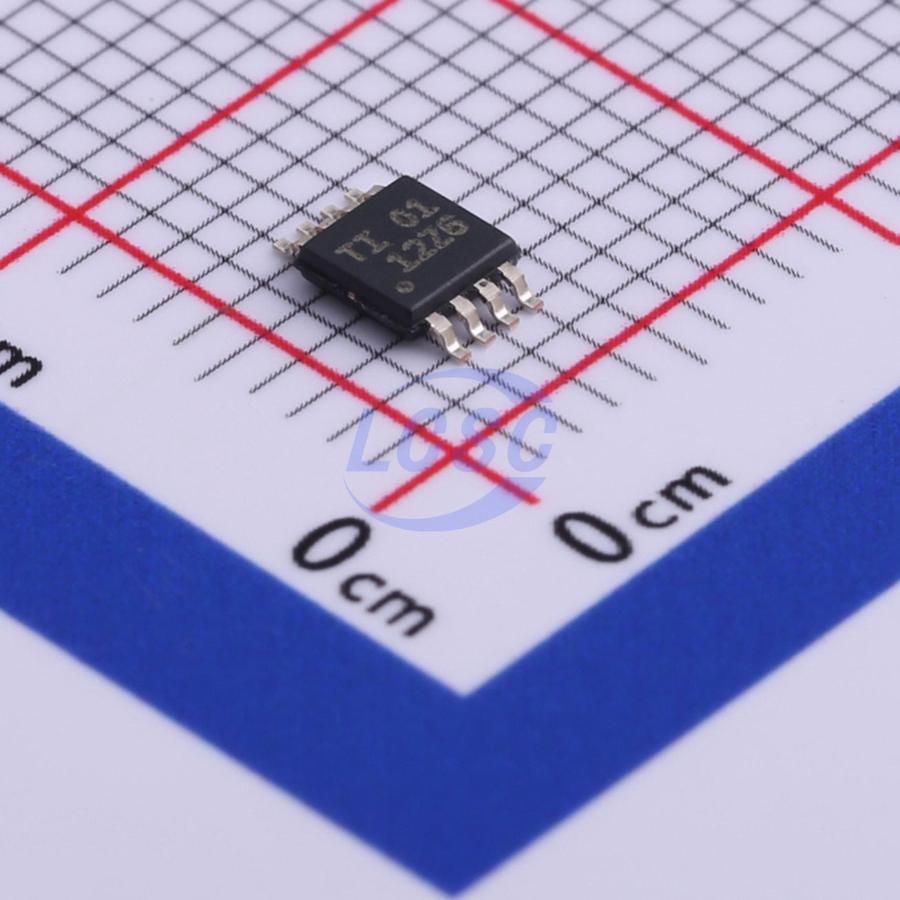

TLV2333IDGKR
5mA 2 2uV 0.16V/us 115dB 70pA 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
CMOS Operational Amplifiers Zero-Drift Series
- Manufacturer
- TI
- Manufacturer part #
- TLV2333IDGKR
- Store part #
- C527573
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,857 in stock
#C527573
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.54 | ₹126.54 |
| 10+ | ₹111.60 | ₹1,116.00 |
| 30+ | ₹105.10 | ₹3,153.00 |
| 100+ | ₹97.08 | ₹9,708.00 |
| 500+ | ₹91.01 | ₹45,505.00 |
| 1,000+ | ₹88.84 | ₹88,840.00 |
1 × ₹126.54
₹126.54
excl. GST
₹149.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV2333IDGKR
₹126.54 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 140pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Ib - Input Bias Current
- 70pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero;Reverse-phase input protection;Built-in compensation
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.055 g
Overview
The TLVx333 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the zero-drift family of amplifiers that uses a proprietary autocalibration technique to simultaneously provide low offset voltage (15 μV, max) and near-zero drift over time and temperature at only 28 μA (max) of quiescent current. The TLVx333 family features rail-to-rail input and output in addition to near-flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. These devices are optimized for low-voltage operation as low as 1.8 V (±0.9V) and up to 5.5 V (±2.75V).
Applications
- Battery-Powered Instruments
- Temperature Measurements
- Transducer Applications
- Electronic Scales
- Medical Instrumentation
- Handheld Test Equipment
- Current Sense
Key features
- Unmatched Price Performance
- Low Offset Voltage: 2 μV
- Zero Drift: 0.02 μV/°C
- Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
- Quiescent Current: 17 μA
- Supply Voltage: 1.8 V to 5.5 V
- Rail-to-Rail Input/Output
- Internal EMI Filtering microSize Packages: SOT23, SC70
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCS2333DMR2G#C603844onsemi · MSOP-8 | onsemi | MSOP-8 | 96 | ₹174.98 · 96 in stock | View |
 | TLV2333IDGKT#C131967TI · VSSOP-8 | TI | VSSOP-8 | On request | Price on request | Quote |
 | OPA2333AIDGKR#C19608TI · VSSOP-8 | TI | VSSOP-8 | 1,910 | ₹356.81 · 1,910 in stock | View |
 | OPA2330AIDGKT#C179742TI · VSSOP-8 | TI | VSSOP-8 | 7 | ₹160.24 · 7 in stock | View |
| OPA2333AQDGKRQ1#C180123TI · VSSOP-8 | TI | VSSOP-8 | 20 | ₹775.49 · 20 in stock | View | |
