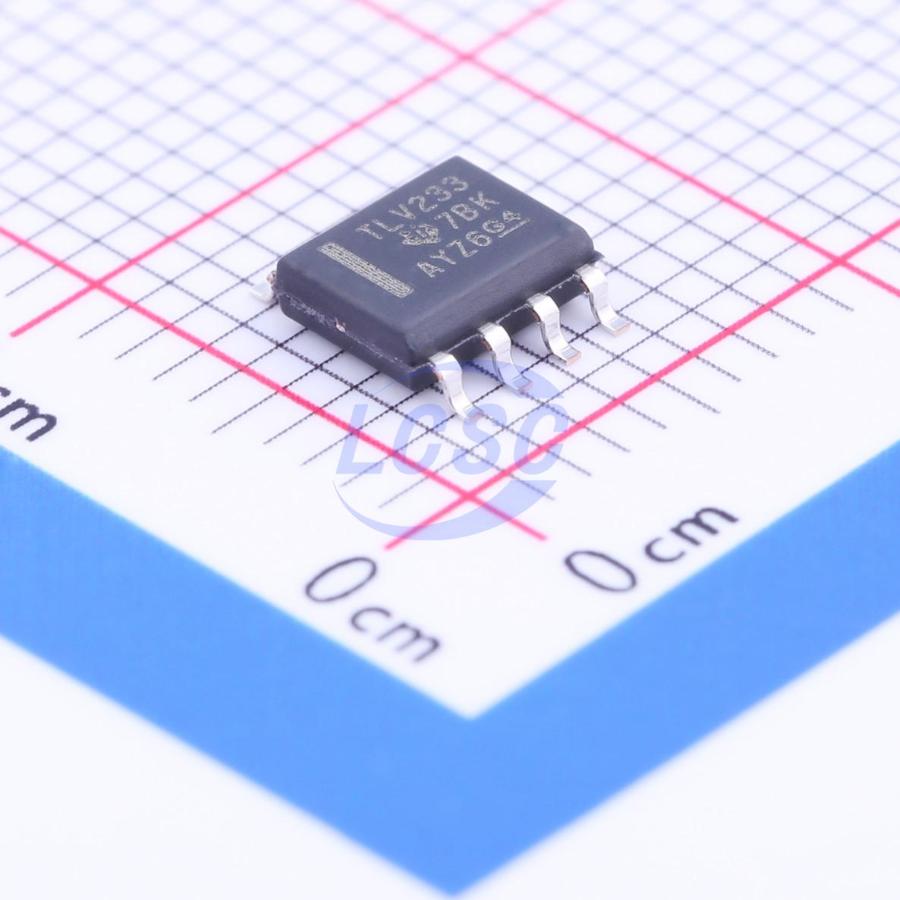

TLV2333IDR
5mA 2 2uV 0.16V/us 102dB 70pA 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
CMOS Operational Amplifiers Zero-Drift Series
- Manufacturer
- TI
- Manufacturer part #
- TLV2333IDR
- Store part #
- C176649
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38,595 in stock
#C176649
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.53 | ₹123.53 |
| 10+ | ₹95.75 | ₹957.50 |
| 30+ | ₹81.85 | ₹2,455.50 |
| 100+ | ₹67.95 | ₹6,795.00 |
| 500+ | ₹59.71 | ₹29,855.00 |
| 1,000+ | ₹55.58 | ₹55,580.00 |
1 × ₹123.53
₹123.53
excl. GST
₹145.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV2333IDR
₹123.53 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 140pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 102dB
- Ib - Input Bias Current
- 70pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero;Reverse-phase input protection
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The TLVx333 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the zero-drift family of amplifiers that uses a proprietary autocalibration technique to simultaneously provide low offset voltage (15 μV, max) and near-zero drift over time and temperature at only 28 μA (max) of quiescent current. The TLVx333 family features rail-to-rail input and output in addition to near-flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. These devices are optimized for low-voltage operation as low as 1.8 V (±0.9V) and up to 5.5 V (±2.75V).
Applications
- Battery-Powered Instruments
- Temperature Measurements
- Transducer Applications
- Electronic Scales
- Medical Instrumentation
- Handheld Test Equipment
- Current Sense
Key features
- Unmatched Price Performance
- Low Offset Voltage: 2 μV Zero Drift: 0.02 μV/°C
- Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
- Quiescent Current: 17 μA
- Supply Voltage: 1.8 V to 5.5 V
- Rail-to-Rail Input/Output
- Internal EMI Filtering microSize Packages: SOT23, SC70
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HGA2333M/TR#C3007935HGSEMI · SOP-8L | HGSEMI | SOP-8L | 23 | ₹76.69 · 23 in stock | View |
 | OPA2333M/TR#C3007939HGSEMI · SOP-8 | HGSEMI | SOP-8 | 922 | ₹47.92 · 922 in stock | View |
 | OPA2333AID#C2867243TI · SOIC-8 | TI | SOIC-8 | 371 | ₹142.25 · 371 in stock | View |
 | OPA2333AQDRQ1#C2060553TI · SOIC-8 | TI | SOIC-8 | 8 | ₹1,901.12 · 8 in stock | View |
| HGV2333M/TR#C30170078HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,717 | ₹37.40 · 1,717 in stock | View | |
