UMWDatasheet (PDF)

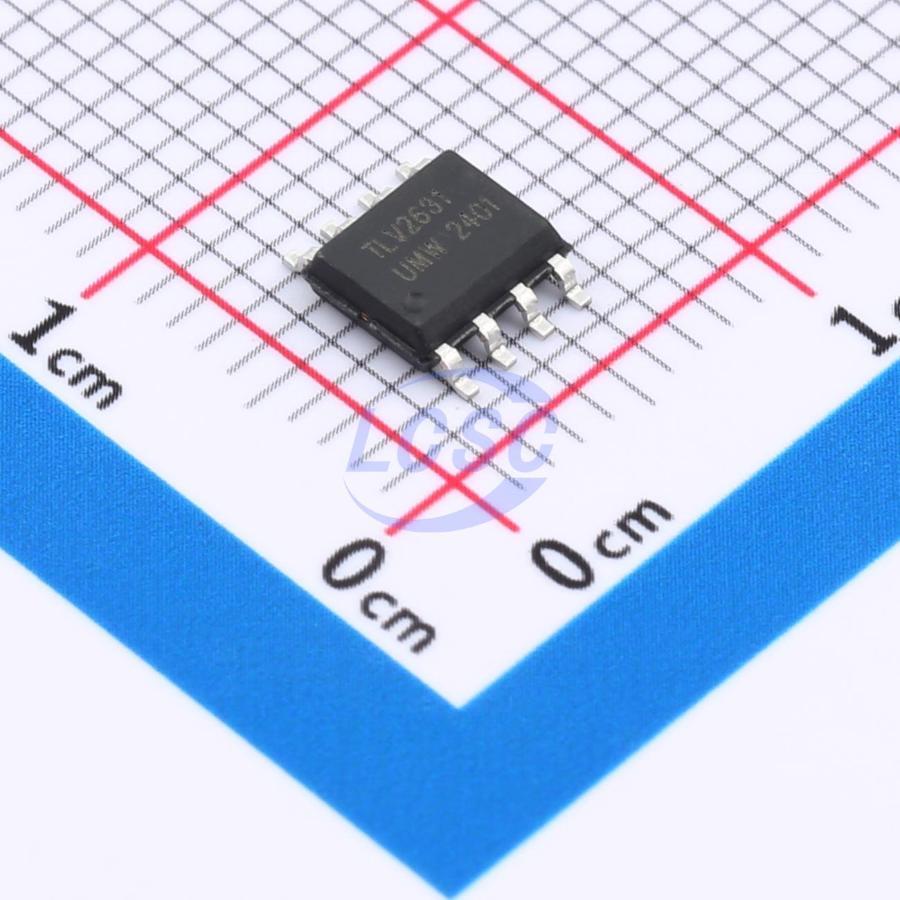

TLV2631ID(UMW)
28mA 1 250uV 6V/us 77dB 1pA 9MHz 730uA Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Low-Power Wide Bandwidth Single Supply Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- TLV2631ID(UMW)
- Store part #
- C22373373
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C22373373
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.62 | ₹133.10 |
| 50+ | ₹23.25 | ₹1,162.50 |
| 150+ | ₹21.81 | ₹3,271.50 |
| 500+ | ₹20.02 | ₹10,010.00 |
| 2,500+ | ₹19.22 | ₹48,050.00 |
| 5,000+ | ₹18.73 | ₹93,650.00 |
5 × ₹26.62
₹133.10
excl. GST
₹157.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV2631ID(UMW)
₹133.10 for 5 + GST
Specifications
- Output Current
- 28mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 250uV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 77dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Gain Bandwidth Product
- 9MHz
- Quiescent Current
- 730uA
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 50nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.187 g
Overview
The UMW TLV263x single-supply op amp provides rail-to-rail output with an input range that includes ground. The device extends operation down to a 2.7V minimum supply voltage over the industrial temperature range (−40°C to 125°C), while adding rail-to-rail output swing. The UMW TLV263x delivers 9 MHz gain bandwidth product while consuming only 730μA of supply current. The maximum recommended supply voltage of 5.5V, combined with the 2.7V minimum, allows the device to be powered from a lithium-ion battery. Its combination of wide bandwidth, low noise, and low distortion makes it ideal for high-speed, high-resolution data converter applications. The input range, which includes ground, allows direct interfacing with ground-referenced systems.
Key features
- Rail-to-rail output
- Input common-mode range includes ground
- Gain-bandwidth product: 9 MHz
- Supply current: 730μA/channel
- Available in single, dual, and quad versions
- Ultra-low power shutdown mode: IDD(SHDN) = 4μA/channel
- Specified operating temperature range: -40°C to 125°C (industrial grade)
- Supply voltage range: 2.7 V to 5.5 V
