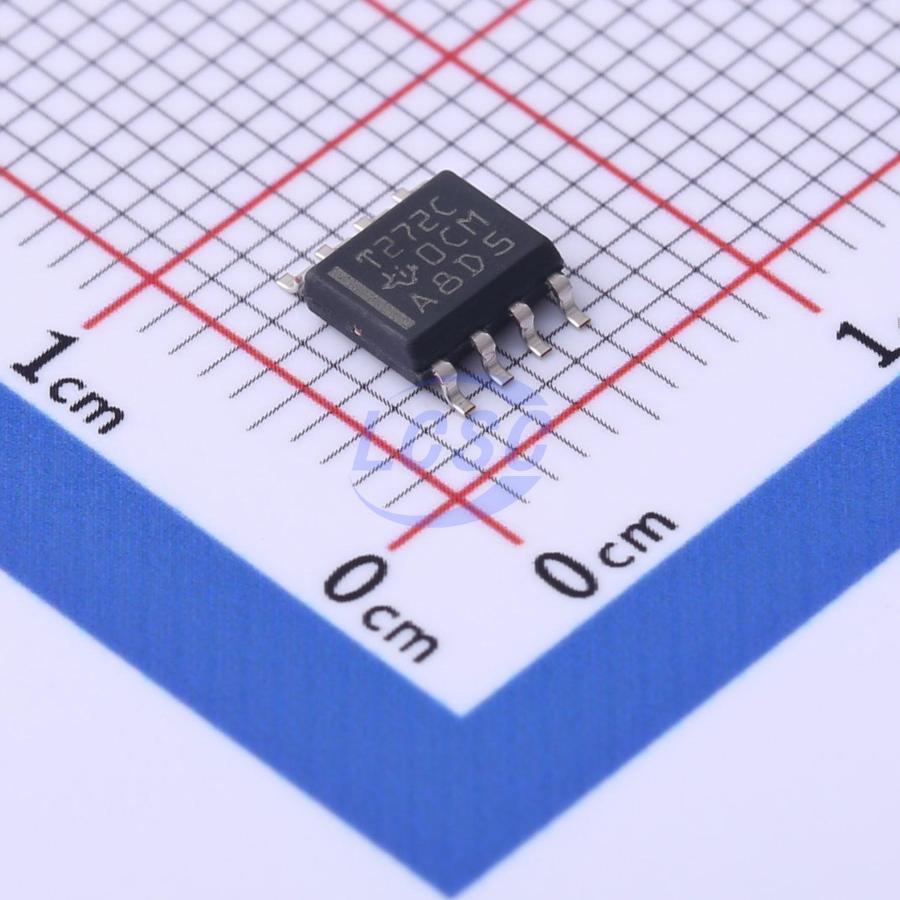

TLV272CDR

Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Output SOIC-8

SOIC-8ROHS3 CompliantActive

TLV27x series 550 μA/channel, 3 MHz, rail-to-rail output operational amplifiers

Manufacturer: TI
Manufacturer part #: TLV272CDR
Store part #: C2057291
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,633 in stock

#C2057291

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹103.43	₹103.43
10+	₹83.04	₹830.40
30+	₹72.86	₹2,185.80
100+	₹62.88	₹6,288.00
500+	₹56.81	₹28,405.00
1,000+	₹53.56	₹53,560.00

Quantity (min 1)

1 × ₹103.43

₹103.43

excl. GST

₹122.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLV272CDR

₹103.43 for 1 + GST

Specifications

Output Current: 7mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 2.4V/us
Input Offset Current(Ios): 1pA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 550uA
Gain Bandwidth Product: 3MHz
Input Voltage Noise Density: 39nV/√Hz@10kHz
Dual Supply: -8V~-1.35V;1.35V~8V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~16V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.12 g

Overview

Rail-to-rail output High bandwidth: 3 MHz High slew rate: 2.4 V/µs Supply voltage range: 2.7 V to 16 V Supply current: 550 µA per channel Input noise voltage: 39 nV/√Hz Input bias current: 1 pA Rated temperature range: – Commercial grade: 0°C to 70°C – Industrial grade: -40°C to 125°C Ultra-small packages: – 5-pin SOT-23 (TLV271) – 8-pin MSOP (TLV272) Ideal upgrade for the TLC72x series

Applications

Electric bicycles
Power banks
Smoke detectors
Solar inverters
Low-power motor control
Battery-powered instruments
Building automation

Key features

Rail-to-rail output
High bandwidth: 3MHz
High slew rate: 2.4V/µs
Supply voltage range: 2.7V to 16V
Supply current: 550µA/channel
Input noise voltage: 39nV/√Hz
Input bias current: 1pA
Rated temperature range:
Commercial grade: 0°C to 70°C
Industrial grade: -40°C to 125°C
Ultra-compact package:
5-pin SOT-23 (TLV271)
8-pin MSOP (TLV272)
Ideal upgrade for TLC72x series

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
COS9152SRA#C19193256COSINE · SOP-8	COSINE	SOP-8	785	₹61.47 · 785 in stock	View
COS2262SR#C726658COSINE · SOP-8	COSINE	SOP-8	405	₹52.31 · 405 in stock	View
COS2272SR#C726659COSINE · SOP-8	COSINE	SOP-8	2,465	₹44.98 · 2,465 in stock	View
TLV272ID#C1346274TI · SOIC-8	TI	SOIC-8	7	₹152.82 · 7 in stock	View
TLV2372IDR#C27204TI · SOIC-8	TI	SOIC-8	34,395	₹46.74 · 34,395 in stock	View
