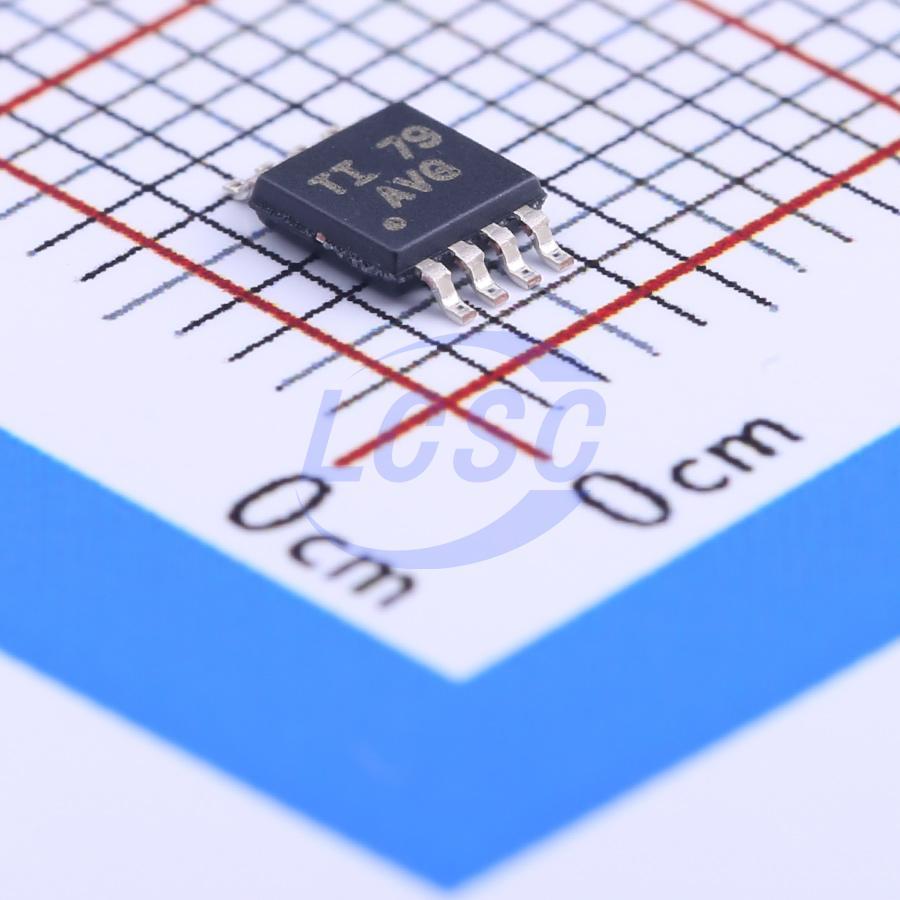

TLV272IDGKR

7mA 2 500uV 2.4V/us 70dB 1pA 3MHz 550uA Rail-to-rail output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

VSSOP-8ROHS3 CompliantActive

550-uA/Ch, 3-MHz, Rail-to-Rail Output Operational Amplifiers

Manufacturer: TI
Manufacturer part #: TLV272IDGKR
Store part #: C23919
Package / case: VSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,621 in stock

#C23919

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹143.03	₹143.03
10+	₹117.42	₹1,174.20
30+	₹104.61	₹3,138.30
100+	₹91.80	₹9,180.00
500+	₹80.52	₹40,260.00
1,000+	₹76.40	₹76,400.00

Quantity (min 1)

1 × ₹143.03

₹143.03

excl. GST

₹168.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLV272IDGKR

₹143.03 for 1 + GST

Specifications

Output Current: 7mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 2.4V/us
Input Offset Current(Ios): 60pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 3MHz
Quiescent Current: 550uA
Input Voltage Noise Density: 39nV/√Hz@1kHz
Dual Supply: -8V~-1.35V;1.35V~8V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~16V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.136 g

Overview

Operating from 2.7 V to 16 V over the extended industrial temperature range from -40°C to +125°C, the TLV27x is a low power, wide bandwidth operational amplifier (opamp) with rail to rail output. This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x provides 3-MHz bandwidth from only 550 µA. Like the TLC27x, the TLV27x is fully specified for 5-V and ±5-V supplies. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from a variety of rechargeable cells (±8 V supplies down to ±1.35 V). The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLC27x in battery-powered applications.
