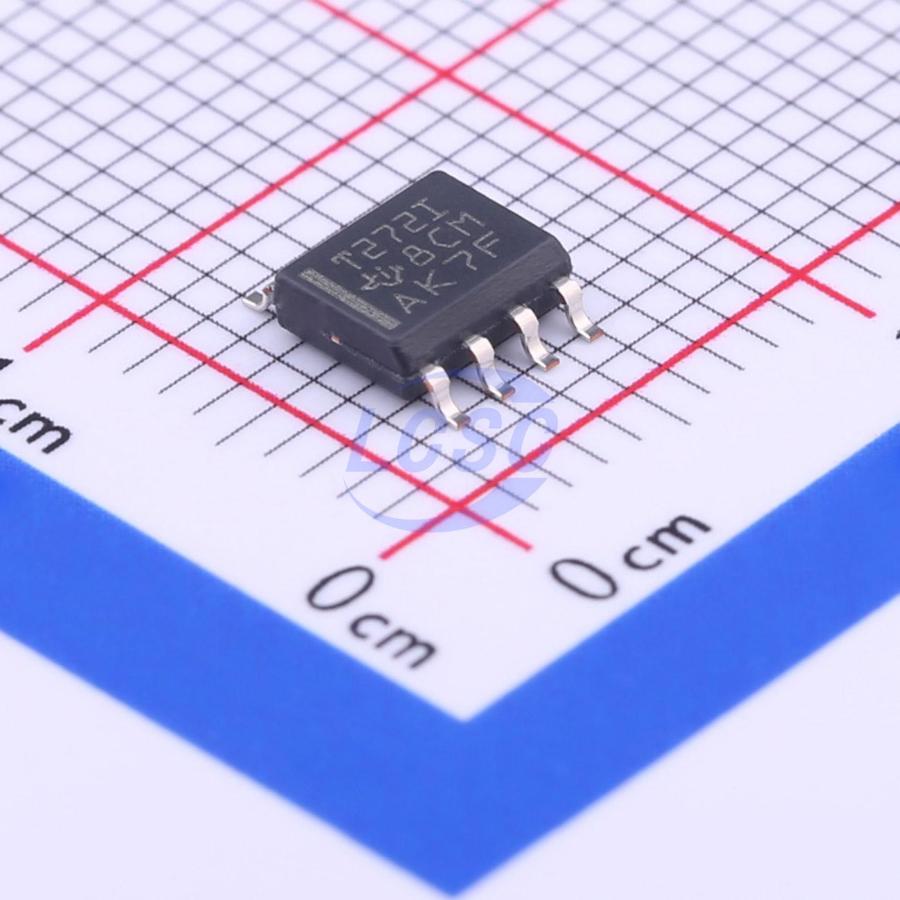

TLV272IDR

Operating from 2.7 V to 16 V over the extended industrial temperature range from -40°C to +125°C, the TLV27x is a low power, wide bandwidth operational amplifier (opamp) with rail to rail output. This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x provides 3-MHz bandwidth from only 550 μA. Like the TLC27x, the TLV27x is fully specified for 5-V and ±5-V supplies. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from a variety of rechargeable cells (±8 V supplies down to ±1.35 V). The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLC27x in battery-powered applications.

Applications

• E-Bike
• Power Banks
• Smoke detectors
• Solar Inverters
• Low-Power Motor Controls
• Battery-Powered Instruments
• Building Automation

Key features

• Rail-to-Rail Output
• Wide Bandwidth: 3 MHz
• High Slew Rate: 2.4 V/μs
• Supply Voltage Range: 2.7 V to 16 V
• Supply Current: 550 μA/Channel
• Input Noise Voltage: 39 nV/√Hz
• Input Bias Current: 1 pA
• Specified Temperature Range:
• Commercial Grade: 0°C to 70°C
• Industrial Grade: -40°C to 125°C
• Ultrasmall Packaging:
• 5-Pin SOT-23 (TLV271)
• 8-Pin MSOP (TLV272)
• Ideal Upgrade for TLC72x Family
