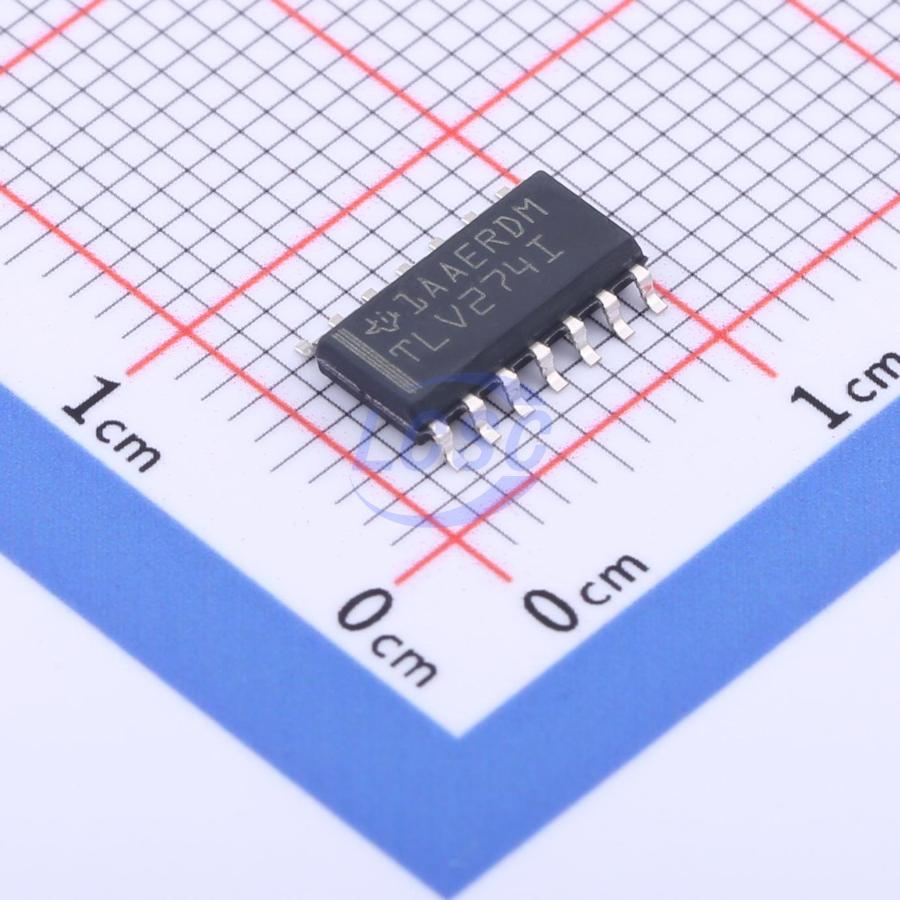

TLV274IDR

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Output SOIC-14

SOIC-14ROHS3 CompliantActive

TLV27x series 550 μA/channel, 3 MHz, rail-to-rail output operational amplifiers

Manufacturer: TI
Manufacturer part #: TLV274IDR
Store part #: C2060906
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,001 in stock

#C2060906

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹62.51	₹62.51
10+	₹49.06	₹490.60
30+	₹43.20	₹1,296.00
100+	₹35.81	₹3,581.00
500+	₹32.56	₹16,280.00
1,000+	₹30.61	₹30,610.00

Quantity (min 1)

1 × ₹62.51

₹62.51

excl. GST

₹73.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLV274IDR

₹62.51 for 1 + GST

Specifications

Output Current: 13mA
Number of Channels: 4
Vos - Input Offset Voltage: 500uV
Slew Rate: 2.4V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 62dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 550uA
Gain Bandwidth Product: 3MHz
Input Voltage Noise Density: 39nV/√Hz@10kHz
Dual Supply: -8V~-1.35V;1.35V~8V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~16V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.34 g

Overview

Rail-to-rail output High bandwidth: 3 MHz High slew rate: 2.4 V/µs Supply voltage range: 2.7 V to 16 V Supply current: 550 µA per channel Input noise voltage: 39 nV/√Hz Input bias current: 1 pA Rated temperature range: – Commercial grade: 0°C to 70°C – Industrial grade: -40°C to 125°C Ultra-small packages: – 5-pin SOT-23 (TLV271) – 8-pin MSOP (TLV272) Ideal upgrade for the TLC72x series

Applications

Electric bicycles
Power banks
Smoke detectors
Solar inverters
Low-power motor control
Battery-powered instruments
Building automation

Key features

Rail-to-rail output
High bandwidth: 3MHz
High slew rate: 2.4V/µs
Supply voltage range: 2.7V to 16V
Supply current: 550µA/channel
Input noise voltage: 39nV/√Hz
Input bias current: 1pA
Rated temperature range:
Commercial grade: 0°C to 70°C
Industrial grade: -40°C to 125°C
Ultra-compact package:
5-pin SOT-23 (TLV271)
8-pin MSOP (TLV272)
Ideal upgrade for TLC72x series
